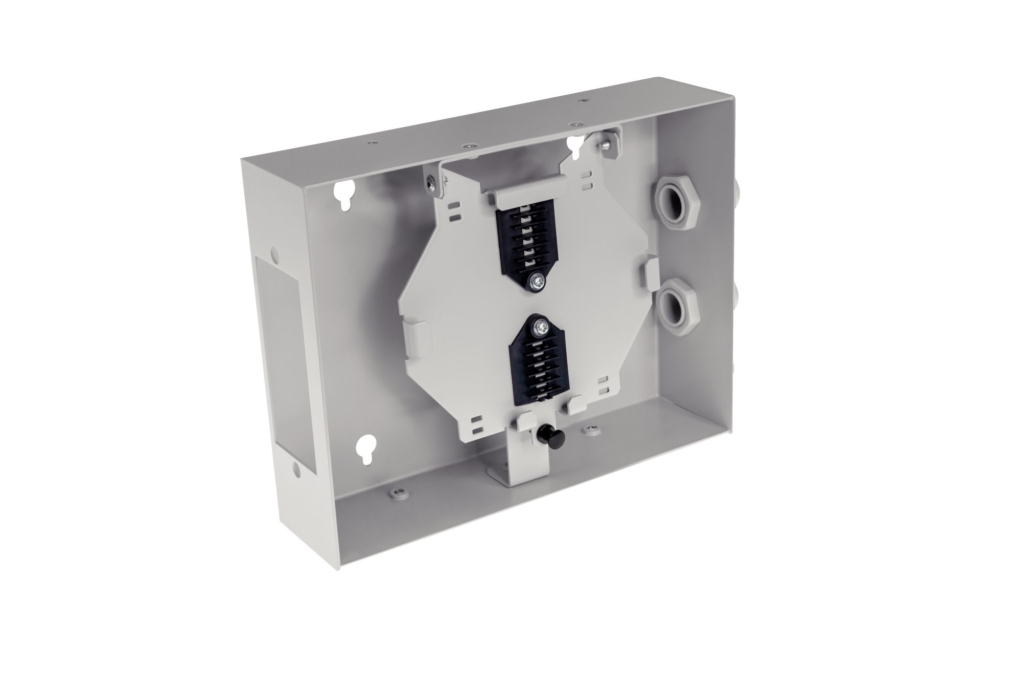

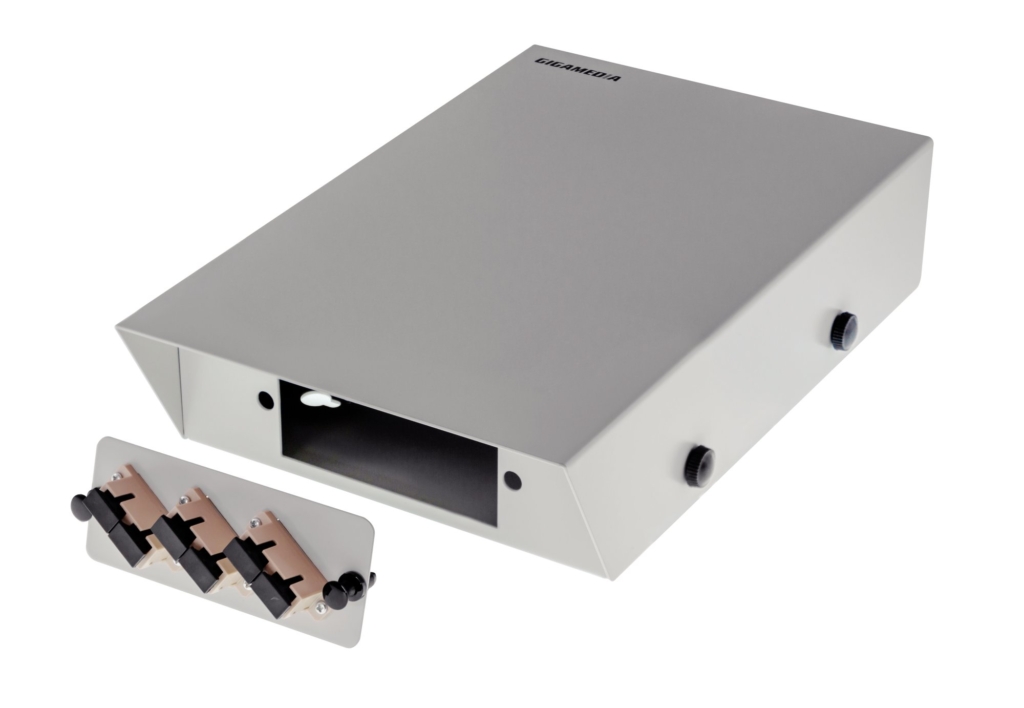

GGM BOXOPTIC2
6-8 FO wall mount metal box, for SC/ST/LC/FC adapters + splice tray
The BOXOPTIC wall panel is an ideal, economic solution for installations up to 12 fibre optics (LC duplex). It offers the possibility of integrating the most used connectors on the fibre optic network depending on the module selected. This panel is intended for indoor use and is fixed directly to a wall or panel.
Read more
The BOXOPTIC wall panel is an ideal, economic solution for installations up to 12 fibre optics (LC duplex). It offers the possibility of integrating the most used connectors on the fibre optic network depending on the module selected. This panel is intended for indoor use and is fixed directly to a wall or panel.
Product features
| RAL | 7035 |
|---|---|
| Dual function | Direct connection through fusion splices or adapters (4, 12 or 24 fibers) |
| Compliant adapters | SC simplex or LC duplex |
Article features
| Capacity | 6 to 12 FO |
|---|---|
| Cable entries | 2 x rear cable entries |
| Cables Inputs/Outputs | 2 entries at the back |
| Locking system | By screws |
| Color | Grey |
| Included | Spooling clips & PG13,5 cable glands |
| Accepts modular plates | to be loaded with SC, ST or LC adapters |
| Splice tray | Included |
| Weight (kg) | 1.31 |
ETIM 9 features
| Fibre count | 8 |
|---|---|
| Connection method | Fusion splice |
| Material | Metal |
| Separated compartments | No |
| Lockable | No |
| IP protection | IP20 |
