GGM 123COF8B

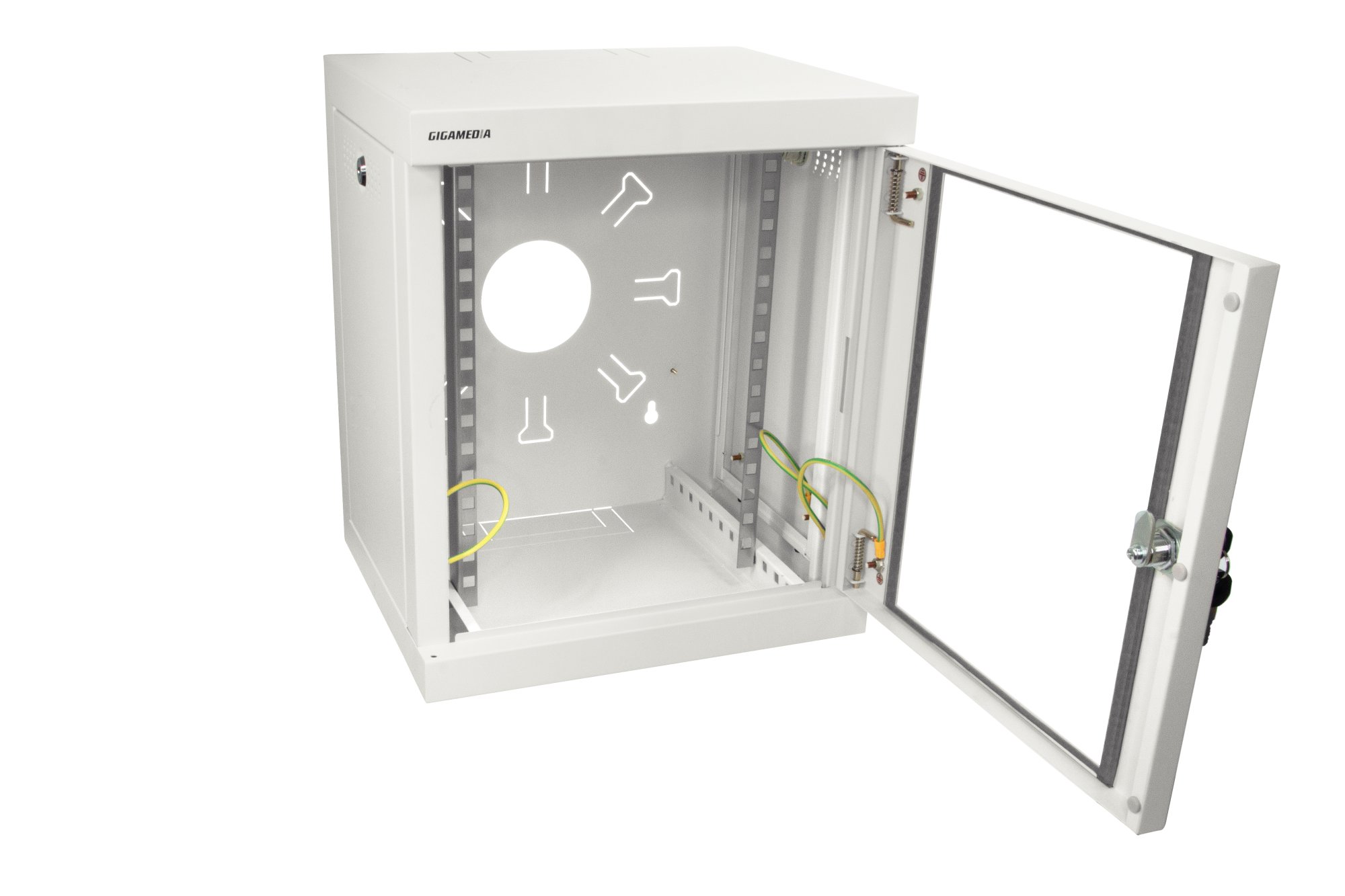

10″ Wallmount cabinet 123 CONNECT ACCESS 8U 300 mm depth – White

Taking up less space that a 19″ cabinet, the 123 CONNECT has been specially designed to integrate in restricted surroundings. Full access inside the cabinet. Opening door and side panels for 180° access. The openings are reversible and easily removed, without tools, to facilitate cabling. Integrated cable management Pre-cut cable entries (top and bottom) 8 supports in the bottom of the cabinet for spooling and supporting cables using Velcro collars. The 10″ uprights allow to tidy and support the cords using Velcro collars. Accessories fixed by clips. Rapid and easy (no tools necessary).

Type	Side access
Frame	Steel, mechanically welded
Mounting profiles	2 mounting profiles 10″ adjustable in depth (zinc-plated steel)
Front door	Reversible securit glass door with side profiles, can be opened up to 180°, locked by using key lock
Side panels	Removable for easier access, locked by using key lock
Cable entries	On the top and on the bottom
Ventilation	Ventilation openings
Useful height (mm)	440
Width (mm)	360
Depth (mm)	300
Capacity	8 modules
RAL	9010
Protection (IP)	20
Earthing kit included	Yes

ETIM features

Mounting level	Front side
Model	With permanent frame
Type of profile rail	L-shape
Number of doors	1
Type of ventilation	Passive
Width	360 mm
Height	439 mm
Depth	300 mm
Modular spacing	254 mm (10 inch)
Number of height units	8
Max. load capacity	5 kg
With roof plate	Yes
With earthing	Yes
With front door	Yes
With sidewall	Yes
Demountable	No
Material	Steel
Surface finishing	Powder coating
Colour	White
RAL-number	9010
Degree of protection (IP)	IP20
