Product features
| Type | 3 parts |
|---|---|
| Frame | Steel, mechanically welded |
| Mounting profiles | Two 19″ mounting profiles adjustable in depth (zinc plated) |
| Front door | Reversible securit glass door with side profiles, can be opened up to 180°, locked by using key lock (N°333) |
| Cable entries | On the top and on the bottom |
| Ventilation | Ventilation openings |
| Width (mm) | 600 |
| Depth (mm) | 650 |
| RAL | 7035 |
| Protection (IP) | 20 |
| Load capacity | 60 |
Article features
| Capacity (U) | 9 |
|---|---|
| Height (mm) | 500 |
ETIM 9 features
| Mounting level | Front side |
|---|---|
| Model | With permanent frame |
| Type of profile rail | L-shaped |
| Number of doors | 1 |
| Type of ventilation | Passive |
| Width | 600 mm |
| Height | 500 mm |
| Depth | 650 mm |
| Modular spacing | 482.6 mm (19 inch) |
| Height (U) | 9 |
| Max. load capacity | 60 kg |
| With roof plate | Yes |
| With earthing | No |
| With front door | Yes |
| With sidewall | No |
| Demountable | No |
| Material | Steel |
| Surface finishing | Powder coating |
| Colour | Grey |
| IP protection | IP20 |
For further information
Over 7000
part numbers
Exclusively distributed
by Rexel
Over 100 employees
worldwide
30 years of expertise
at your service
Tailor-made services
for your projects
GGM COF9U3PV10

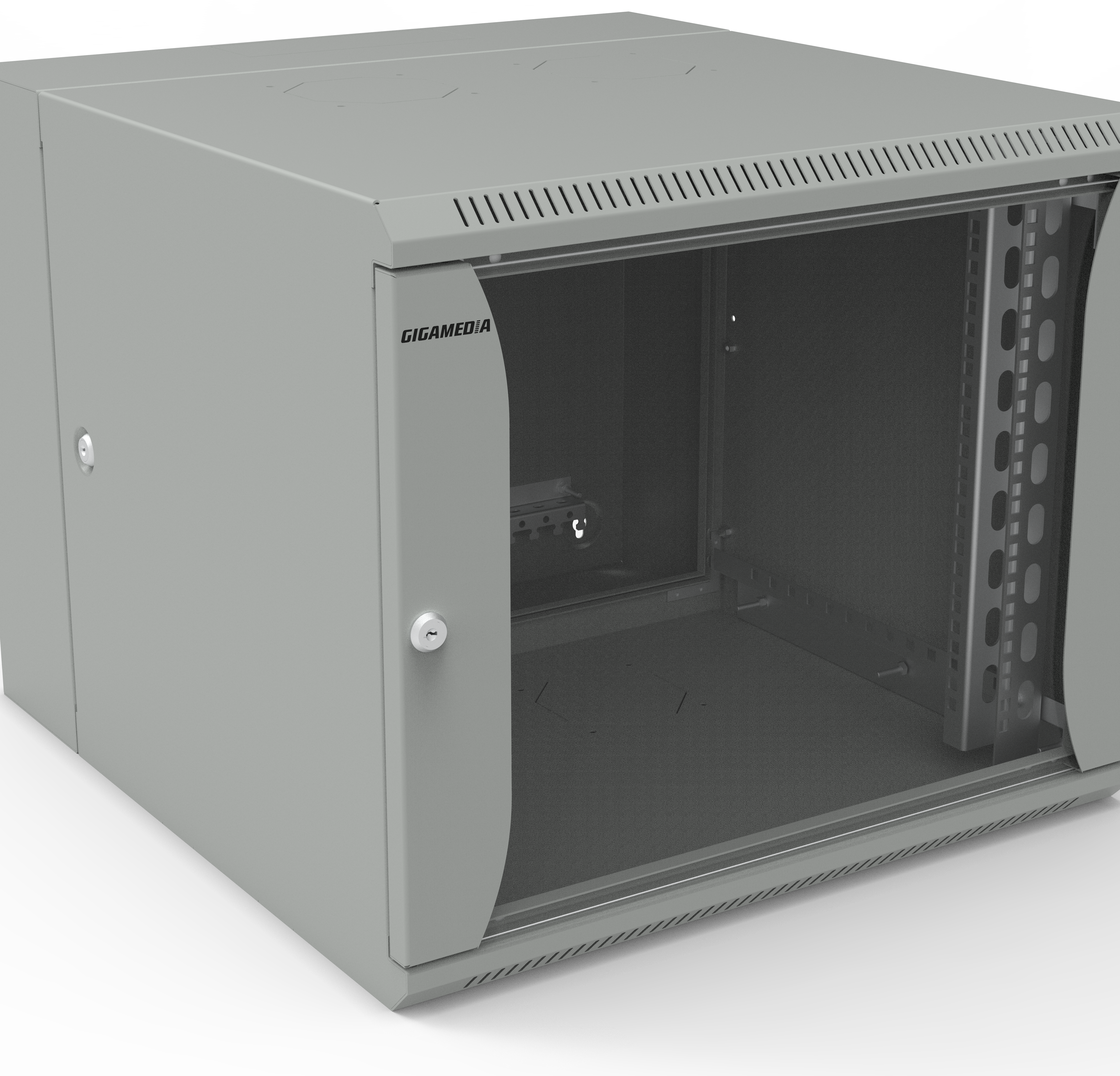

19″ Wallmount cabinet GIGABOX S33 9U 650 mm depth – GREY
