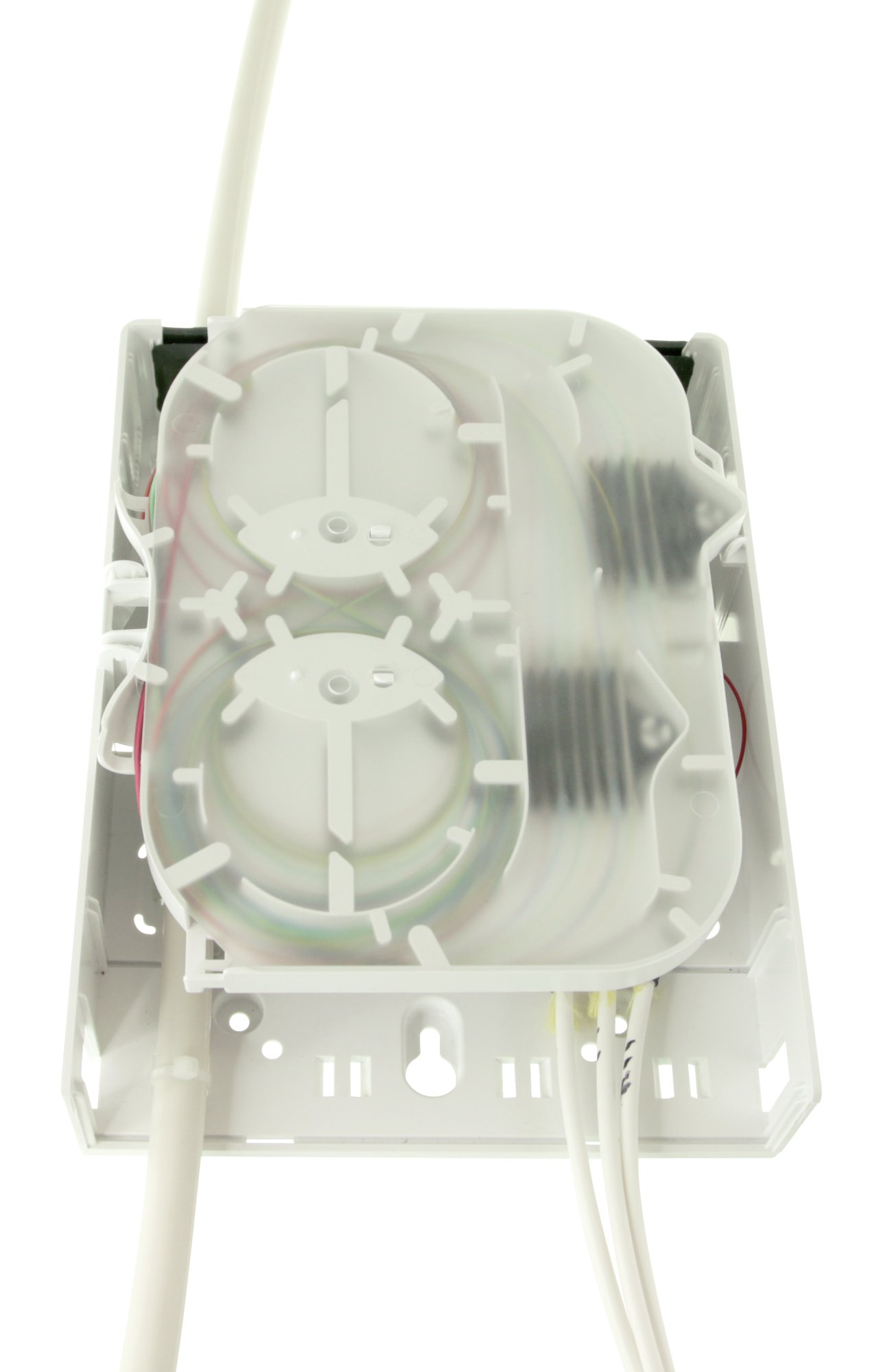

GGM 24FLOORBOX

FTTH floor box for 24 fibers, with integrated fusion splice tray

Dedicated to FTTx applications, the GIGAMEDIA GGM FLOORBOX makes it possible to manage the addition (or connection) of subscriber service cables to the riser cable by fusion splicing or with connectors. Equipped with 4 pre-cut allowing cable routing, junction or derivation, it offers high flexibility when installing fibre optics in residential or building premises. The GGM 24FLOORBOX is designed for horizontal or vertical cable entries and can be used in various configurations. The management of micro-modules coming from the riser cable is carried out by an independent spooling and storage area fixed at the bottom of the box, designed to…

Lire la suite
Acheter chez Rexel
Dedicated to FTTx applications, the GIGAMEDIA GGM FLOORBOX makes it possible to manage the addition (or connection) of subscriber service cables to the riser cable by fusion splicing or with connectors. Equipped with 4 pre-cut allowing cable routing, junction or derivation, it offers high flexibility when installing fibre optics in residential or building premises. The GGM 24FLOORBOX is designed for horizontal or vertical cable entries and can be used in various configurations. The management of micro-modules coming from the riser cable is carried out by an independent spooling and storage area fixed at the bottom of the box, designed to organize and route the fibres properly to the splice trays.

Protection (IP) IP20
Colour White
Capacity 12 to 48 fibers
Supplied accessories Bunny clips, cable ties, rubber plugs, SC/APC adapter plates, wall-mounting accessories
Splice tray supplied
Materials ABS plastic
Mechanical resistance (IK) IK06
Accessories included Two plastic modules for 6 duplex SC/APC adapters, spooling rings, cable ties, 2 x bushings, wall mounting accessories
Cable entries (top and bottom) High, low and side cable entries
Top/bottom entries for drop cables & cords N/A
Color White
Weight (kg) 0.38

ETIM features

Suitable for number of fibres 24
Type of coupler Fusion splice
Material Plastic
Separated compartments Yes
Lockable No
Degree of protection (IP) IP20

Informations produits

Data sheet
DOP/CPR
Mini boîtier d'étage FTTx, capacité 12 fibres optiques, pour épissurage fusion

GGM MINIFLOORBOX
Boitier d'étage FTTH 24 fibres optiques + cassettes d'épissurage fusion

GGM 24FLOORBOX
Boitier d'étage FTTH 48 fibres optiques + cassettes d'épissurage fusion

GGM 48FLOORBOX
FTTH floor box for 48 fibers, with integrated fusion splice tray

GGM 48FLOORBOX
