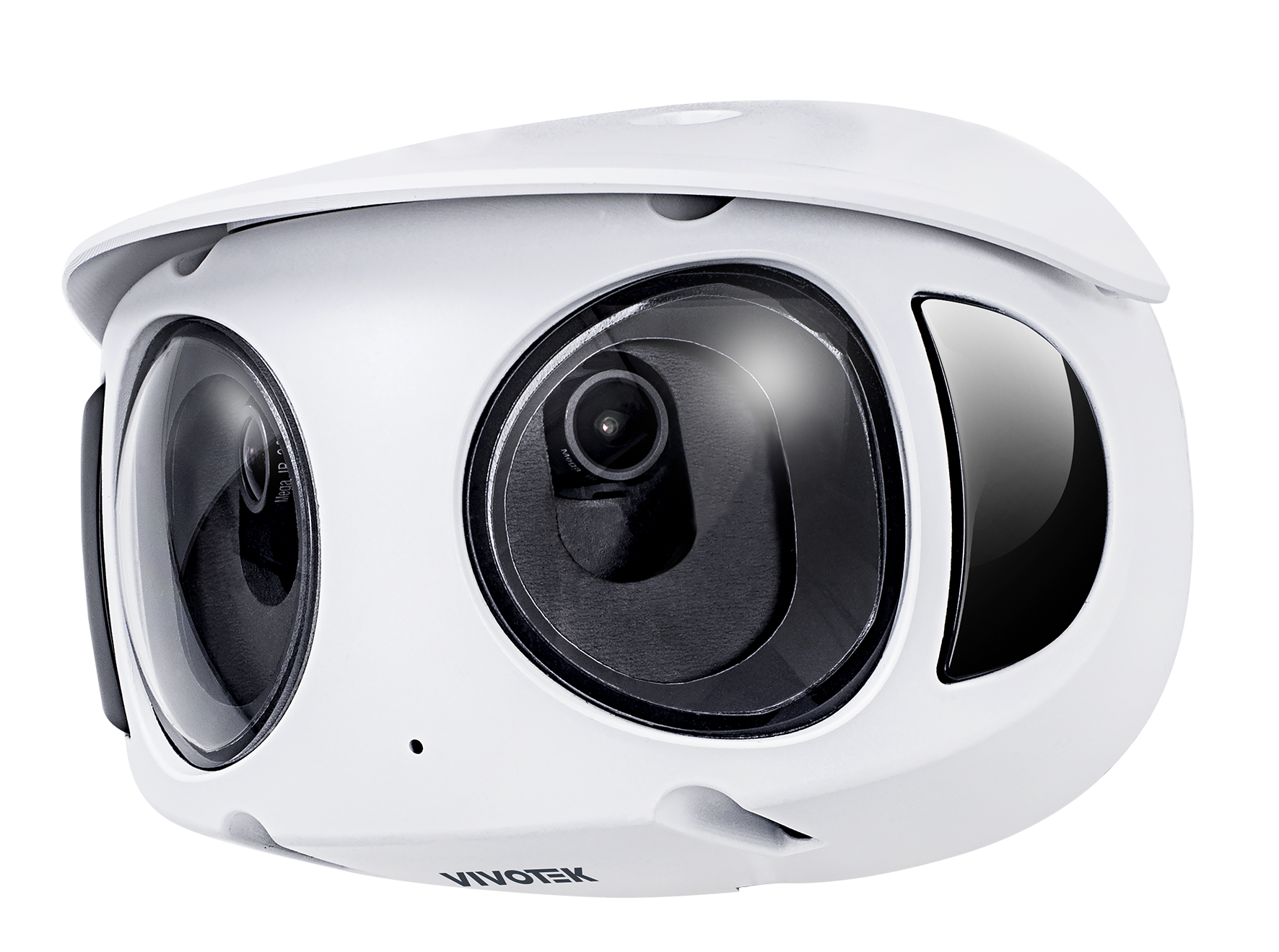

VVK MS9390EHVV2

Multi-Sensor Panoramic Outdoor 2X4MP 180 Degree

8 megapixel resolutionH.265 compression technology180° panoramic view30 fps @ 8MpxVideo alignment for a consistent imageSmart Stream III to optimize bandwidth managementWeatherproof (IP66) and vandalism resistant housing (IK10)IR illuminators up to 20MBuilt-in microphoneSNV (Supreme Night Visibility)3D noise reduction for low-light conditionsIntegrated MicroSD/SDHC/SDXC Card SlotNDAA compliant

8 megapixel resolution
H.265 compression technology
180° panoramic view
30 fps @ 8Mpx
Video alignment for a consistent image
Smart Stream III to optimize bandwidth management
Weatherproof (IP66) and vandalism resistant housing (IK10)
IR illuminators up to 20M
Built-in microphone
SNV (Supreme Night Visibility)
3D noise reduction for low-light conditions
Integrated MicroSD/SDHC/SDXC Card Slot
NDAA compliant

Built in microphone	Yes
Infrared lighting distance (m)	20
IP Protection	IP66
Resolution and number of images / second
Resolution
Powered with Trend Micro IoT Security	Yes
Supreme Night Visibility (SNV)	Yes
Video compression	H.265, H.264 and MJPEG
Viewing angle (°)	180
Vivotek multi-sensors IP Dome Camera	Yes
Wdr (wide dynamic range)
Model	Panoramic
Mounting method	Wall
Scope of application	Universal
Transmission	Twisted Pair
Protocol	TCP/IP
Power over Ethernet (PoE)	802.3 at (PoE+)
Picture system	NTSC
Property picture system	Colour
Focal size	2,8 - 2,8
Colour	White
Wireless	No
Type of interface	None
Number of pixels (Megapixel)	8
With lens	Yes
With IR lamp	Yes
Max. infrared reach	20 m
Vandal proof	Yes
Impact strength	IK10
With video motion detector	Yes
IP protection	IP66
Horizontal field of view	180 - 180
Vertical field of view	50 - 50
Power consumption	20 W
Voltage type	DC
Height	112 mm
Width	165 mm
Depth	97 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
