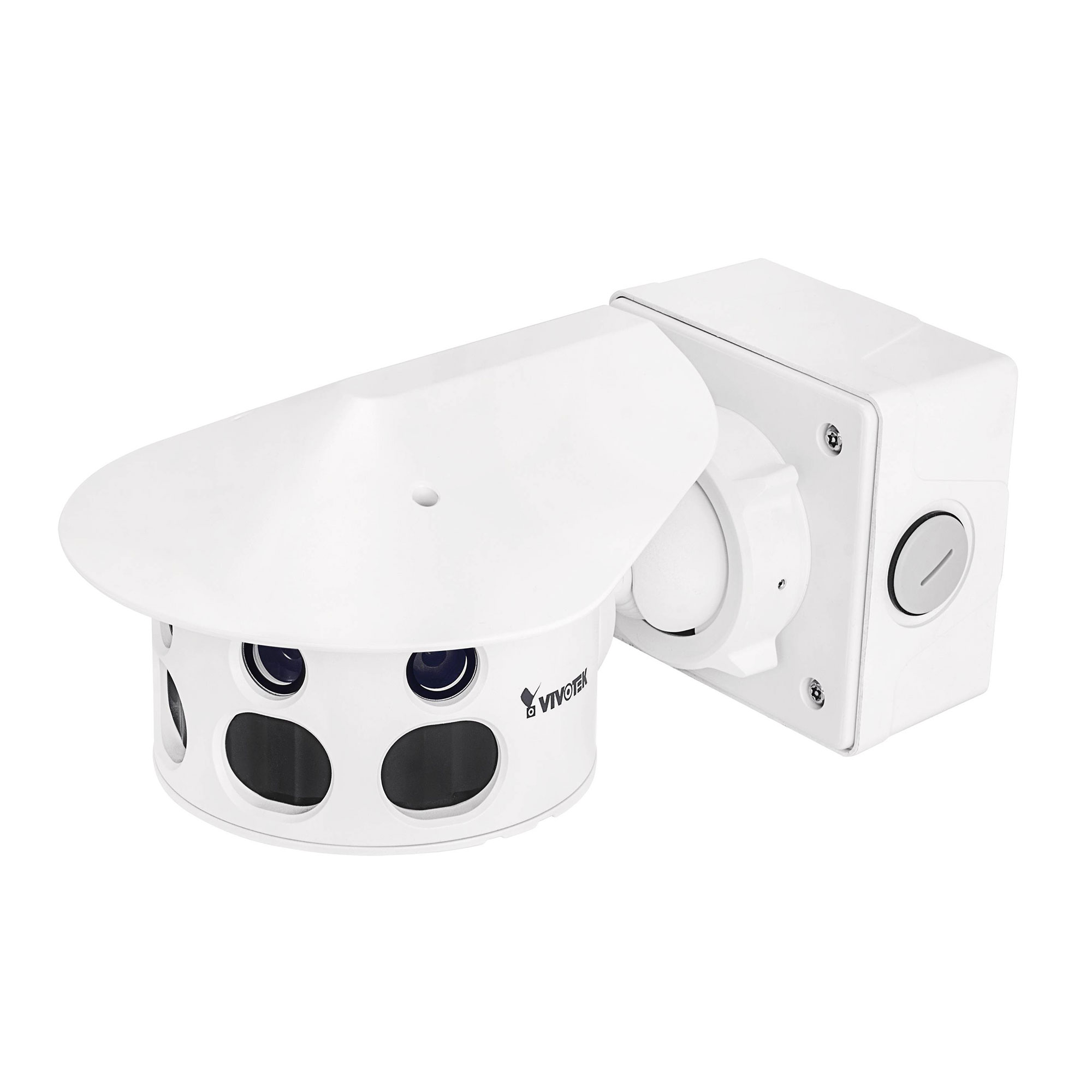

VVK MA9322EHTVL
Outdoor Multi-Sensor IP Camera 20MP – 30M IR, WDR Pro, SNV, IP66, IK10
1. High Quality Unlimited Coverage Featuring four independent 5MP CMOS Sensors with IR illuminators, the MA9322-EHTVL network camera can provide the most flexibility in surveillance monitoring. Each sensor utilizes a 3.7 to 7.7 mm motorized focus lens and 3-axis design along a circular track to enable full 360° coverage. The MA9322-EHTVL is equipped with a removable IR-cut filter and WDR Pro technology, enabling the camera to maintain optimal image quality and unparalleled visibility in high contrast lighting environments. 2. 360° Extreme Low Light Visibility By adding IR illumination up to 30 meters, no matter day or night, light or dark,…
Read more
1. High Quality Unlimited Coverage
Featuring four independent 5MP CMOS Sensors with IR illuminators, the MA9322-EHTVL network camera can provide the most flexibility in surveillance monitoring. Each sensor utilizes a 3.7 to 7.7 mm motorized focus lens and 3-axis design along a circular track to enable full 360° coverage. The MA9322-EHTVL is equipped with a removable IR-cut filter and WDR Pro technology, enabling the camera to maintain optimal image quality and unparalleled visibility in high contrast lighting environments.
2. 360° Extreme Low Light Visibility
By adding IR illumination up to 30 meters, no matter day or night, light or dark, it always provides complete video security. Further, in addition to SNV technology, areas of low light visibility are no longer an issue either.
3. Comprehensive Video Coverage from a Single Mount Point
The MA9322-EHTVL captures every angle for comprehensive video coverage from a single IP address, helping to reduce the amount of cameras needed and saving on installation time and costs.
4. Key Features
Featuring four independent 5MP CMOS Sensors with IR illuminators, the MA9322-EHTVL network camera can provide the most flexibility in surveillance monitoring. Each sensor utilizes a 3.7 to 7.7 mm motorized focus lens and 3-axis design along a circular track to enable full 360° coverage. The MA9322-EHTVL is equipped with a removable IR-cut filter and WDR Pro technology, enabling the camera to maintain optimal image quality and unparalleled visibility in high contrast lighting environments.
2. 360° Extreme Low Light Visibility
By adding IR illumination up to 30 meters, no matter day or night, light or dark, it always provides complete video security. Further, in addition to SNV technology, areas of low light visibility are no longer an issue either.
3. Comprehensive Video Coverage from a Single Mount Point
The MA9322-EHTVL captures every angle for comprehensive video coverage from a single IP address, helping to reduce the amount of cameras needed and saving on installation time and costs.
4. Key Features
- H.265 Compression Technology
- 4x 5MP Independent Sensors, Adjustable Views
- 12 fps @ 2688x1920 per Sensor / 30 fps @ 2560x1440 per Sensor
- WDR Pro (120 dB) for Optimal Image Quality in High Contrast Environments
- SNV (Supreme Night Visibility) for Low Light Conditions
- Built-in IR Illuminators, Effective up to 30 Meters Radius
- Weather-proof IP66-rated, Vandal-proof IK10-rated, NEMA 4X Housing
- Built-in Microphone
| Built in microphone | Yes |
|---|---|
| Infrared lighting distance (m) | 30 |
| IP Protection | IP66 |
| Resolution and number of images / second | |
| Resolution | |
| Powered with Trend Micro IoT Security | Yes |
| Supreme Night Visibility (SNV) | Yes |
| Video compression | H.265, H.264 and MJPEG |
| Viewing angle (°) | 360 |
| Vivotek multi-sensors IP Dome Camera | Yes |
| Wdr (wide dynamic range) | |
| Model | Panoramic |
| Mounting method | Ceiling |
| Scope of application | Universal |
| Transmission | Twisted Pair |
| Protocol | TCP/IP |
| Power over Ethernet (PoE) | 802.3 at (PoE+) |
| Picture system | NTSC |
| Property picture system | Colour |
| Focal size | 3,7 - 7,7 |
| Colour | Black |
| Wireless | No |
| Type of interface | None |
| Number of pixels (Megapixel) | 20 |
| Memory capacity | 4 Go |
| With lens | Yes |
| With IR lamp | Yes |
| Max. infrared reach | 30 m |
| Vandal proof | Yes |
| Impact strength | IK10 |
| With video motion detector | Yes |
| IP protection | IP66 |
| Horizontal field of view | 40,1 - 88,6 |
| Vertical field of view | 28,6 - 61,2 |
| Power consumption | 25 W |
| Supply voltage | 24,0000 |
| Voltage type | AC |
| Diameter | 275 mm |
| Height | 118 mm |
| Width | 275 mm |
| Depth | 275 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
