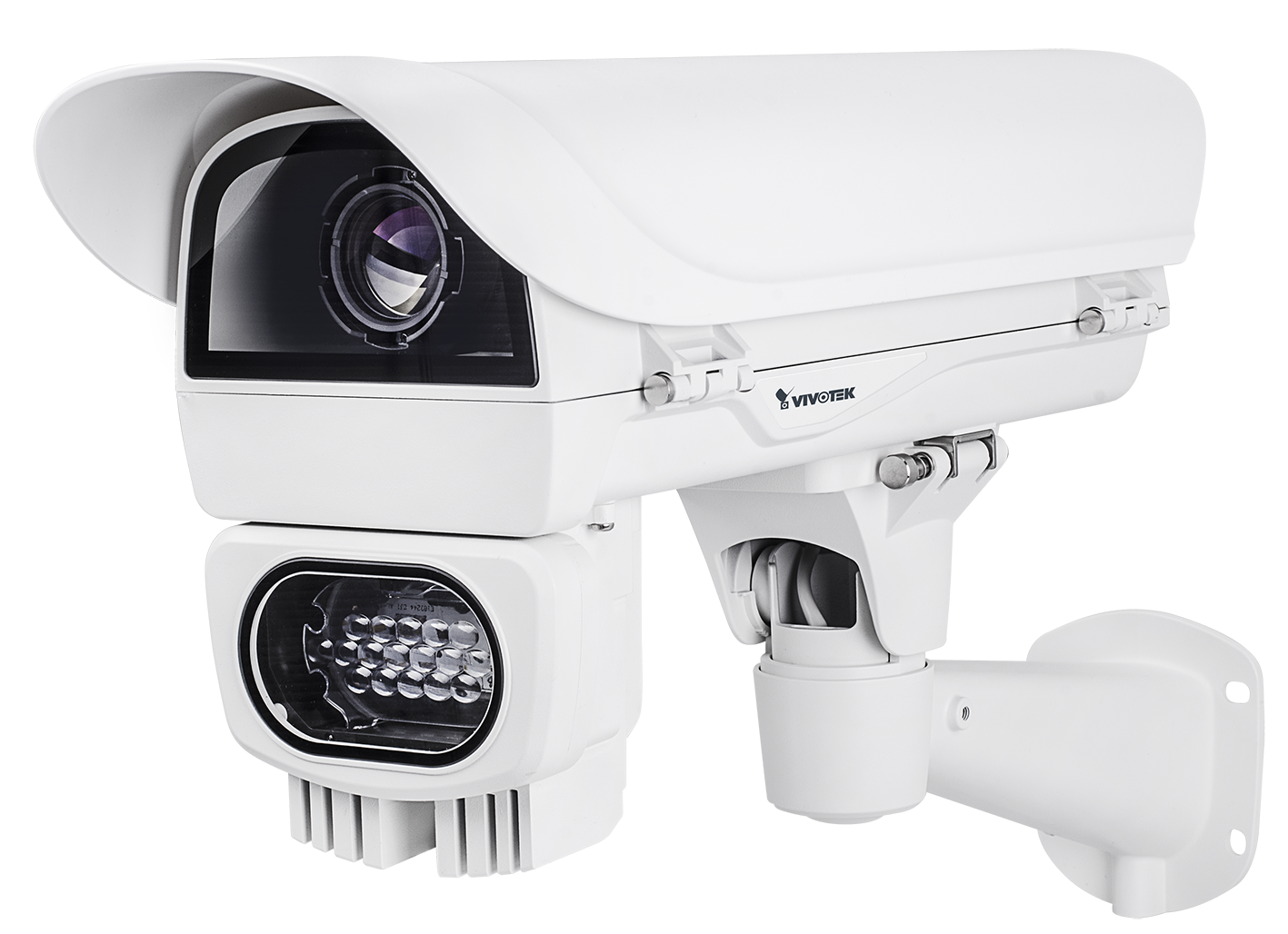

VVK IP9165LPRV2STR950

LPR Kit, 60mph(90kmph), Dual Lanes, 20M,IP68, IK10, -20~60°C, 1/1000sec, 1080P,

VIVOTEK's IP9165-LPC is a professional H.265 Full HD network camera offering specialized solutions for license plate capture with a unique headlight filter design for traffic monitoring. Featuring dedicated LPC firmware and a compatible lens, the IP9165-LPC offers three different scene modes: LPC-Parking, LPC-Street and LPC-Highway to match different traffic applications in which cars move at different speeds. With a proper selection of external infrared illuminators, the IP9165-LPC camera will be ideal for 24/7 license plate capture, producing highly detailed polished images for reliable license plate recognition of cars traveling up to speeds of 110 mph (180 km/h).

Equipped with a P-iris lens and headlight filter design, the camera is capable of capturing clear, high-quality video with a resolution of 1,920 x 1,080 at a speed of 60fps in all conditions. In addition, by using VIVOTEK's WDR Pro II, 3DNR and SNV II technologies, whether in high-contrast or low-light environments, the camera will ensure clear image quality for license plate capture or traffic monitoring. Finally, VIVOTEK's RBF (Remote Back Focus) system for easy focusing settings and value-added features such as DIS and i-CS lens support ensure image stability and intelligent and accurate focus, and in conjunction make the IP9165-LPC the perfect LPR solution for any application, in all conditions.

Dis (digital image stabilization)	No
Max capture speed (km/h)
Mount
Resolution and number of images / second
Powered with Trend Micro IoT Security
Supreme Night Visibility (SNV)	No
Video compression
Vivotek LPC IP Box Camera
Wdr (wide dynamic range)
Model	Standard (Fixed)
Mounting method	Wall
Scope of application	Outside
Transmission	Twisted Pair
Protocol	TCP/IP
Power over Ethernet (PoE)	802.3 af (PoE)
Picture system	PAL
Property picture system	Colour
Focal size	9 - 50
Colour	White
Wireless	No
Type of interface	None
Number of pixels (Megapixel)	2
With lens	Yes
Max. infrared reach	50 m
Number of digital inputs	2
Number of digital outputs	2
Number of audio inputs	1
Number of audio outputs	1
Vandal proof	Yes
Impact strength	IK10
With video motion detector	Yes
IP protection	IP68
Horizontal field of view	8,3 - 42,8
Vertical field of view	4,7 - 24,3
Power consumption	10 W
Supply voltage	12 - 24
Voltage type	AC/DC
Height	84 mm
Width	78 mm
Depth	263 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
