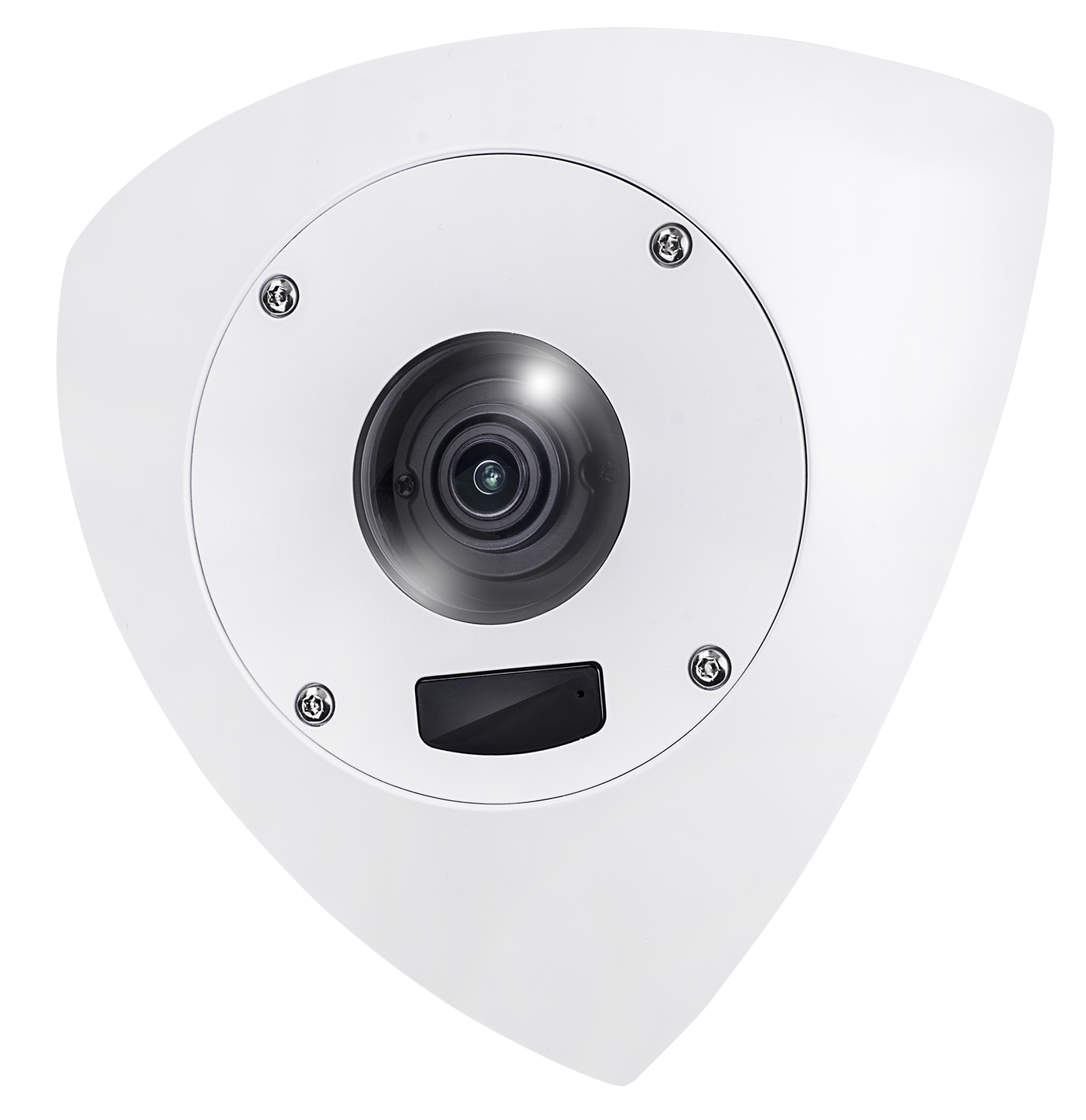

VVK CD9381HNTV
Corner Dome Camera – 5MP, 2.8~8mm, 10M 940nm IR, WDR Pro, SNV, IK10+
VIVOTEK's CD9381-HNTV is a vandal-proof network camera specifically designed for prisons and correctional facilities. With up to 30 fps at 5-Megapixel resolution, 940nm IR illuminators, two-way audio, and available vari-focal lens, the CD9381-HNTV is the most feature rich prison cell surveillance camera available today. The CD9381-HNTV has an anti-ligature design to limit the possibilities of self-inflicted harm or suicide, a required feature for environments like prisons, holding cells, psychiatric wards, mental hospitals, and correctional institutions. Along with having an anti-ligature design, the CD9381-HNTV is designed to cover a wide area. Designed to be installed in the upper corner of a…
Read more
VIVOTEK's CD9381-HNTV is a vandal-proof network camera specifically designed for prisons and correctional facilities. With up to 30 fps at 5-Megapixel resolution, 940nm IR illuminators, two-way audio, and available vari-focal lens, the CD9381-HNTV is the most feature rich prison cell surveillance camera available today.
The CD9381-HNTV has an anti-ligature design to limit the possibilities of self-inflicted harm or suicide, a required feature for environments like prisons, holding cells, psychiatric wards, mental hospitals, and correctional institutions.
Along with having an anti-ligature design, the CD9381-HNTV is designed to cover a wide area. Designed to be installed in the upper corner of a cell, the CD9381-HNTV has both a wide angle horizontal FOV (95°~41°) and vertical FOV (69°~31°) enabling full coverage of a rectangular cell. WDR Pro is included enabling better image quality where variable lighting is a concern as well as SNV technology to produce high-quality full-color surveillance under low-light conditions. These combined features, along with a built-in microphone, enable correctional officers, mental health evaluators, and prison guards to monitor all the activities of those under their supervision.
The CD9381-HNTV has an anti-ligature design to limit the possibilities of self-inflicted harm or suicide, a required feature for environments like prisons, holding cells, psychiatric wards, mental hospitals, and correctional institutions.
Along with having an anti-ligature design, the CD9381-HNTV is designed to cover a wide area. Designed to be installed in the upper corner of a cell, the CD9381-HNTV has both a wide angle horizontal FOV (95°~41°) and vertical FOV (69°~31°) enabling full coverage of a rectangular cell. WDR Pro is included enabling better image quality where variable lighting is a concern as well as SNV technology to produce high-quality full-color surveillance under low-light conditions. These combined features, along with a built-in microphone, enable correctional officers, mental health evaluators, and prison guards to monitor all the activities of those under their supervision.
| Produit | |
|---|---|
| Model | Other |
| Mounting method | Other |
| Scope of application | Universal |
| Transmission | Twisted Pair |
| Protocol | TCP/IP |
| Power over Ethernet (PoE) | 802.3 af (PoE) |
| Picture system | NTSC |
| Property picture system | Colour |
| Focal size | 2,8 - 8 |
| Colour | White |
| Wireless | No |
| Type of interface | None |
| Number of pixels (Megapixel) | 5 |
| Memory capacity | 2 Go |
| With lens | Yes |
| With IR lamp | Yes |
| Max. infrared reach | 10 m |
| Number of digital inputs | 1 |
| Number of digital outputs | 1 |
| Number of audio inputs | 1 |
| Number of audio outputs | 1 |
| Vandal proof | Yes |
| Impact strength | > IK10 |
| With video motion detector | Yes |
| IP protection | IP67 |
| Horizontal field of view | 41 - 95 |
| Vertical field of view | 31 - 69 |
| Power consumption | 10.36 W |
| Supply voltage | 12 - 24 |
| Voltage type | AC/DC |
| Height | 221 mm |
| Width | 226 mm |
| Depth | 112 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
