UNW IPC544SEDKI0
Prime box camera Resolution 4MP DC&P-IRIS 120 dB WDR

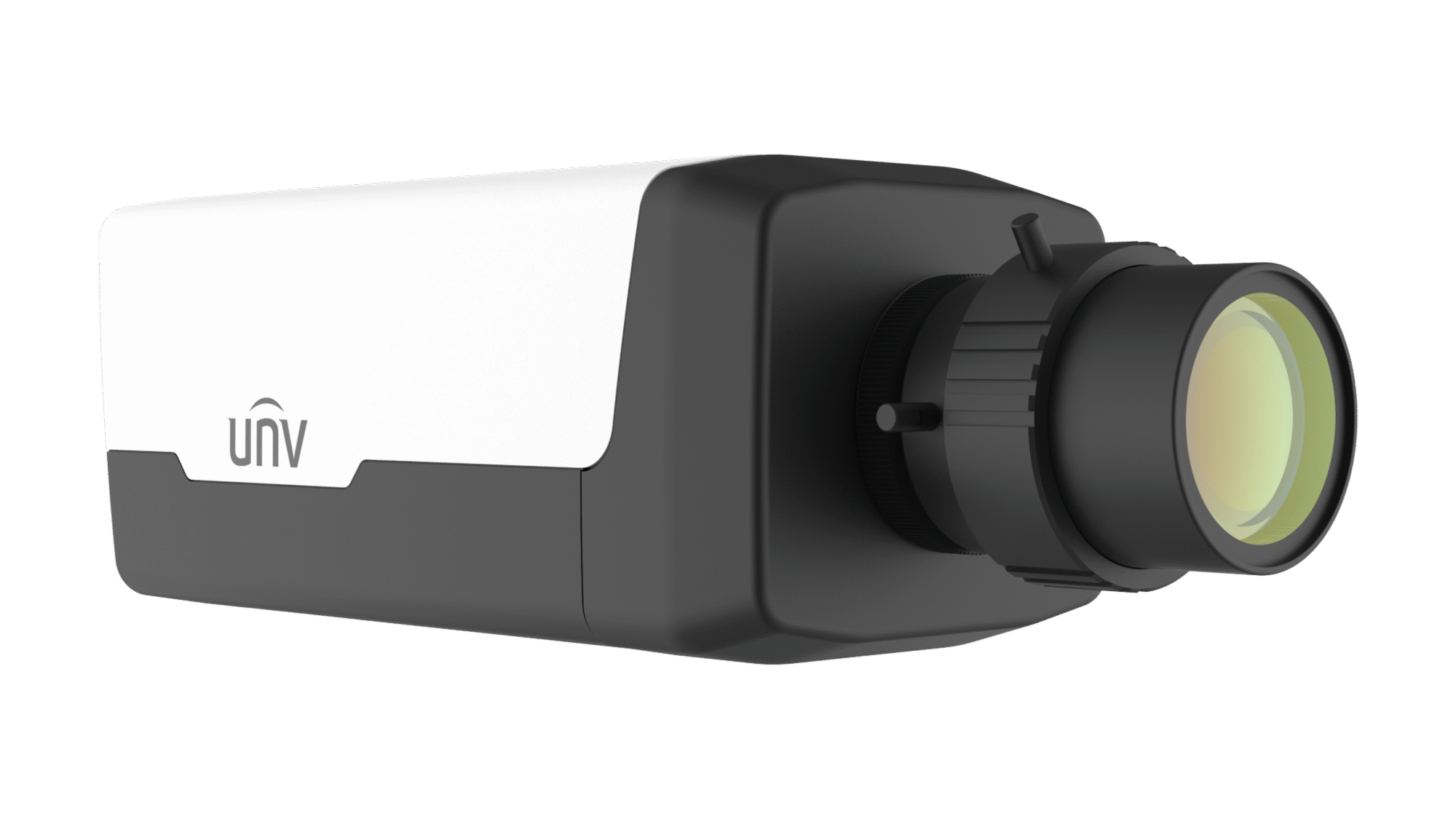

This 4MP LightHunter Box Network Camera delivers high-quality imaging with a 1/1.8" CMOS sensor, supporting 2688x1520 resolution at 30fps in the main stream. It features Ultra 265, H.265, H.264, and MJPEG compression formats with triple streams. The camera offers smart intrusion prevention with false alarm filtering, including Cross Line, Intrusion, Enter Area, and Leave Area detection. It supports face capture with automatic selection of the best snapshots, and people counting with people flow counting and crowd density monitoring, making it suitable for various statistical scenarios. With LightHunter technology, the camera ensures ultra-high image quality in low-light environments, while the 120dB…
Read more
This 4MP LightHunter Box Network Camera delivers high-quality imaging with a 1/1.8" CMOS sensor, supporting 2688x1520 resolution at 30fps in the main stream. It features Ultra 265, H.265, H.264, and MJPEG compression formats with triple streams. The camera offers smart intrusion prevention with false alarm filtering, including Cross Line, Intrusion, Enter Area, and Leave Area detection. It supports face capture with automatic selection of the best snapshots, and people counting with people flow counting and crowd density monitoring, making it suitable for various statistical scenarios. With LightHunter technology, the camera ensures ultra-high image quality in low-light environments, while the 120dB optical WDR technology provides clear images in high-contrast scenes. The camera supports DC12V, AC24V, or PoE (IEEE 802.3af) power supply with a wide voltage range of ±25%. It is equipped with audio (1 in/1 out) and alarm (2 in/1 out) capabilities.
| Model | Standard (Fixed) |
|---|---|
| Mounting method | Wall/ceiling |
| Scope of application | Universal |
| Protocol | TCP/IP |
| Power over Ethernet (PoE) | 802.3 af (PoE) |
| Picture system | PAL |
| Property picture system | Colour |
| Colour | White |
| Wireless | No |
| Type of interface | None |
| Number of pixels (Megapixel) | 5 |
| With lens | No |
| With IR lamp | No |
| Number of digital inputs | 2 |
| Number of digital outputs | 1 |
| Number of audio inputs | 1 |
| Number of audio outputs | 1 |
| Vandal proof | No |
| Impact strength | None |
| With video motion detector | Yes |
| IP protection | IP20 |
| Power consumption | 8 W |
| Voltage type | DC |
| Height | 71 mm |
| Width | 65 mm |
| Depth | 152 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| ONVIF-compliant | Yes |
