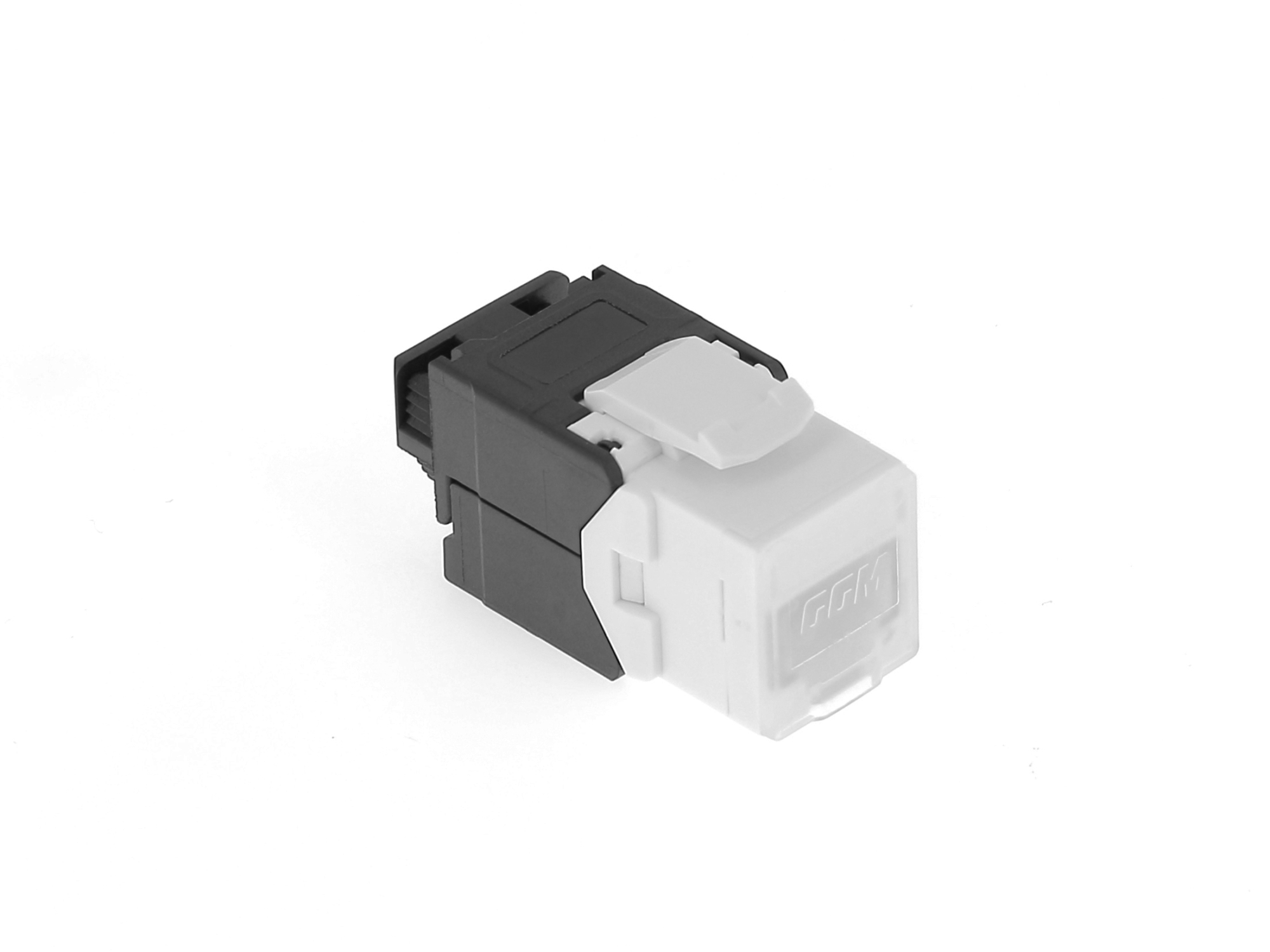

GGM TRJUC6A10G

CAT6A UTP RJ45 JACK Class EA 10G ISO 11801 4PPOE IP20 no specific tool required

GIGAMEDIA Category 6A UTP unscreened Keystone jacks are designed to meet the need of most today’s applications, up to 10Gbits/s. The performance is 3P component certified and unique contact design rated for a minimum of 750 plug insertions will offer 4PPOE application reliability. No specific tool required, the toolless wiring will offer accurate terminations. These connectors are slim profile to offer high density applications with removable shutter to protect free jacks from dust and rear cable clamp to secure the connection. Third party Permanent link certified (FORCE) with GIGAMEDIA CAT6A UUTP cable.

GIGAMEDIA Category 6A UTP unscreened Keystone jacks are designed to meet the need of most today’s applications, up to 10Gbits/s. The performance is 3P component certified and unique contact design rated for a minimum of 750 plug insertions will offer 4PPOE application reliability. No specific tool required, the toolless wiring will offer accurate terminations.
These connectors are slim profile to offer high density applications with removable shutter to protect free jacks from dust and rear cable clamp to secure the connection.
Third party Permanent link certified (FORCE) with GIGAMEDIA CAT6A UUTP cable.

Color code	T568A/B
Number of contacts	8
Connector type	RJ45
Applications	IEEE802.3 : 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T IEEE 802.3af/at/bt (PoE/PoE+/4PPoE)
Core shield	Unshileded
Category	6A
Standards	ANSI/TIA-568.2-D ; EN 50173 ; ISO/IEC 11801
Connection mode	Toolless
Pins quality	50 micron gold contacts
Jauge_accepted_code_article	23/26
Dust cover	Yes
Packaging	By piece
Model	Bus (jack)
Shielded	No
Connection type	Insulation displacement connector
Specific tooling	No
Adapted to round cables	Yes
Adapted to flat cables	No
Adapted to stranded cables	Yes
Adapted to solid cables	Yes
Colour	White
Transparent	No
AWG range	26-23
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No
