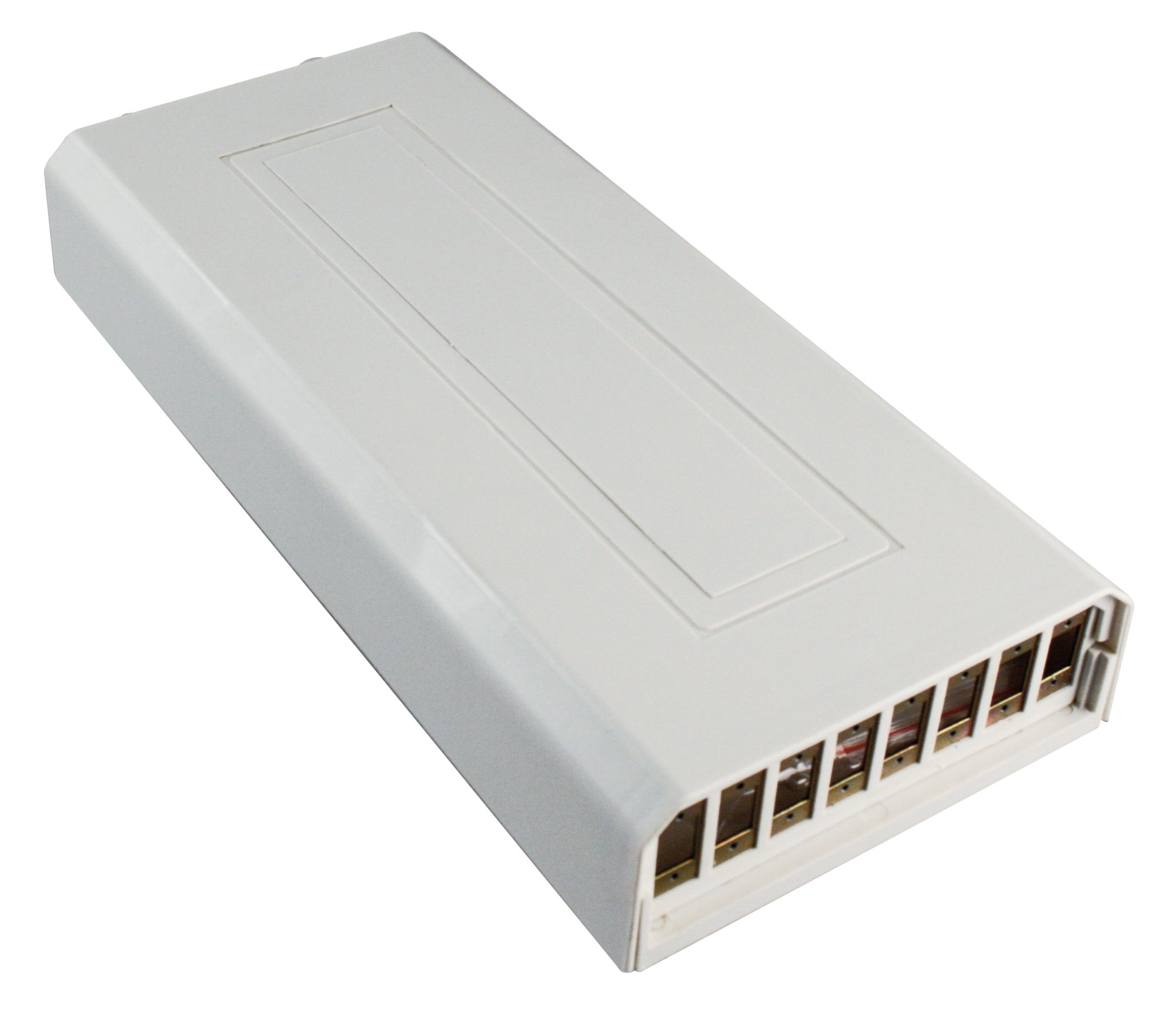

GGM TERMINALBOX
Plastic wall-mount box for 8-12 fibers with two empty modules (8 ST or 12 SC sx)
Intended for indoor use, the TERMINALBOX is an economical solution for fibre optic installations up to 12 connections. The box is delivered with 2 modules to be equipped. 12 ST simplex and 8 SC simplex.
Read more
Intended for indoor use, the TERMINALBOX is an economical solution for fibre optic installations up to 12 connections. The box is delivered with 2 modules to be equipped. 12 ST simplex and 8 SC simplex.
| RAL | 7035 |
|---|---|
| Dual function | Direct connection through fusion splices or adapters (4, 12 or 24 fibers) |
| Compliant adapters | SC simplex or LC duplex |
| Capacity | 8 to 12 FO |
| Cable entries | X 2 (top) |
| Cables Inputs/Outputs | N/A |
| Locking system | None |
| Color | Beige |
| Included | 2 front panels for 12 st connections and 8 sc simplex connections, 2 pg 13.5 cable glands |
| Accepts modular plates | ST or SC simplex/LC duplex, supplied |
| Splice tray | No |
| Weight (kg) | 0.49 |
| Fibre count | 12 |
| Connection method | Fusion splice |
| Material | Metal |
| Separated compartments | No |
| Lockable | No |
| IP protection | IP20 |
