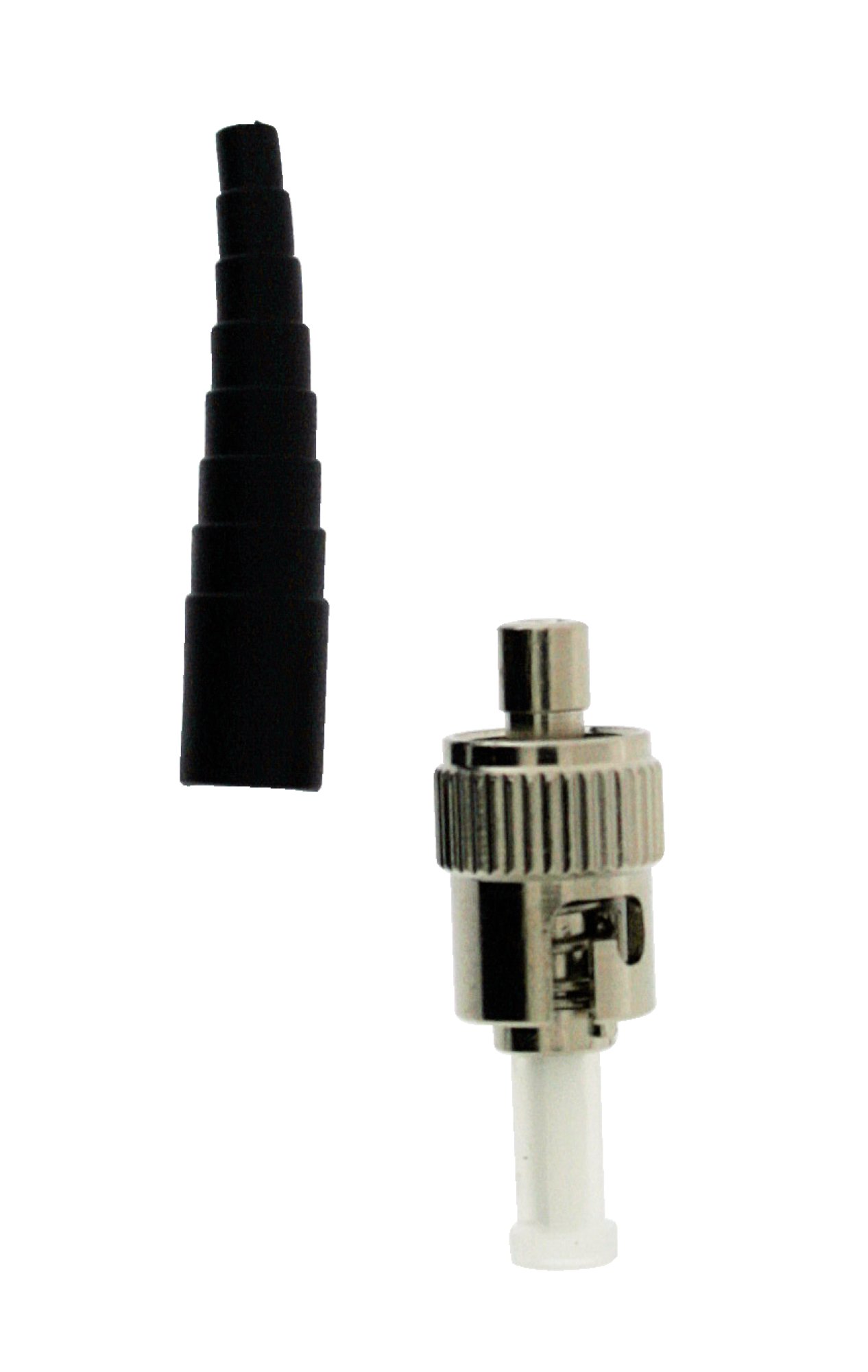

GGM STSM9
Epoxy singlemode ST heat-cure connector 2,5mm with 900µm blue colour boot
ST multimode optical connectors for epoxy type mounting. For 900 µm sheathed fibre cables.
Read more
ST multimode optical connectors for epoxy type mounting. For 900 µm sheathed fibre cables.
| Connector type | Epoxy connectors |
|---|---|
| Ferule | Ceramic |
| Operating temperature | From -40°C to +85°C |
| Return loss (db) | 55 |
| Connector body | Plastic |
| Typical Insertion Loss (dB) | 0.2 |
| Boot | 900 µm |
| Typical Attenuation (dB) | 0.2 |
| Model | Connector |
| Adapted type of fibre | Single mode |
| Connection type | Glue |
| Ferrule material | Ceramics |
| Colour | Other |
Product information
Epoxy multimode LC heat-cure connector 1,25mm with 900µm beige colour boot
GGM LCMM9SPLEX
Epoxy multimode LC heat-cure connector 1,25mm with 3mm beige colour boot
GGM LCMM3SPLEX
Epoxy singlemode LC heat-cure connector 1,25mm with 900µm blue colour boot
GGM LCSM9SPLEX
Epoxy singlemode LC heat-cure connector 1,25mm with 3mm blue colour boot
GGM LCSM3SPLEX
Epoxy multimode SC heat-cure connector 2,5mm with 900µm beige colour boot
GGM SCMM9
Epoxy multimode SC heat-cure connector 2,5mm with 3mm beige colour boot
GGM SCMM3
Epoxy singlemode SC heat-cure connector 2,5mm with 900µm blue colour boot
GGM SCSM9
Epoxy singlemode SC heat-cure connector 2,5mm with 3mm blue colour boot
GGM SCSM3
Epoxy multimode ST heat-cure connector 2,5mm with 900µm beige colour boot
GGM STMM9
Epoxy multimode ST heat-cure connector 2,5mm with 3mm beige colour boot
GGM STMM3
Epoxy singlemode ST heat-cure connector 2,5mm with 3mm blue colour boot
GGM STSM3
