GGM SPLITBF1X2
Mini PLC splitter G657A2 9/125 singlemode 1 x 2 fibers with 250µm bare fibers
The PLC mini splitters allow the fibre optic signal to be sent back to up to 32 fibres They are delivered bare, in 250 μm.
Read more
The PLC mini splitters allow the fibre optic signal to be sent back to up to 32 fibres
They are delivered bare, in 250 μm.
Product features
| Wavelength (nm) | 1260-1650nm |
|---|---|
| Fiber type | G657A singlemode with small bending radius |
| Fiber length (m) | 1 |
Article features
| Jacket | 250 µm |
|---|
ETIM 9 features
| Type | 1x2 |
|---|---|
| Operating wavelength | 1260 - 1650 |
| Mounting method | Splice cassette |
| Connector type input | Open end |
| Connector type output | Open end |
| Max. insertion loss | 4.1 dB |
| Min. return loss | 55 dB |
| Max. uniformity loss | 0.8 dB |
| Max. polarisation dependent loss (PDL) | 0.3 dB |
| Min. directivity | 55 dB |
| Operating temperature | -40 - 85 |
| Fibre length input | 100 mm |
| Fibre length output | 100 mm |
| Height | 4 mm |
| Width | 60 mm |
| Depth | 12 mm |
1 SC/APC 900 µm fiber x 2 SC/APC 900 µm fibers G657 mini splitter, 1 m
GGM MINIPLC1X2
1 SC/APC 900 µm fiber x 4 SC/APC 900 µm fibers G657 mini splitter, 1 m
GGM MINIPLC1X4

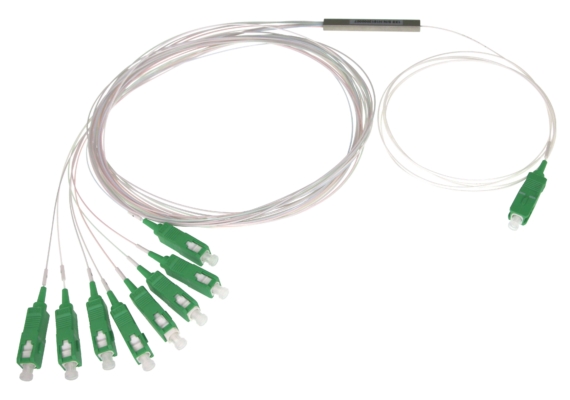

1 SC/APC 900 µm fiber x 8 SC/APC 900 µm fibers G657 mini splitter, 1 m
