GGM SOSK

Starter kit SOBOX France

Also dedicated to restricted environments, doctors' offices, pharmacies, supermarkets, shops..., the SOBOX box is the evolution of the 123 CONNECT. box Indeed, after having innovated in 1999 by launching on the market our offer "123 CONNECT", the objective of the project "SOBOX" was to design a new offer which, in addition to computer pre-cabling, can also allow you to integrate video surveillance solutions, sound system, as well as a BOX operator, All this, always in a box that is as compact and discreet as possible compared to a 19″ box. Components already packaged to carry out an installation of 16…

Also dedicated to restricted environments, doctors' offices, pharmacies, supermarkets, shops..., the SOBOX box is the evolution of the 123 CONNECT.
box
Indeed, after having innovated in 1999 by launching on the market our offer "123 CONNECT", the objective of the project "SOBOX" was to design a new offer which, in addition to computer pre-cabling, can also allow you to integrate video surveillance solutions, sound system, as well as a BOX operator, All this, always in a box that is as compact and discreet as possible compared to a 19″ box. Components already packaged to carry out an installation of 16 substations (excluding cables):
Components already packaged to carry out an installation of 16 substations (excluding cables).

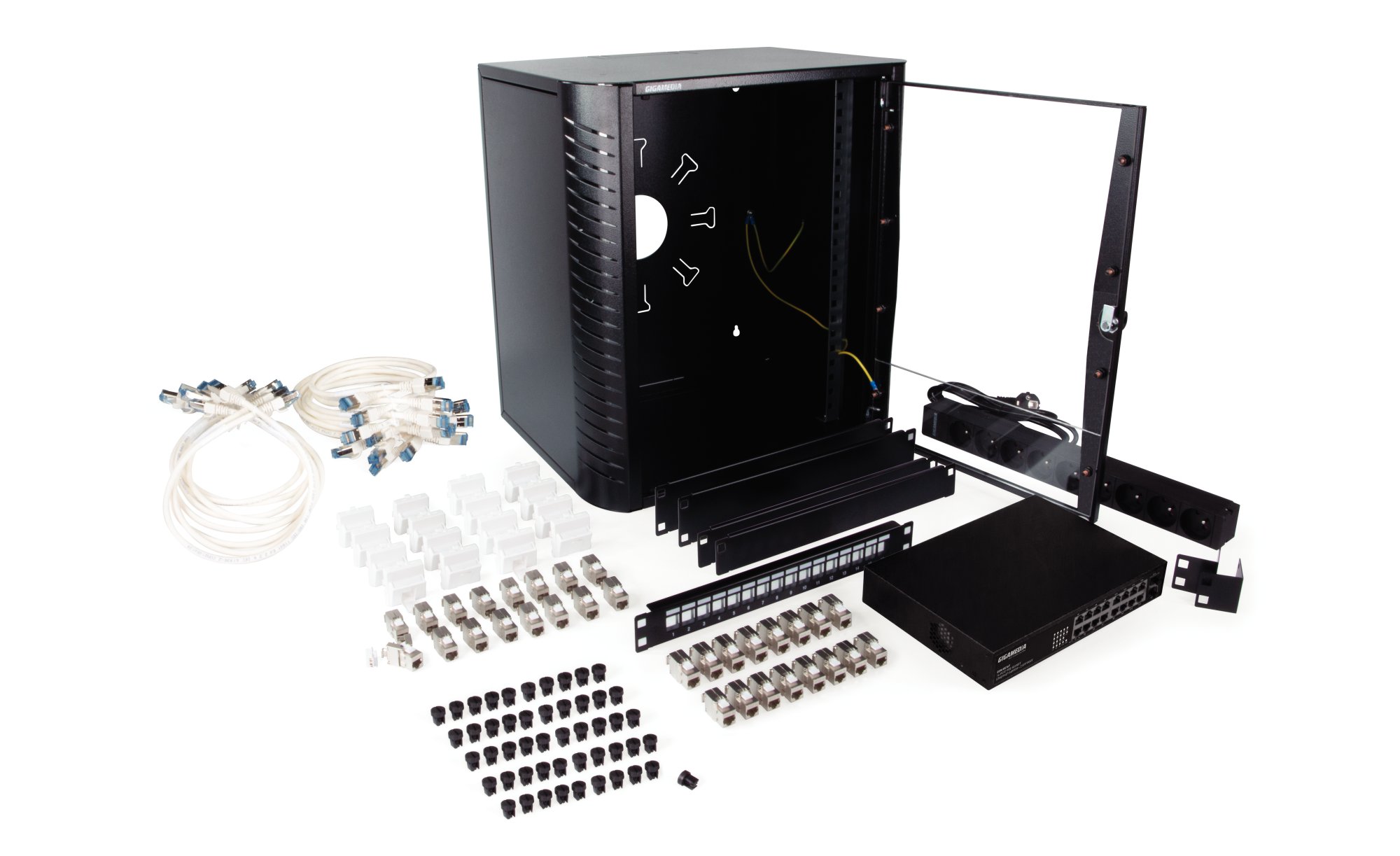

GGM SOSK composition:

1 x 11U Box (GGM SOCOF11UN)
1 x 16-port patch panel to equip (GGM SOPV16RJN)
32 x RJ45 STP Cat6A 10G Core (GGM PRJC6A10G)
16 x Cat6A 10G 10G 1m S/FTP Patch Cord (GGM CAT6AS1MWH)
16 x 45x45 1-port inclined breastplate (GGM PL45IS)
1 x 16-Port 200W Gigabit PoE+ Unmanaged Switch (GGM GS16P + GGM SOSSGS16PN)
1 x Headband 9 UTE 2P+T 16A/250V with Power Cord (GGM B9P)
2 x 1.5U shutter panel (GGM SOPO15UN)
2 x 1U shutter panel (GGM SOPO1UN)
1 x Set of 50 Fixing Clips (GGM SOCLIP50N)

Produit	Starter kit SOBOX
Long description	Starter kit SOBOX France
Mounting level	Front side
Model	With permanent frame
Type of profile rail	L-shaped
Number of doors	1
Type of ventilation	Passive
Width	478 mm
Height	520 mm
Depth	360 mm
Modular spacing	Other
Height (U)	11
With roof plate	Yes
With earthing	Yes
With front door	Yes
With sidewall	Yes
Demountable	No
Material	Steel
Surface finishing	Powder coating
Colour	Black
RAL	9005
IP protection	IP20
