| Type | Side access |
|---|---|
| Frame | Steel, mechanically welded |
| Mounting profiles | Two 14″ mounting profiles (zinc plated) |
| Front door | Reversible acryglass door with side profiles, can be opened up to 90°, locked by using key lock |
| Side panels | Removable for easier access, locked by using quick clipping system |
| Cable entries | On the top and on the bottom |
| Ventilation | Ventilation openings |
| Useful height (mm) | 520 |
| Width (mm) | 478 |
| Depth (mm) | 360 |
| Capacity | 11 |
| RAL | 9005 |
| Protection (IP) | 20 |
| Earthing kit included | Yes |
| Mounting level | Front side |
| Model | With permanent frame |
| Type of profile rail | L-shaped |
| Number of doors | 1 |
| Type of ventilation | Passive |
| Width | 478 mm |
| Height | 520 mm |
| Depth | 360 mm |
| Modular spacing | Other |
| Height (U) | 11 |
| With roof plate | Yes |
| With earthing | Yes |
| With front door | Yes |
| With sidewall | Yes |
| Demountable | No |
| Material | Steel |
| Surface finishing | Powder coating |
| Colour | Black |
| IP protection | IP20 |
Product information
For further information
Over 7000
part numbers
Exclusively distributed
by Rexel
Over 100 employees
worldwide
30 years of expertise
at your service
Tailor-made services
for your projects
GGM SOCOF11UN

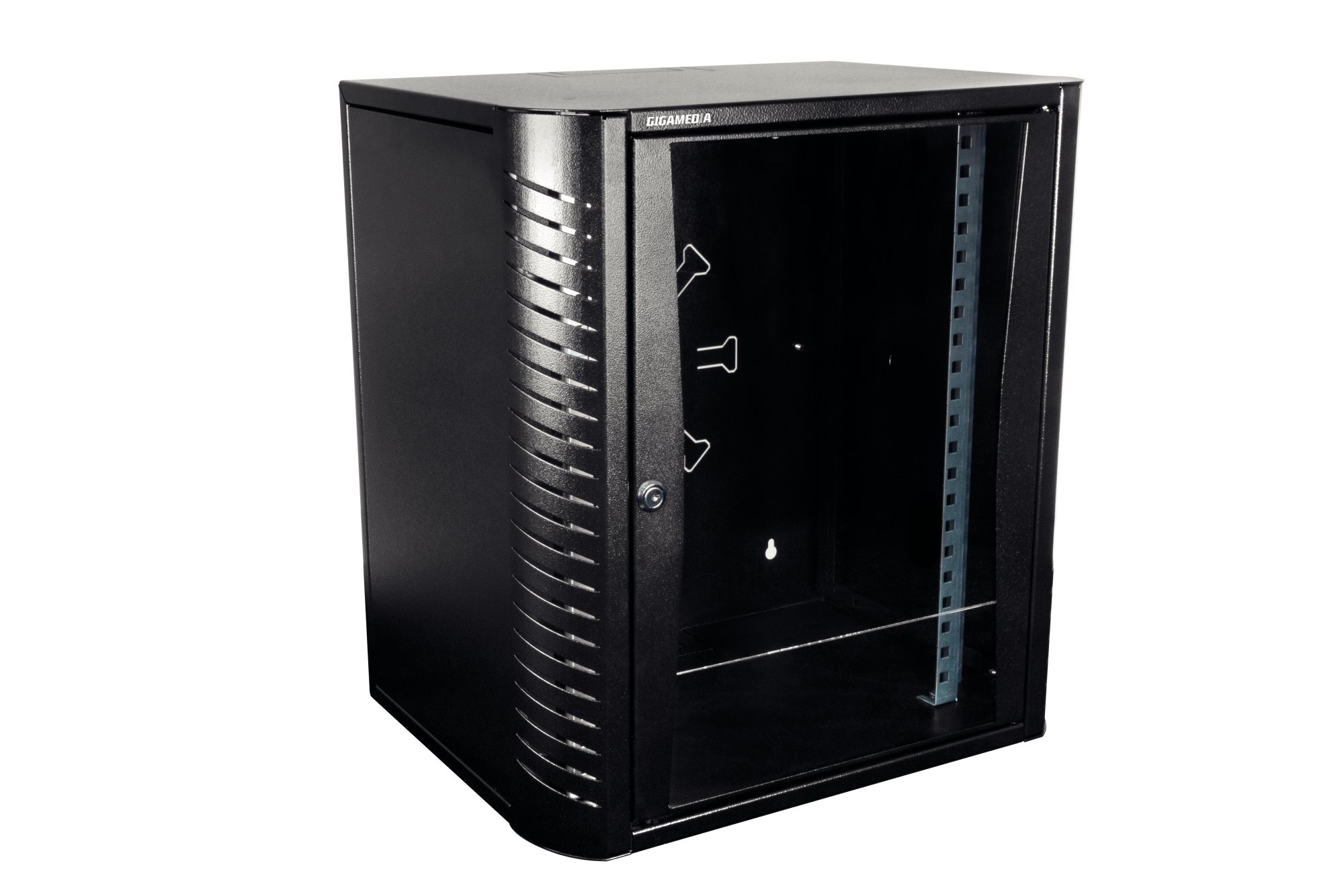

14″ Wallmount cabinet SOBOX 11U 360 mm depth – Black
