GGM S1MPC2ML

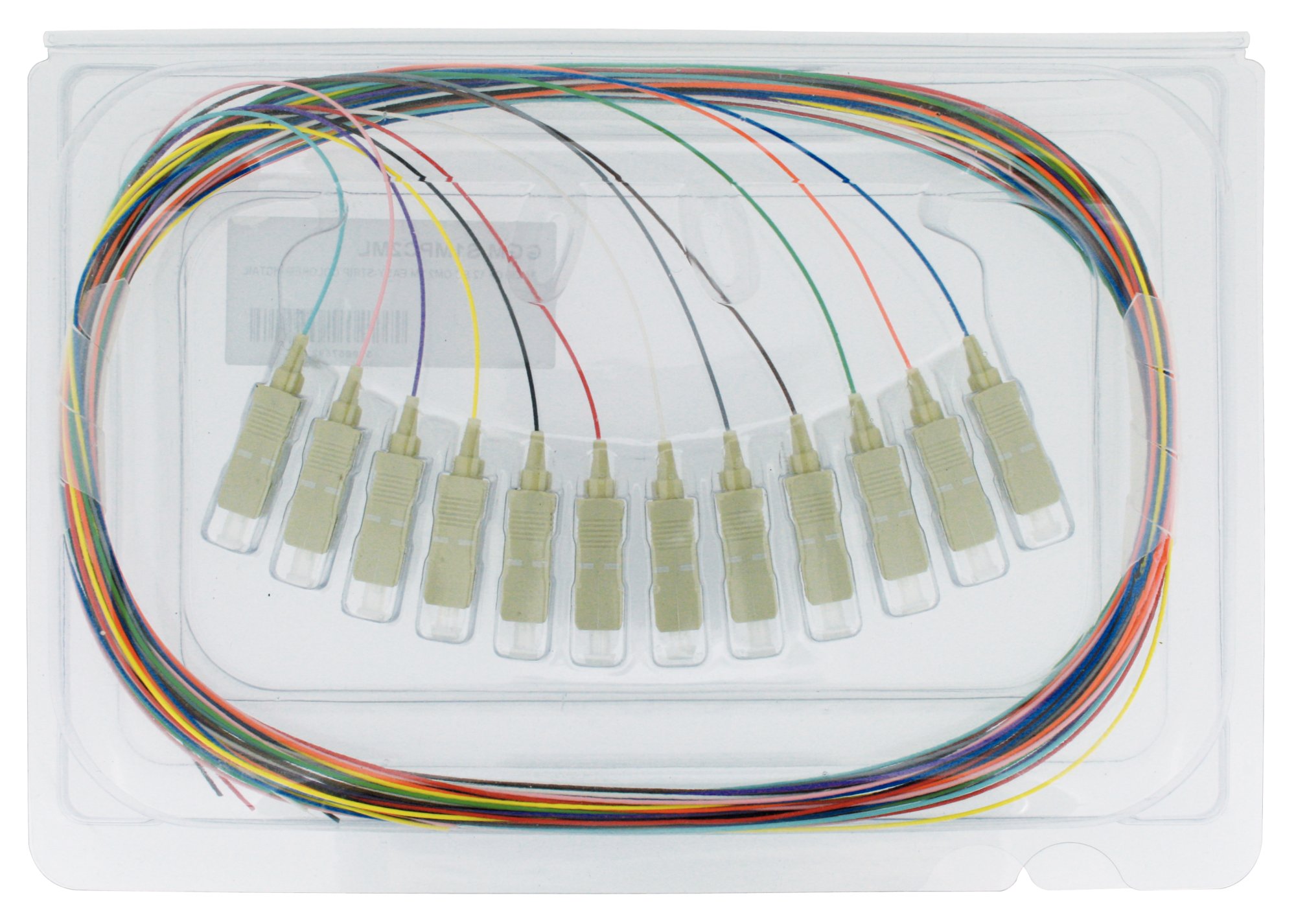

Pack of 12 pigtails SC OM2 50/125 µm, colour code IEC 60304.
Read more| Bandwidth (mhz/km) | @ 850 nm : ≥ 200 ; @ 1300 nm : ≥ 500 |
|---|---|
| Ferule | High precision ceramic (ZrO2) |
| Il/rl test report | Supplied with each piece |
| Insertion loss | ≤ 0.15db |
| Operating temperature | From - 5°c to + 60°c |
| Other connectors | On demand |
| Polishing | PC |
| Jacket | 900 µm LSZH |
| Typical return loss | ≥ 35db |
| Packaging | Pack of 12 colors |
| Cable type | Semi-tight (easy-strip) |
| Fibre optic category | Multi mode 50/125 |
| Category | OM2 |
| Type | Conductor pigtail |
| Structure | Semi tight |
| Length | 2 m |
| Connector type | SC |
| APC | No |
| Colour | Other |
| Boot | Put-on |
