GGM PRJC6A10G24

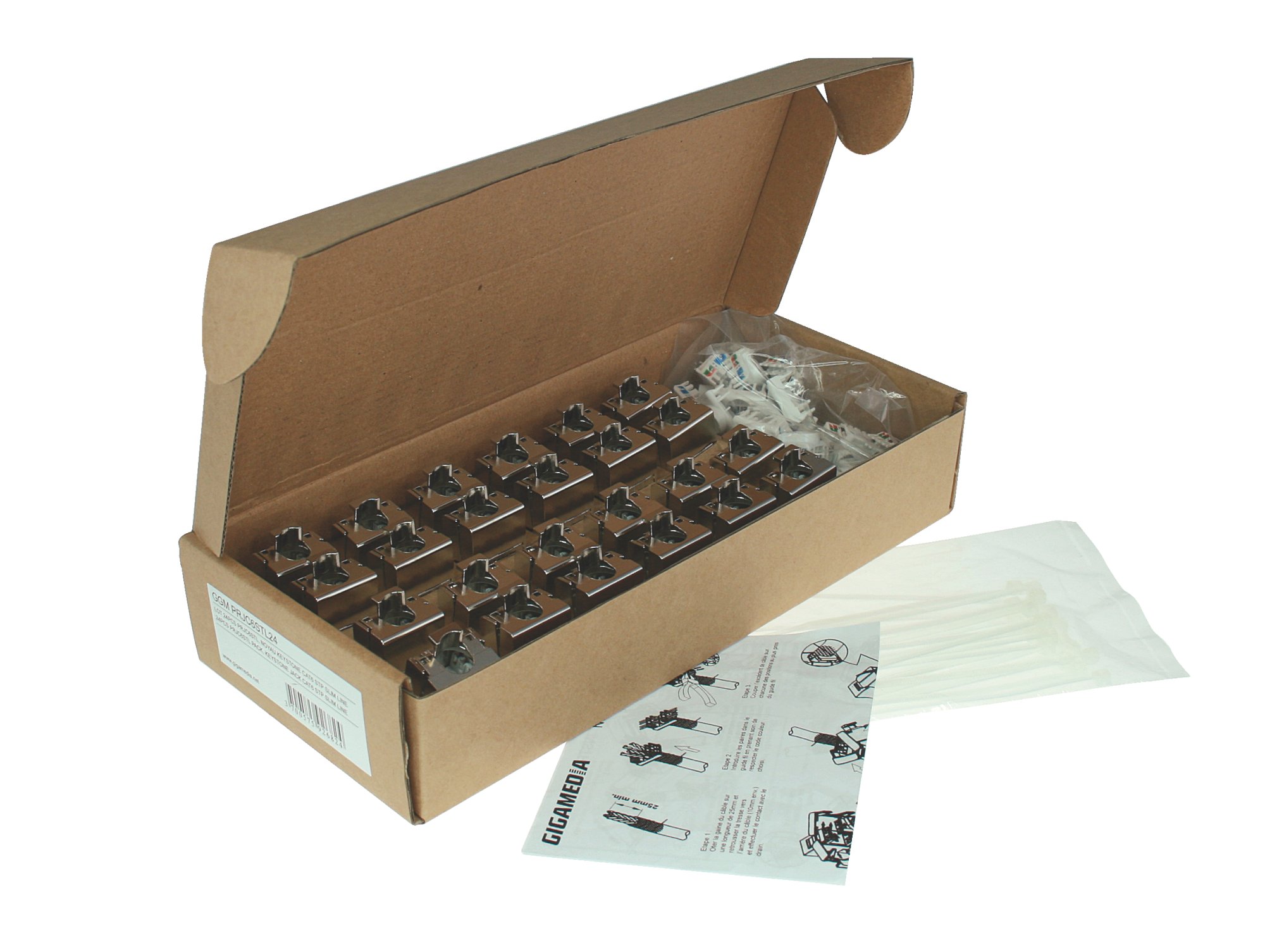

PACK OF 24 RJ45 CAT6A Ed2.2 10G 4PPOE SHIELDED STP TOOLLESS KEYSTONE JACK

The tool-free GGM PRJC6A10G core combines CAT6A 10G performance with ease of installation. Requiring no insertion tools, it simplifies and reduces the work of connection. The kernel's color-marked wire guide system separates the pairs, ensuring better performance and faster installation.

Color code	T568A/B
Number of contacts	8
Connector type	RJ45
Applications	IEEE802.3 : 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T IEEE 802.3af/at/bt (PoE/PoE+/4PPoE)
Core shield	Shielded
Category	6A
Standards	ANSI/TIA-568.2-D ; EN 50173 ; ISO/IEC 11801
Connection mode	Toolless
Pins quality	50 micron gold contacts
Jauge_accepted_code_article	22/24
Dust cover	No
Packaging	Pack of 24pcs
Model	Bus (jack)
Shielded	Yes
Connection type	Other
Specific tooling	No
Adapted to round cables	Yes
Adapted to flat cables	No
Adapted to stranded cables	Yes
Adapted to solid cables	Yes
Colour	Silver
Transparent	No
AWG range	22 - 26
Compatible with Grade2TV according to XP-C 90-483	Yes
Compatible with Grade3TV according to XP-C 90-483	Yes
