GGM PRJC5ESTL

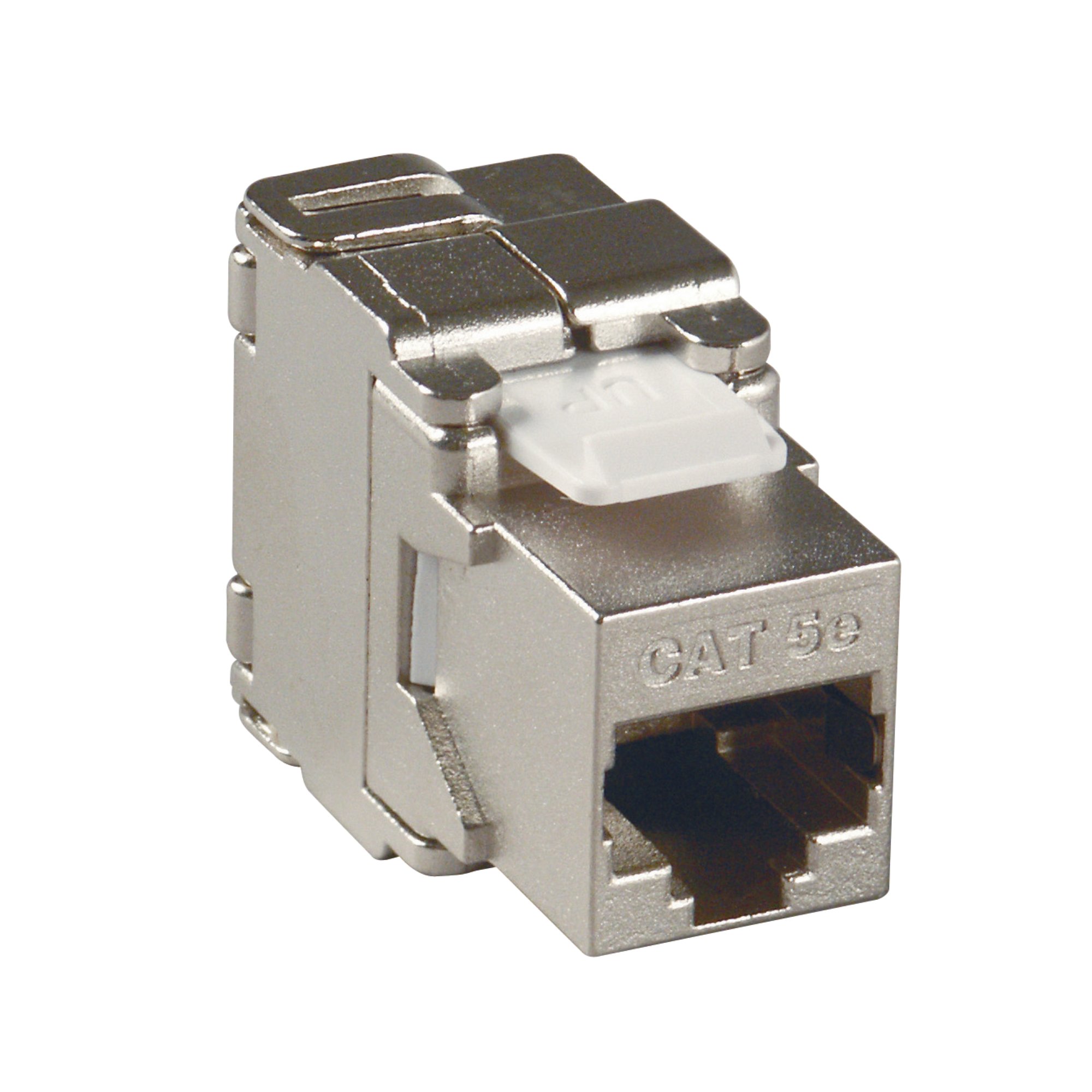

CAT5E STP KEYSTONE JACK SS TOOL
The GIGAMEDIA Category 5e connector is an RJ45 Keystone jack which offers different types of connection: No specific tools Terminal block with self-stripping contacts Each connection method provides quick and easy implementation. This connector can be installed indifferently in faceplates, boxes and empty GIGAMEDIA patch panels. This connector offers performances better than Category 5e corresponding to standards ISO 11801 and the EIA/TIA on NEXT, ACR, PSNEXT and RETURN LOSS values.
Read more
The GIGAMEDIA Category 5e connector is an RJ45 Keystone jack which offers different types of connection:
No specific tools
Terminal block with self-stripping contacts
Each connection method provides quick and easy implementation.
This connector can be installed indifferently in faceplates, boxes and empty GIGAMEDIA patch panels.
This connector offers performances better than Category 5e corresponding to standards ISO 11801 and the EIA/TIA on NEXT, ACR, PSNEXT and RETURN LOSS values.
| Color code | T568A/B |
|---|---|
| Number of contacts | 8 |
| Connector type | RJ45 |
| Applications | IEEE802.3 : 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) |
| Core shield | Shielded |
| Category | 5E |
| Standards | ANSI/TIA-568.2-D ; EN 50173 ; ISO/IEC 11801 |
| Connection mode | Toolless |
| Pins quality | 50 micron gold contacts |
| Jauge_accepted_code_article | 22/26 |
| Dust cover | No |
| Packaging | By piece |
| Model | Bus (jack) |
| Shielded | Yes |
| Connection type | Other |
| Specific tooling | No |
| Adapted to round cables | Yes |
| Adapted to flat cables | No |
| Adapted to stranded cables | Yes |
| Adapted to solid cables | Yes |
| Colour | Silver |
| AWG range | 22 - 26 |
