GGM PANC6U24P

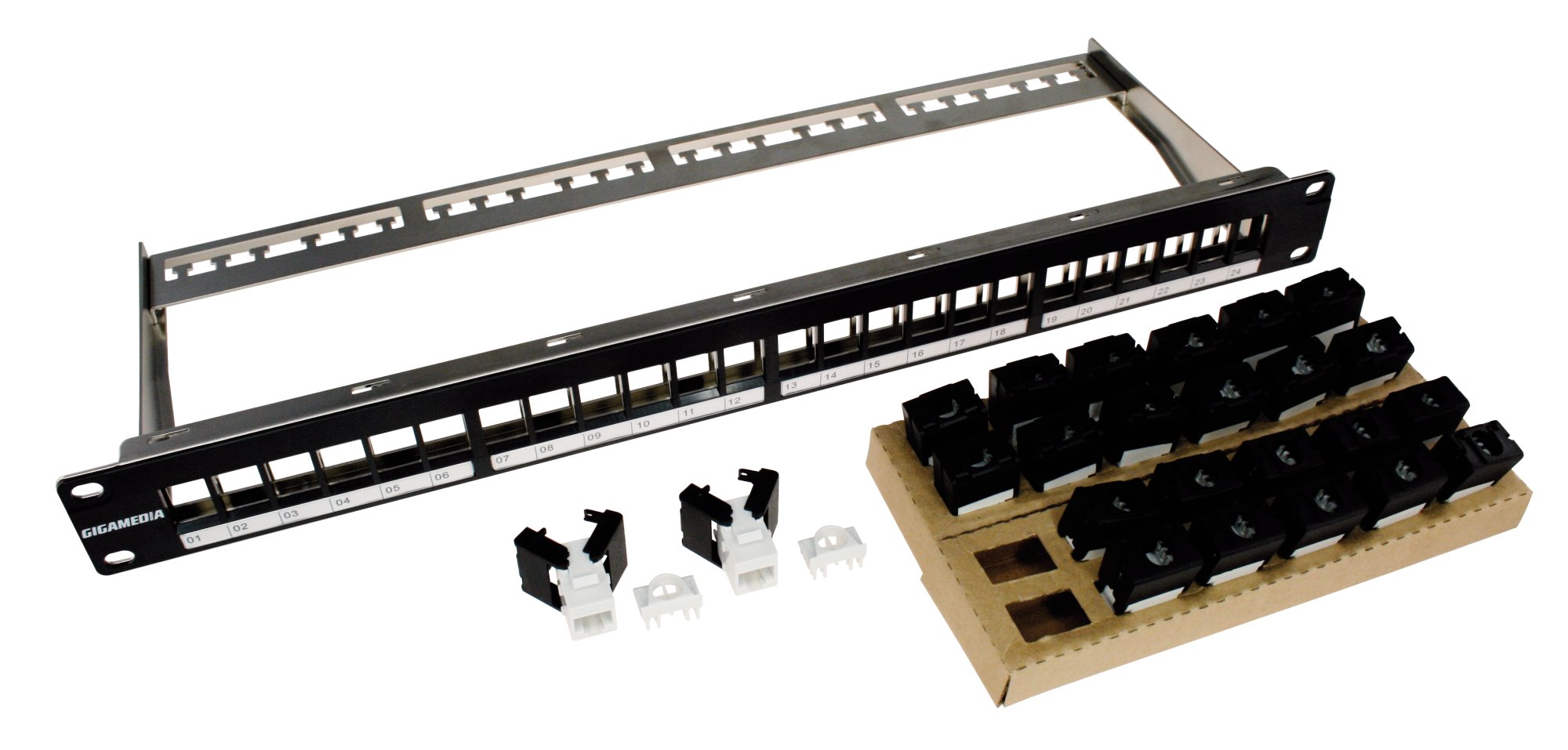

PANEL 24PORTS+24PCS PRJC6UTL
From a completely modular design, the GIGAMEDIA range of panels offers an economic solution and very competitive cost/port ratio. It has possibility for markings and identification. Ready to accept a substantial number of active links, they are robust, have a rear support plate and thus guarantee reliability when mounted in a 19″ environment.
Read more
From a completely modular design, the GIGAMEDIA range of panels offers an economic solution and very competitive cost/port ratio.
It has possibility for markings and identification.
Ready to accept a substantial number of active links, they are robust, have a rear support plate and thus guarantee reliability when mounted in a 19″ environment.
| Applications | IEEE802.3 : 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) |
|---|---|
| Category | 6 |
| Color code | T568A/B |
| Standards | ANSI/TIA-568.2-D, ; EN 50173 ; ISO/IEC 11801 |
| Connector type | Female |
| Height in U | 1 |
| Impedance | 100 |
| Connection mode | Toolless |
| Equip | Yes |
| Port density | 24 |
| Port identification | Numbering, marking area |
| Color | Black |
| Pro. 110 IDC block with cutting blade | GGM 907H110 |
| Number of connections | 24 |
| Shielded | No |
| Connection type | Other |
| Height (U) | 1 |
| Colour | Black |
| RAL | 9005 |
| Mounting method | 482.6 mm (19 inch) mounting |
| Height | 44 mm |
| Width | 483 mm |
| Depth | 200 mm |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
