GGM ONT2SCAPCS

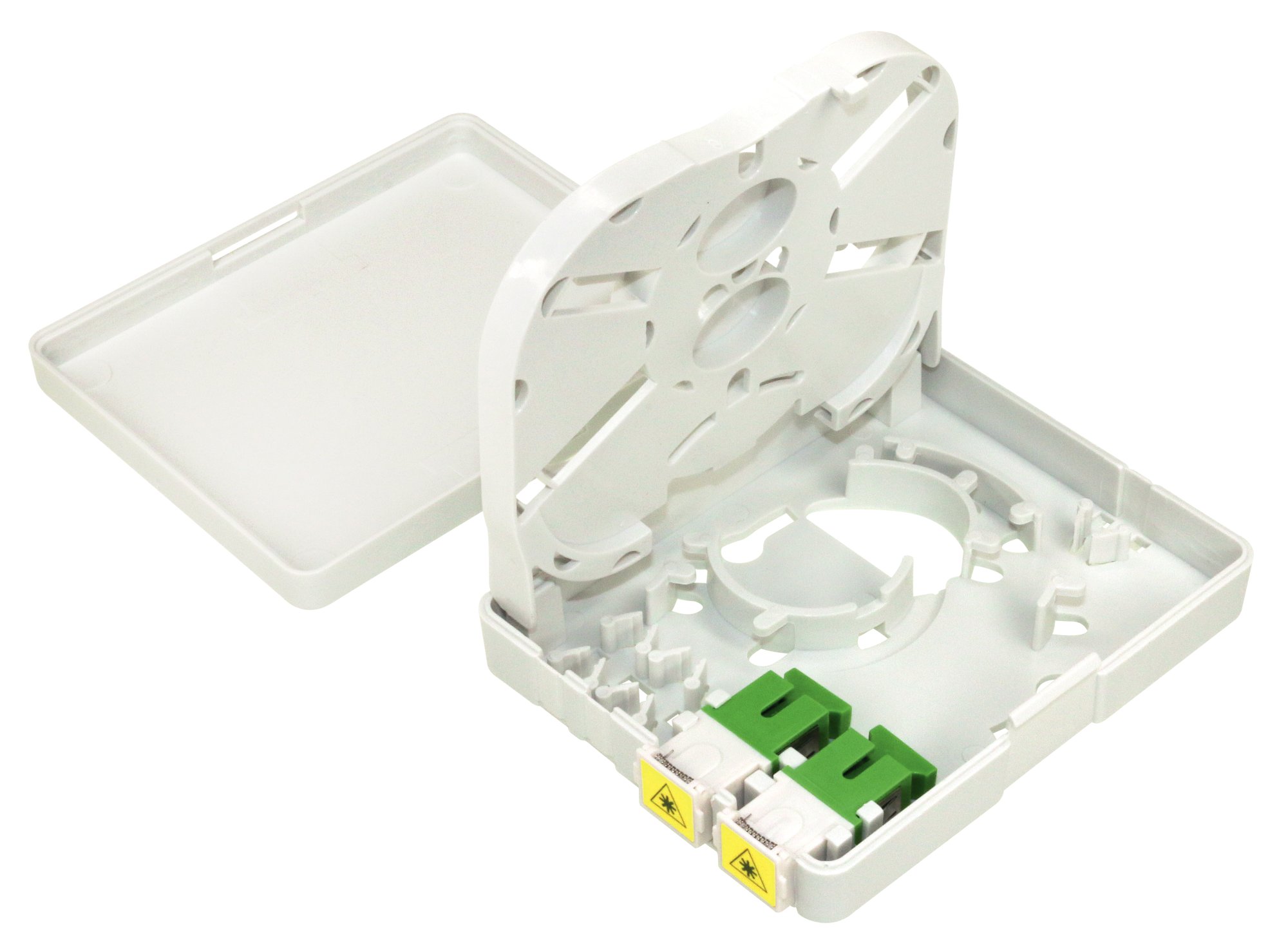

White ONT preloaded with 2 SC/APC green adapters with shutter, wall-mount use

This optical terminal plug can connect 2 fibre optic cables. It is proposed with 2 SC/APC connectors complete with safety flap (protection against lasers for the end user, avoids accumulation of dust and alteration to the performance level).

Materials	ABS plastic
Protection (IP)	IP53
Capacity	2 fibres
Cable entry	Top and bottom cable entrances (breakable plastic) for 2x2,8 mm duplex cable or 6 mm round cable
Included	Splice cassette, 2 simplex SC/APC adapters with shutters
Operating temperature range	From - 40 to 70°C
Weight (kg)	0.07
Surface mounted	Yes
Flush-mounted installation	No
Duct installation	No
Floor box/Sub floor mounted	No
Connection method	Other
With adapters	Yes
Number of connections	2
Connector type	Other
Colour	White
RAL	9010
Central plate	No
With cover frame	Yes
Labeling zone	No
Separate strain relief	No
Fibre routing / Cable management	Yes
Outlet direction	Downwards
Dust cover	Hinged lid
Device width	80 mm
Device depth	22 mm
Device height	100 mm
