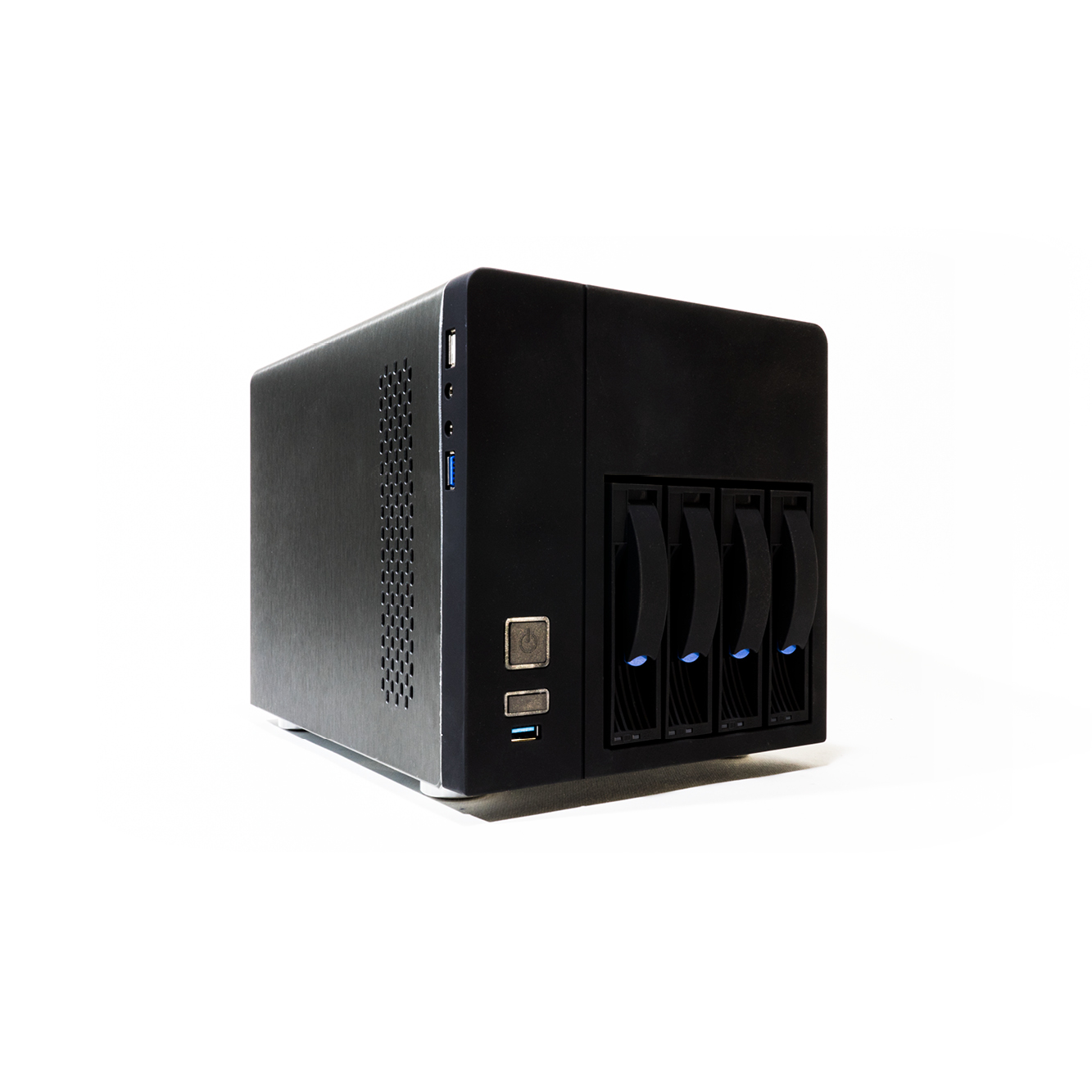

GGM NXSERV4B

NAS Type server I5 Processor 16 Gb RAM Windows 10 IoT 4 HDD Slots HW Raid

The NXSERV4B is a server based on Windows 10 IoT Entrerprise. It is fully designed to support the performance needed for a CCTV project based on VMS NX Witness from Network optics.
It embbeds Intel Core I5 processor, 2 x 8 Gb DRAM and 256 Gb SSD Hard drive for the OS
This hardware is sized to support up to 128 cameras
This device integrates 4 empty HDD slot to install HDD for your video footage. Each slot can support up to 20 Tb capacity.
Raid Controler is integrated and support RAID 0 to RAID 5.
Several video output are avilable to display video streams up to 4K
It support up to 2 monitors for a client mode usage.
Network performance is ensured by two 2.5 Gbs ports to avoid any transmission issues due to high volume of data to transmit in real time.

Enclosure

Form factor	NAS Box
Number of U	nc

Hardware

Chipset	Intel Q670
CPU	Intel Core I5 12 th Generation
CPU socket	1
Memory slot	2
Memory	2x 8GB DDR4 3200MHz
Maximum memory capacity	64
Graphics controller	Intel Intégré
Type of graphic card support	None
Free PCI-e x1/x2/x4/x8/x16 slots	0/0/0/0

Storage

OS drive type	1 x Enterprise grade SSD Hard drive
OS Storage size	250 Gb
OS RAID controller and configuration	No
OS recovery	No
Storage drives	4
Type of storage bays	4 x 3.5/2.5" hot swap
Storage drive types	Enterprise Sata, NAS, Surveillance
RAID Controller	Yes
Type of RAID controleur	Broadcom HW RAID
RAID configuration	0/1/5/6/10
Maximum storage (TB)	88

Security

Monitoring & Alarming	None
Physical security	None
Software security	None

Remotye management

Remote management	Teamviewer

Interfaces

Vidéo Output	2 x Display ports ( 4K), 1 x HDMI (4K) , 1 x VGA
Network Interface	2 x 2,5 Gbps
Wireless interface	No
Type of wireless interface	aucun
Interfaces audio	Façade et arrière: Entrée micro sortie de ligne
Communication interface	Façade: 2x USB 3.0, Arrière: 2x USB 3.2 Gen2 2 x RS-232/422/485

OS

Operating system	Windows 10 IoT Enterprise

Miscellaneous informations

Power input (VAC)	100-240 VAC
Power Consumption	60 W
Dimension	263mm x 195mm x 197mm
Telescopic rail included	No
Weight (kg)	4
Relative Humidity Operating/Storage	10%~85%
Operating Temperature (°C)	0°C - 40°C

ETIM features

Recording type	Digital
Device construction	Desktop
Number of hard disc bays	4
Memory capacity per hard disc	18 TB
Max. number of video inputs	256
Number of RJ45 connections	2
With video motion detector	Yes
With DVD	No
Redundant power supply	No
Max. data transmission rate	2500 Mbit/s
RAID 0 capable	Yes
RAID 1 capable	Yes
RAID 5 capable	Yes
RAID 6 capable	Yes
RAID 10 capable	Yes
Hot-swappable hard disk capability	Yes
Width	263 mm
Height	195 mm
Depth	197 mm
