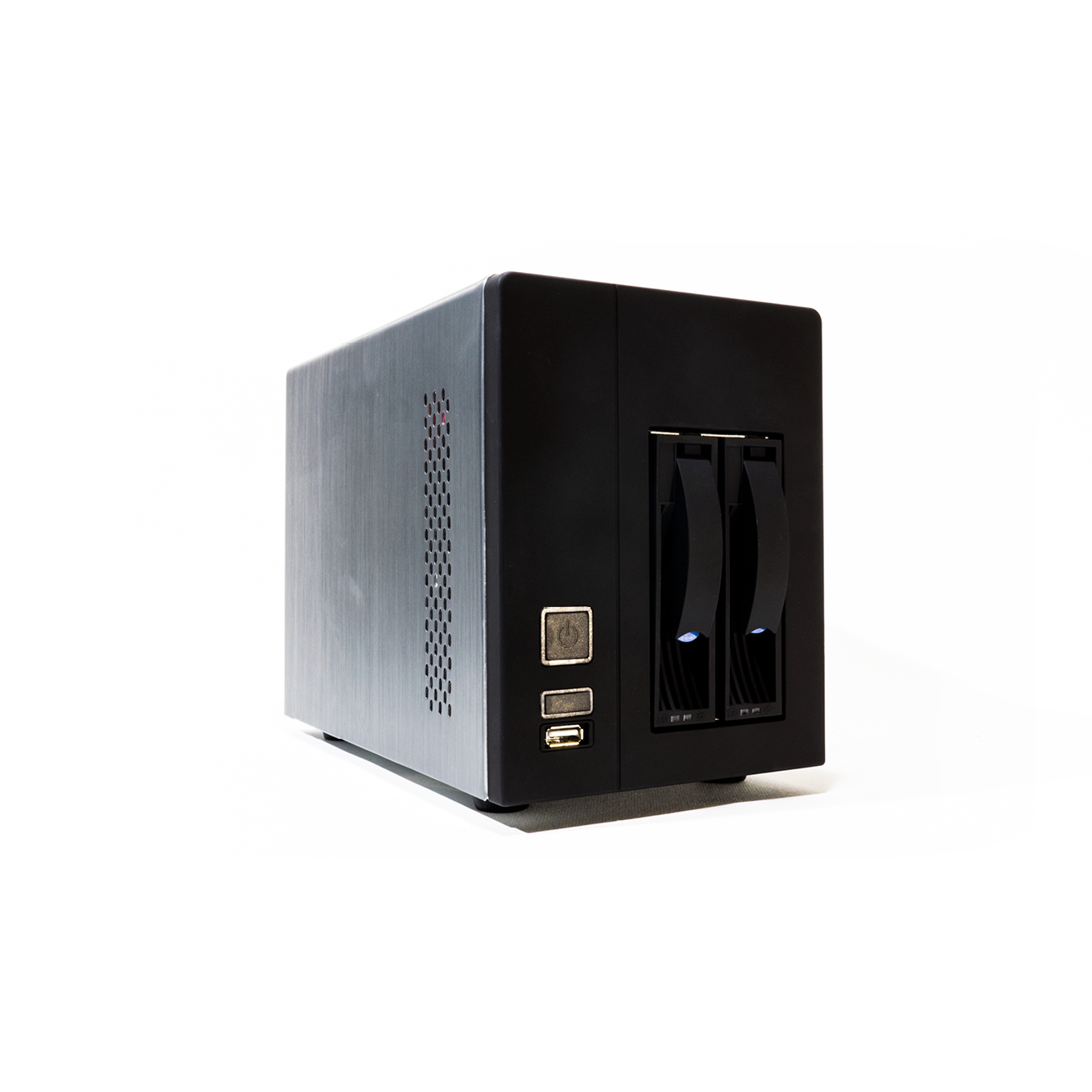

GGM NXSERV30L2B

Server Processor I3 16 GB DRAM Windows 10 2 HDD slots with 30 NX licences

The NXSERV30L2B is a server based on Windows 10 IoT Entrerprise. It is fully designed to support the performance needed for a CCTV project based on VMS NX Witness from Network optics. The software NX witness is already installed and 30 licences are pre-loaded It embbeds Intel Core I3 processor, 2 x 8 Gb DRAM and 256 Gb SSD Hard drive for the OS This hardware is sized to support up to 30 cameras. This device integrates 2 empty HDD slot to install HDD for your video footage. Each slot can support up to 10 Tb capacity. Several video output…

The NXSERV30L2B is a server based on Windows 10 IoT Entrerprise. It is fully designed to support the performance needed for a CCTV project based on VMS NX Witness from Network optics.
The software NX witness is already installed and 30 licences are pre-loaded
It embbeds Intel Core I3 processor, 2 x 8 Gb DRAM and 256 Gb SSD Hard drive for the OS
This hardware is sized to support up to 30 cameras.
This device integrates 2 empty HDD slot to install HDD for your video footage. Each slot can support up to 10 Tb capacity.
Several video output are avilable to display vidéo streams up to 4K
Network performance is ensured by two 2.5 Gbs ports to avoid any transmission issues due to high volume of data to transmit in real time.

Produit
Form factor	NAS Box
Number of U	nc
Chipset	Intel Q670
CPU	Intel Core I3 12 th Generation
CPU socket	1
Memory slot	2
Memory	2 x 8 GB DDR4 3200 Mhz
Maximum memory capacity	64
Graphics controller	Intel Integrated
Type of graphic card support	None
Free PCI-e x1/x2/x4/x8/x16 slots	0/0/0/0
Free PCI-32 bits slots	0
OS drive type	1 x Enterprise grade SSD Hard drive
OS Storage size	250 Gb
OS RAID controller and configuration	No
OS recovery	No
Storage drives	2
Type of storage bays	2 x 3.5/2.5" hot swap
Storage drive types	Enterprise Sata, NAS, Surveillance
RAID Controller	Yes
Type of RAID controleur	Intel RSTe
RAID configuration	0/1
Maximum storage (TB)	44
Monitoring & Alarming	None
Physical security	None
Software security	None
Remote management	Teamviewer
Graphics interface	2 x Display port ( 4K), 1 x HDMI ( 4K), 1 VGA
Network Interface	2 x 2,5 Gbps
Wireless interface	No
Type of wireless interface	None
Interfaces audio	Front and rear : Mic input, line output
Communication interface	Front: 1 x USB 3.0 Rear: 4 x USB 3.2 Type A Gen 2, 1 x RS232, 1 x RS232/422/485
Operating system	Windows 10 IoT Enterprise
Chassis FAN's
Power input (VAC)	100-220 VAC
Power supply type
Power Consumption	60 W
Dimension	140 x 254 x 180 mm
Telescopic rail included	No
Noise production ( dB)
Weight (kg)	3
Relative Humidity Operating/Storage	10%~85%
Operating Temperature (°C)	0~35°C
Recording type	Digital
Device construction	Desktop
Max. number of video inputs	30
With video motion detector	Yes
With DVD	No
Redundant power supply	No
Max. data transmission rate	1000 Mbit/s
Processor type	Intel Core i3
Number of ports LAN	2
Number of pre-licensed cameras	30
Number of hard disc bays	2
Memory capacity per hard disc	10 TB
RAID 0 capable	No
RAID 1 capable	No
RAID 5 capable	No
Hot-swappable hard disk capability	No
Width	140 mm
Height	254 mm
Depth	180 mm
