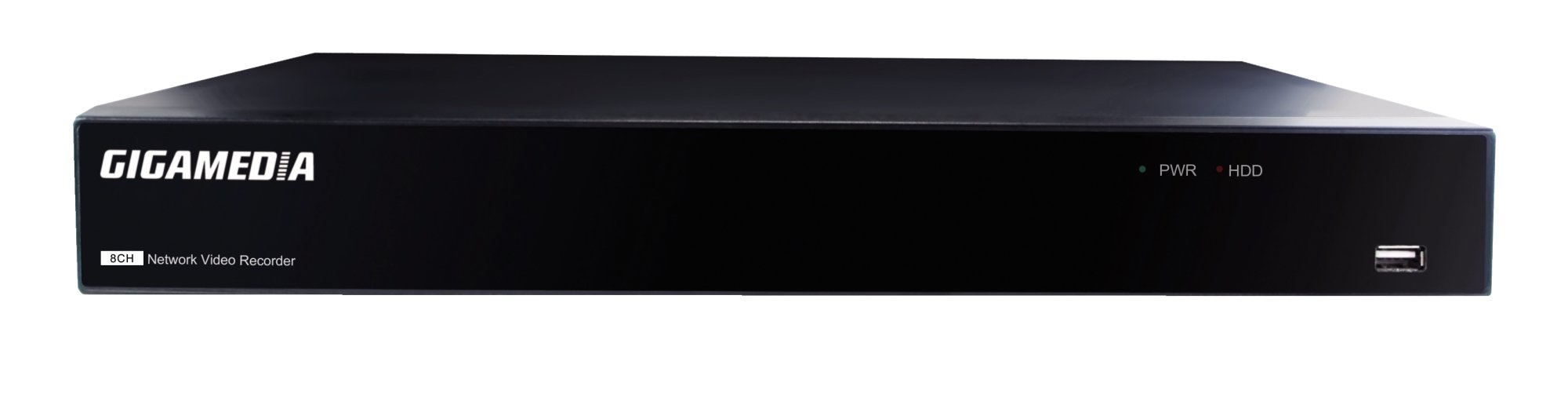

GGM NVRL0104P

NVR 4 Channel PoE 1HDD FREE

The GIGAMEDIA recorders give an excellent price/performance ratio for video surveillance installations. The NVRL0104P is a dedicated recorder for small video surveillance solutions. Its 4 PoE ports allow the cameras to be directly supplied with power. It has space for a hard disk able to accept hard disks with a maximum capacity of 6Tb. It accepts cameras up to 4K resolution. It has 4 dry contact inputs for alarm recordings. The UpNp and P2P functionalities allow for an easy remote access configuration. The mobile application GGM VIEW is available on iOS and android platforms. This product is perfectly suited to…

Mobile app	GGM VIEW
UPNP function
OS	Linux embarqué
CPU	ARM processor
Flash	NAND128MB
RAM	2*2Gb
Display live view	1x1 ; 2x2
Number of camera supported	4
Graphics interface	HDMI x 1 VGA x 1
Resolution	1024768, 1280720, 12801024, 1440900, 19201080 , 25601440, 3840*2160
Camera grid	Change the view cell camera on live view screen
Dewarp fisheye	Use WEB CMS,device does not support
Stream	Main stream/Sub stream
PTZ functions	Control direction, Home, iris, Preset,Cruise, Patrol
Display enhancement	OSD NVR, OSD camera, camera information, I/O remote control, event notification
Video Format	H.264/H.264+/H.265/H.265+/MJPEG
Décoding resolution	8MP,5MP, 3MP ,2MP(1080P),1.3MP(960P),1.0MP(720P)
Decoding capacity	4K:45fps 4MP:90fps 2MP:180fps
SPOT FUNCTION	No
Audio Format	G.711A;G.711U
Audio Input /output	3,5 mm audio Jack output 3,5 mm audio input
Recording time	Pré-recording: 10S Post recording: 30s,1,2,5min
Recording stream	Main stream/Sub stream
Continous recording	50Mbps
Recording type	Continuous / Manual / Schedule / Motion detection / Sensor Triggered/Intelligents
Number of HDD	1
HDD capacity (Tb)	10 Tb each
RAID
HDD management	create, format ,overwrite, remove hdd HDD Smart
Manual backup	usb dongle,CD/DVR driver
Scheduled backup	FTP,Cloud,drop box
Playback display	4 channel simultaneously : multiple display 1 x 1
Playback control	Play, Stop, Pause, next frame, speed control, Schedule, sacle,
Video search	Alarm,event,picture,schedule, date/time, intelligent
Snapshot	.jpg/.jpeg
Export video clip	.AVI/.RF/.MP4
Network Interface	RJ-45 port (10/100M）
Number of POE port	4
Number_of_WAN_port_article	1
Bitrate	50Mbps
Protocols	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE, SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
USB	2x2.0 USB
Number of Digital input	4
Number of Digital output	1
Audio	1 output jack 3,5 mm
RS485	Yes
POS Integration	NA
UPS integration
Camera integration	Onvif V2.6 profile S
Event	Motion detection, alarm input, network failure, Occlusion detection, intelligents
Action	Recording, email, FTP, buzzer, Cloud notification,
User management	Administrator, Standard user
Log	System, recording, user, error
Date and Time	Time zone, Manual, Automatic synch, daylight saving time
Language	EN/CN/FR/PT/ES/SW …
Intelligent	Face Recognition, Human & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection
Software	VMS pro
App	GGM VIEW
Web browser	IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above
Rack mountable	NA
Power supply	DC48V/1.2A,
Dimension	30022753mm
Weight (kg)	1.8
Consumption (w)	5
Operating Temperature (°C)	-10°C - +50°C
Working humidity	0-90%
Device construction	Desktop
Max. number of video inputs	4
Max. number of control inputs	4
With video motion detector	Yes
With DVD	No
Redundant power supply	Yes
Power consumption	5 W
Max. data transmission rate	50 Mbit/s
Processor type	Other
Number of ports LAN	1
Number of ports PoE	4
Max. PoE power	30 W
Power over Ethernet (PoE)	802.3 at (PoE+)
Operating system	Linux
Number of hard disc bays	1
Memory capacity per hard disc	10 TB
RAID 0 capable	No
RAID 1 capable	No
RAID 5 capable	No
Hot-swappable hard disk capability	No
Width	300 mm
Height	53 mm
Depth	277 mm
