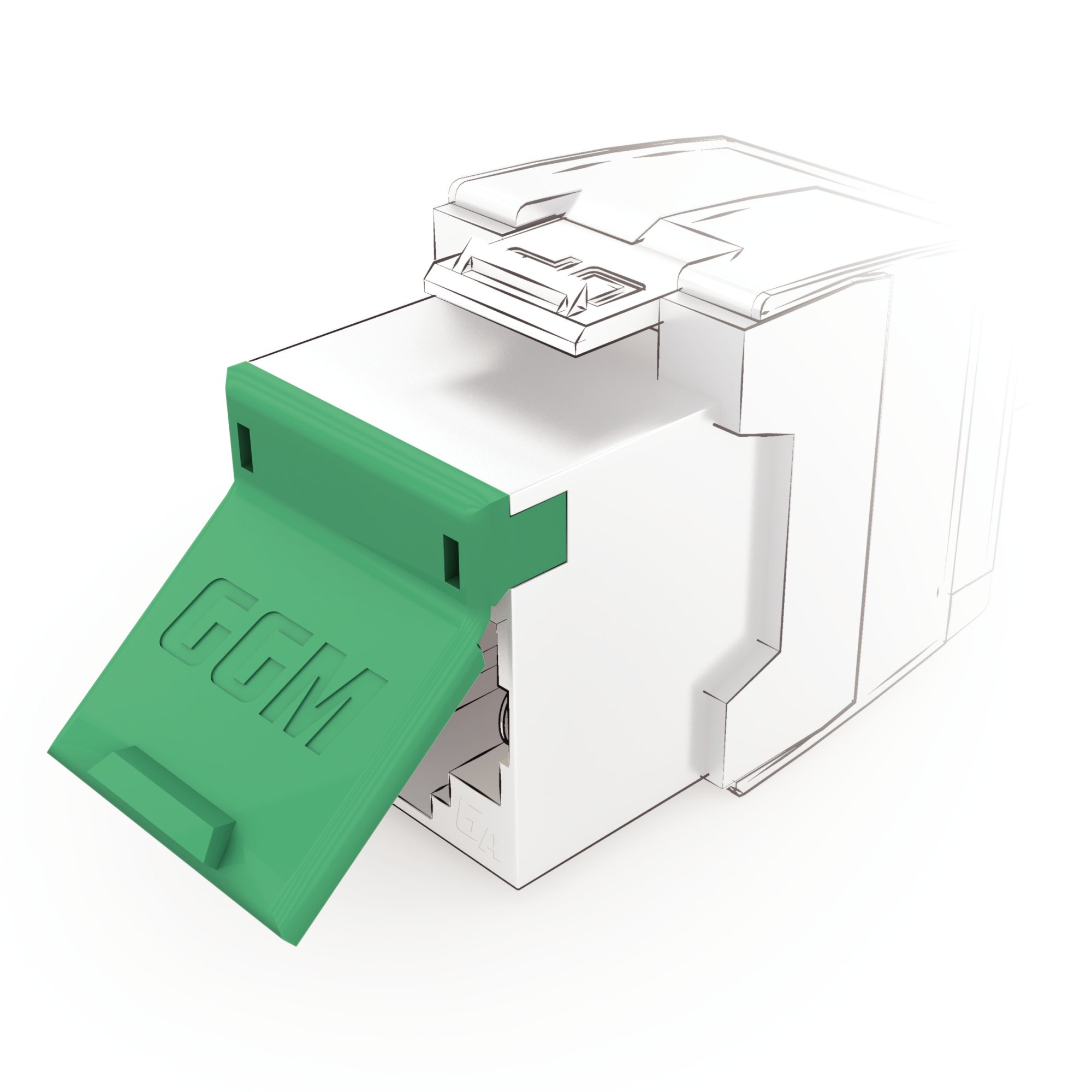

GGM NKJSHUTGN

24PCS SHUTTER / NKJ GREEN

New small form factor jack, tool free connection offering quick and efficient installation It is certified CAT6A and 4 PPoE by an independent laboratory. The body of the jack comprises a metal alloy offering excellent characteristics of elasticity, conductivity and corrosion resistance. The contacts are formed and positioned to reduce unwanted coupling between pairs and reduce the crosstalk. The completely automated production of printed circuits and a thorough inspection at the end of production guarantees the homogeneity of the fabrication. Disposing of “tool-free connection” technology the jack requires no insertion tool, which simplifies and reduces assembly time. It is also equipped with a 360° rear ground connection. Finally, its compact design (ultra-reduced depth of 28 mm) allows space to be optimised in the workstation trunking (facilitates the cable bending radius) and in the control panel with a 24 port solution in a 19″ rack 0.5U. Possibility to include a moveable white anti-dust shutter

Color code	N/A
Number of contacts	8
Connector type	RJ45
Applications	N/A
Core shield	N/A
Category	5
Standards	N/A
Connection mode	N/A
Pins quality	N/A
Jauge_accepted_code_article	N/A
Dust cover	Yes
Packaging	Pack of 24pcs
Type of accessory	Blind cap
