GGM NKJSC6ATL24

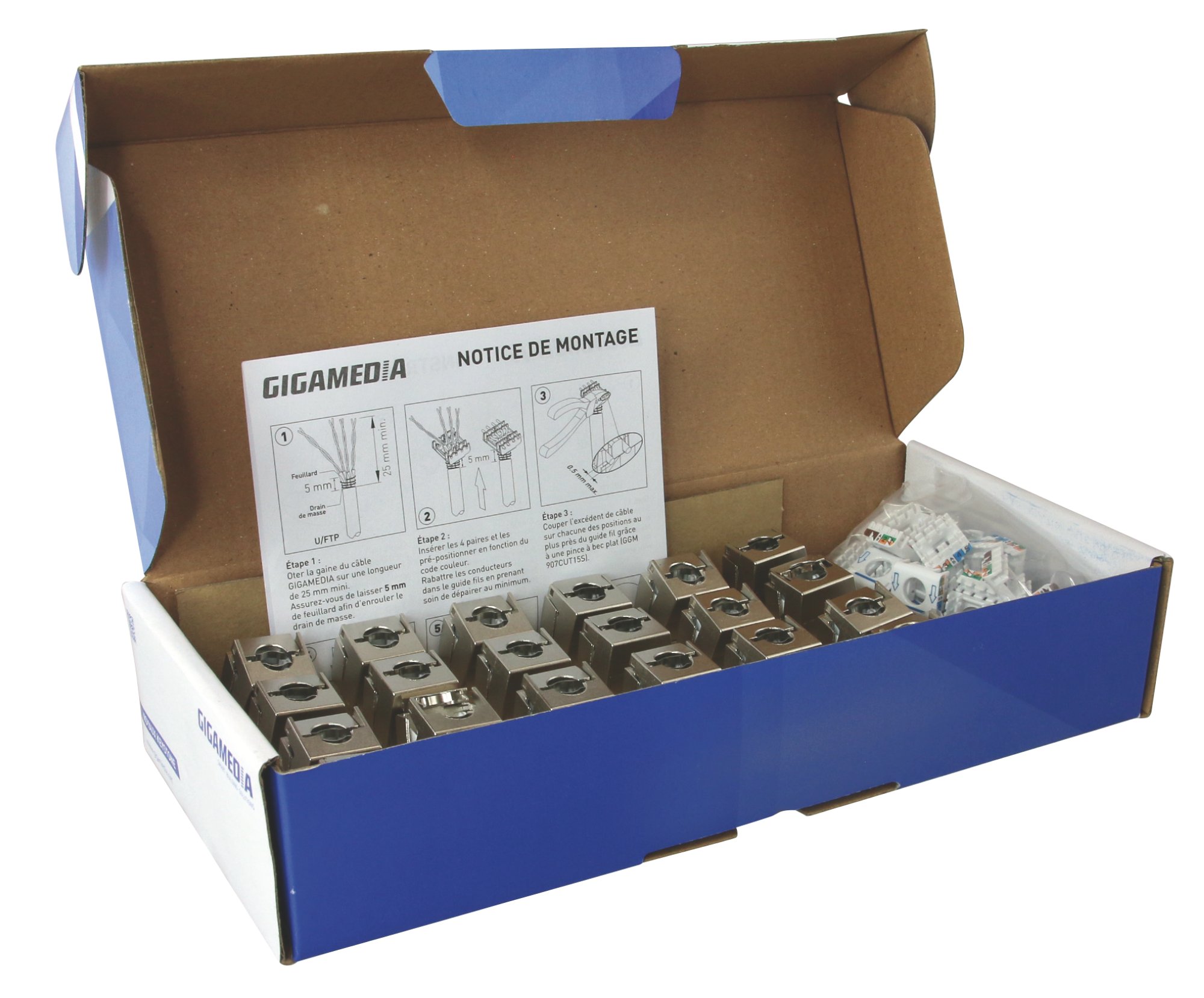

Pack of 24 screened jacks, small form factor, CAT6A STP 10G Ed2.2 4PPoE

New small form factor jack, tool free connection offering quick and efficient installation It is certified CAT6A and 4 PPoE by an independent laboratory. The body of the jack comprises a metal alloy offering excellent characteristics of elasticity, conductivity and corrosion resistance. The contacts are formed and positioned to reduce unwanted coupling between pairs and reduce the crosstalk. The completely automated production of printed circuits and a thorough inspection at the end of production guarantees the homogeneity of the fabrication. Disposing of “tool-free connection” technology the jack requires no insertion tool, which simplifies and reduces assembly time. It is also equipped with a 360° rear ground connection Finally, its compact design (ultra-reduced depth of 28 mm) allows space to be optimised in the workstation trunking (facilitates the cable bending radius) and in the control panel with a 24 port solution in a 19″ rack 5U. Possibility to include a moveable white anti-dust shutter

Color code	T568A/B
Number of contacts	8
Connector type	RJ45
Applications	IEEE802.3 : 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T IEEE 802.3af/at/bt (PoE/PoE+/4PPoE)
Core shield	Shielded
Category	6A
Standards	ANSI/TIA-568.2-D ; EN 50173 ; ISO/IEC 11801
Connection mode	Toolless
Pins quality	50 micron gold contacts
Jauge_accepted_code_article	22/24
Dust cover	Yes
Packaging	Pack of 24pcs
Model	Bus (jack)
Shielded	Yes
Connection type	Other
Specific tooling	No
Adapted to round cables	Yes
Adapted to flat cables	No
Adapted to stranded cables	Yes
Adapted to solid cables	Yes
Colour	Silver
Transparent	No
AWG range	22 - 26
Compatible with Grade2TV according to XP-C 90-483	Yes
Compatible with Grade3TV according to XP-C 90-483	Yes
