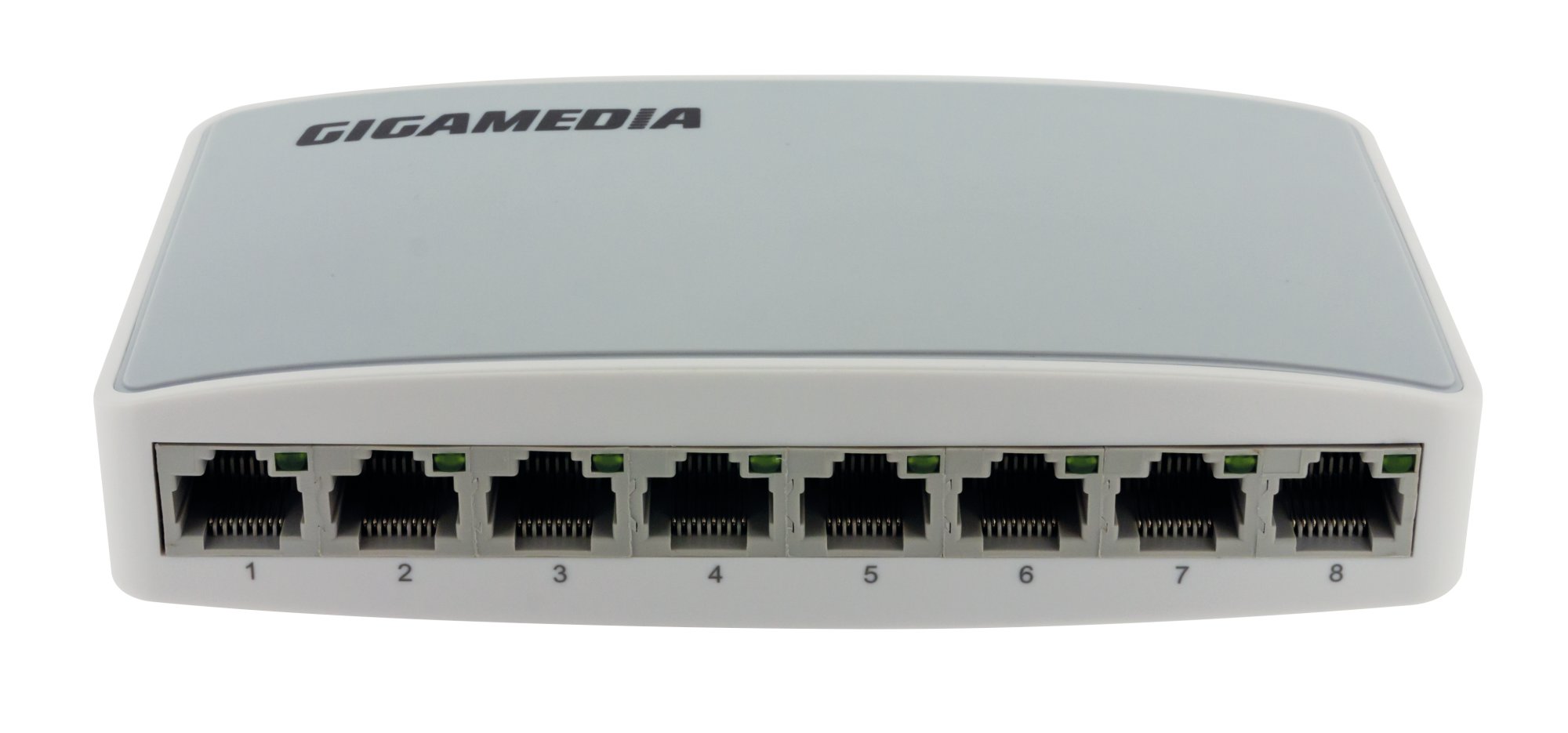

GGM NE808XR

Unmanaged Switch 8-port 10/100

The GIGAMEDIA GGM NE808XR is an unmanaged switch equipped with 8 ports 10/100 Mbps, designed to improve the performance of small working groups. Plug and play, simple and economical to install, it meets perfectly the requirements of bandwidth for modern networks. All the ports of the GGM NE808XR support MDI/MDI-X auto-negotiation or even data flow 802.3x minimising lost packets on the network.

Read more
Buy at Rexel
The GIGAMEDIA GGM NE808XR is an unmanaged switch equipped with 8 ports 10/100 Mbps, designed to improve the performance of small working groups. Plug and play, simple and economical to install, it meets perfectly the requirements of bandwidth for modern networks. All the ports of the GGM NE808XR support MDI/MDI-X auto-negotiation or even data flow 802.3x minimising lost packets on the network.
Mdi/mdix auto-negotiation Yes
Non blocking Yes
Transfer method Store and forward
Protocols CSMA/CD
Fanless Yes
Mac address table 1
Extended POE mode No
POE surge protection 0
Power supply type External
Max power consumption (W) 2
Heat Dissipation (Btu/h) 1
MTBF (H) 80000
Operating temperature range From 0 to 55°C
Storage Temperature (°C) -20 - 75
Operating Humidity (% - non condensing) 10 - 90
Storage Humidity (% - non condensing) 5 - 90
Ethernet Yes
Number of ports 10/100 Mbps RJ45 8
Power over Ethernet (PoE) None
Max. PoE power 2 W
Mounting method Desk type
Layer 2 No
Layer 3 No
Manageable No
IP protection IP30
Height 32 mm
Width 140 mm
Depth 78 mm
Compatible with Grade2TV according to XP-C 90-483 No
Compatible with Grade3TV according to XP-C 90-483 No

Product information

Data sheet
