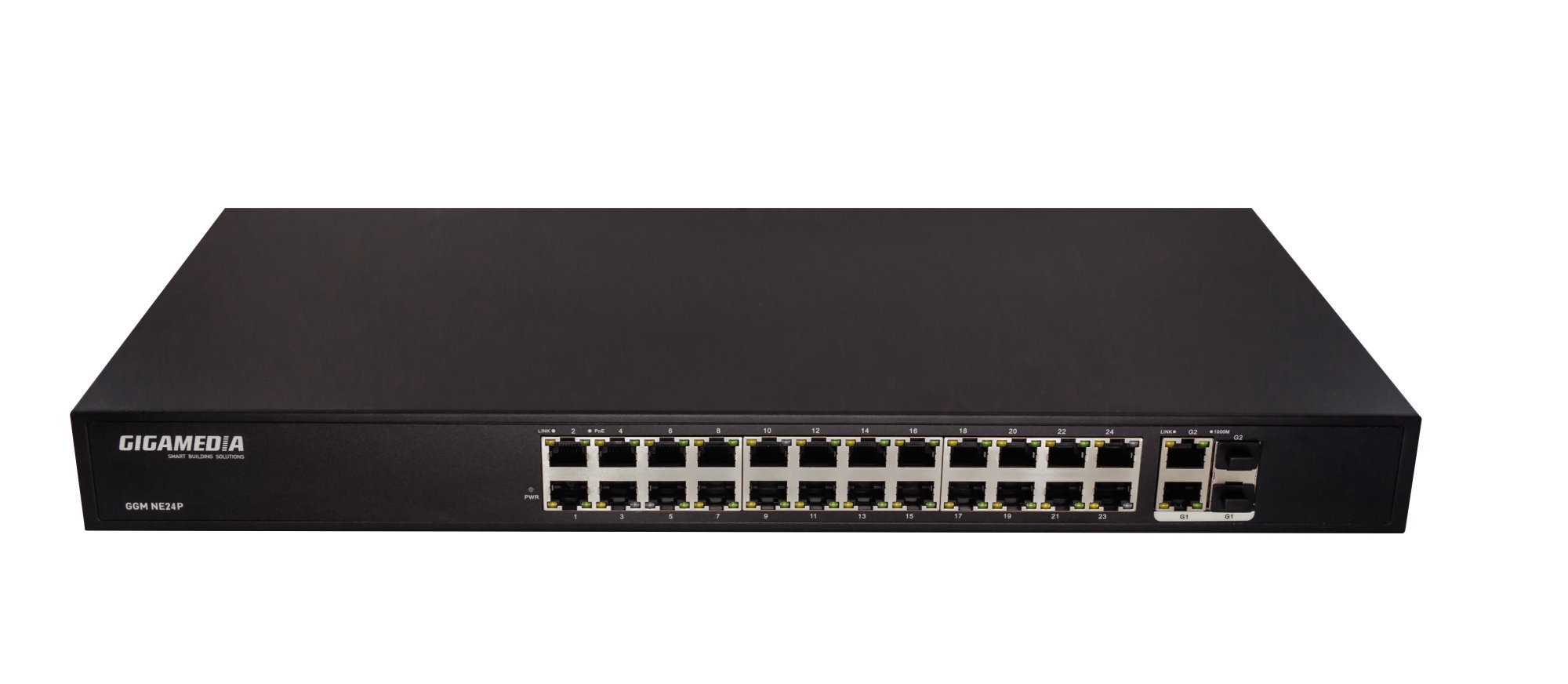

GGM NE24P

Unmanaged PoE+ Switch 24-port 10/100 (370W)

The range of GIGAMEDIA unmanaged Gigabit PoE switches allow you to extend your network at lower cost while offering increased speed. Available in multiple formats, office or rack mounted, this range of switches is available in 4 to 24 port configurations. In order to guarantee the reliability that is needed, the unmanaged GIGAMEDIA Gigabit switches have been rigorously tested. The high PoE capacity of 65W and 370W allows you to supply all the IP peripherals such as cameras, WiFi access points or IP telephones. They will be the perfect companion for all your projects going from homes to small businesses.

Mdi/mdix auto-negotiation	Yes
Non blocking	Yes
Transfer method	Store and Forward
Protocols	CSMA/CD
Fanless	No
Mac address table	16
POE buget (W)
Extended POE mode	No
POE surge protection	4
Power supply type	Built-in
Max power consumption (W)	380
Heat Dissipation (Btu/h)	1
MTBF (H)	100000
Operating temperature range	From 0 to 55°C
Storage Temperature (°C)	-20 - 75
Operating Humidity (% - non condensing)	10 - 90
Storage Humidity (% - non condensing)	5 - 90
Ethernet	Yes
Number of ports 10/100 Mbps RJ45	24
Number of combination-ports RJ45/Mini GBIC	2
Power over Ethernet (PoE)	802.3 at (PoE+)
Number of ports PoE	24
Max. PoE power	380 W
Mounting method	482.6 mm (19 inch) mounting
Layer 2	No
Layer 3	No
Manageable	No
IP protection	IP30
Height	44 mm
Width	440 mm
Depth	225 mm
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No
