GGM KITIP816CDM5MP

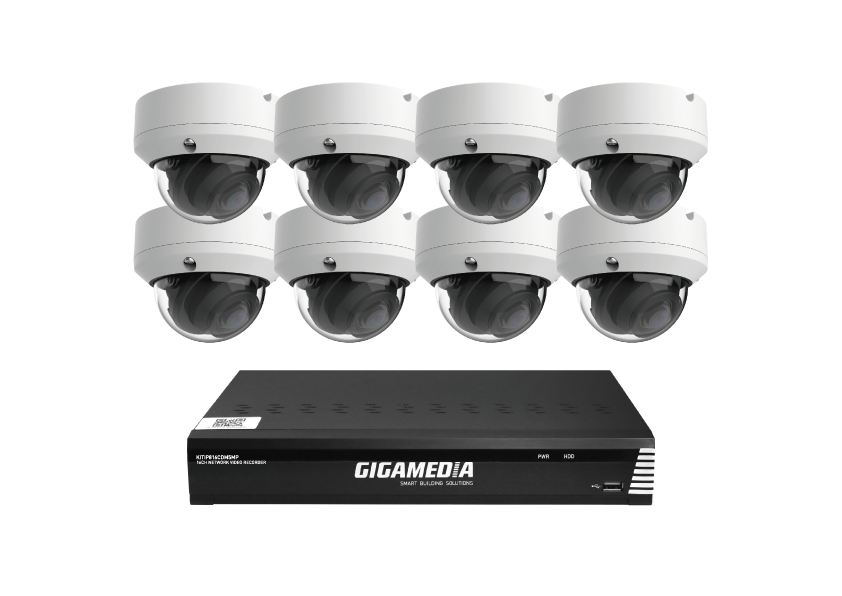

Videosurveillance Kit 8 mini dome 5MP cameras + 1 NVR 16 channels PoE + 4 TB HDD

This kit will bring you to CCTV easily.
This kit is composed by one NVR 8 channels PoE with 2 Tb Hard drive. It is possible to record video streams up to 8 MP (4K) It is delivered with 4 bullets cameras with 5 MP resolution, lens 2.8 mm and Infrared can go up to 30 m . You will be able to see colored pictures even in low light condition thanks to the 0,004 lux sensitivity of the camera. Microphone is integrated for remote doubt removal. You can add 4 additional cameras that are part of the GIGAMEDIA range (IPC)
Analytics functions will bring you more added value to your videosurveillance system by decreasing the false alarm rate.
It is possible to classify people and vehicle to limit untimely outdoor detections.
ANALYTICS FUNCTIONS ARE THE FOLLOWING *:

Human & Vehicle detection
Face detection
Perimeter intrusion
Line crossing
Object detection
Cross counting
Heat Map
Crowd density
Queue length detection
Rare Sound Detection

The friendly interface will help you to manage the system. The first basic configuration can be done in less than 10 minutes GGM VIEW app will connect to the NVR remotely with your smartphone to see live view, playback and alarms. You can also receive push notifications in case of alarm. This premium kit will give you full satisfaction for the security of your office.
* All Analytics functions can’t be activated at the same time in one camera.

Installation	Interior Exterior
Number of Digital input	8
Number of Digital output	1
Continous recording	110 Mbps
Power Consumption	8 W
Form factor	Dome
Format	Desktop
Infrared lighting distance (m)	20
Intelligent analysis functions supported	Yes
LAN	16
Max recording resolution	4 K
Number of channels	16
Number of frames/sec.	30
HDD slots	1 (4 Tb included)
Operating temperature range	-10° +50°C
Ethernet RJ45 LAN Port	16
Ethernet RJ45 WAN Port	1
IP Protection	IP67
Resolution	5 MP
Sensitivity	Color 0.004lux @ F1.6(AGC ON), B/W 0 lux @ IR ON
Power supply	48 V DC 1.5 A
Type of sensor	SC500AI 1/2.7"CMOS Progressve
Video compression	H.265+, H.265, H.264+, H.264 and MJPEG
Horizontal viewing angle (°)	110 °
WAN	1
Wdr (wide dynamic range)	120 dB
Weight (kg)	9.5
Number of cameras	8
With IR lamp	Yes
Picture system	PAL
Property picture system	Colour
Number of pixels (Megapixel)	5
Integrated power-supply for cameras	No
Transmission technique	TCP/IP
Wired camera connection	Yes
Wireless camera connection	No
Type of storage medium	Hard disc
Max. number of video inputs	16
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
