GGM KITIP24C5MP

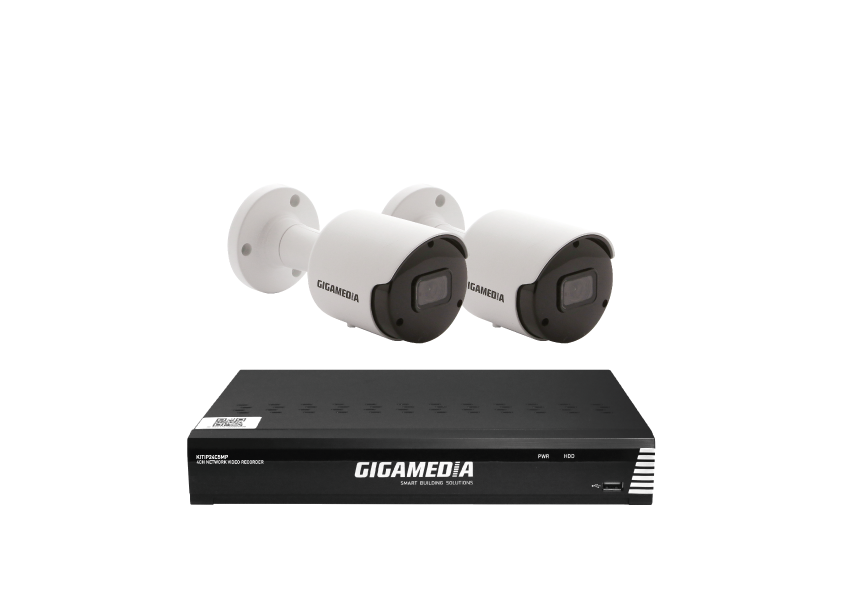

Videosurveillance kit 2 bullets 5MP cameras + 1 NVR 4 channels PoE + 1 TB HDD

This solution allows you to take the first steps in video surveillance. The kit comprises a 4 channel PoE recorder with integral 1Tb hard disk. It is delivered with 2 5MP tube cameras with 2.8mm lens and an IR of 20 m. You can add 2 additional cameras, part of the GIGAMEDIA (IPC) range. The intuitive interface allows rapid understanding of the product and its configurations is done in less than 10 minutes. With the GGM VIEW application, you can watch the recording remotely on your smartphone. Guid-Handbook Eng

Installation	Interior Exterior
Number of Digital input	0
Number of Digital output
Continous recording	40mbps
Power Consumption	7w
Form factor	Tube
Format	Desktop
Infrared lighting distance (m)	20
Intelligent analysis functions supported	No
LAN
Max recording resolution	8mp (4k)
Number of channels	4
Number of frames/sec.	15
HDD slots	1 (1 Tb included)
Operating temperature range	From -30 to 55°C
Ethernet RJ45 LAN Port	4 x 100mbps poe
Ethernet RJ45 WAN Port	1 x 1000mbps
IP Protection	IP66
Resolution	5mp (2542 x 1944 )(2592 x 1944)
Sensitivity	0.05 lx
Power supply	12 vdc
Type of sensor	1/2.7 progressive cmos sc5035
Video compression	H.265 and H.264
Horizontal viewing angle (°)
WAN
Wdr (wide dynamic range)	No
Weight (kg)	3.3
Number of cameras	2
With IR lamp	Yes
Property picture system	Colour
Number of pixels (Megapixel)	5
Integrated power-supply for cameras	No
Transmission technique	TCP/IP
Wired camera connection	Yes
Wireless camera connection	No
Type of storage medium	Hard disc
Max. number of video inputs	4
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
