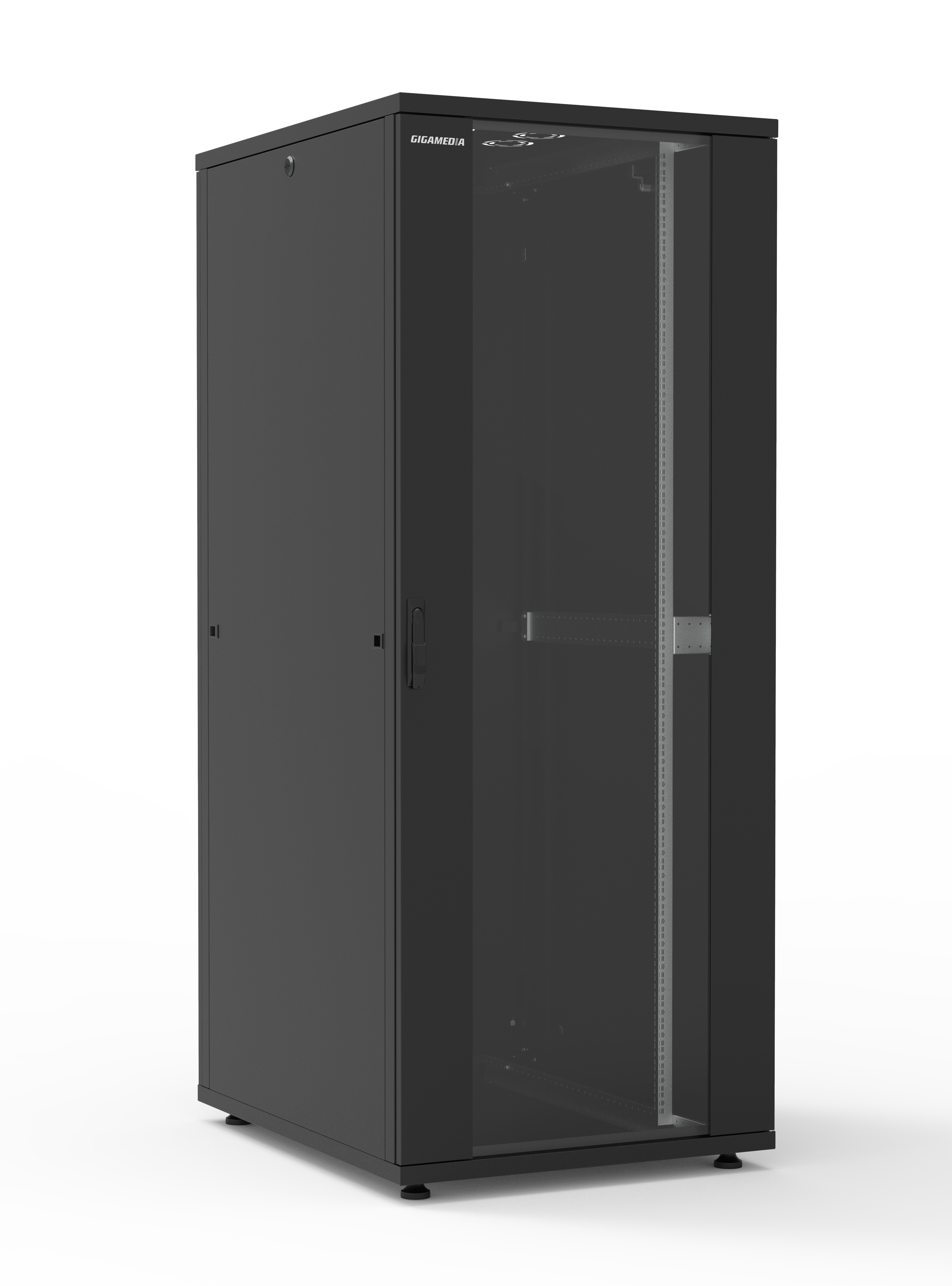

RACK INIRACK 42U 800X1000 black

A product optimised to meet to the essential.

Type	Cabling
Frame	Steel, mechanically screwed
Mounting profiles	Two 19″ mounting profiles adjustable in depth (zinc plated), “U” markings, 9.5 x 9.5 mm perforations
Front door	Reversible securit glass door with side profiles, can be opened up to 190°, locked by using swing handle with key lock (N°333)
Rear panel	Removable, locked by using 2 latches and key lock
Side panels	Removable, locked by using 2 latches and key lock
Ground contact	Adjustable feet (over 4 cm)
RAL	9005
Protection (IP)	20
Load capacity	500
Earthing kit included	No
Base	Full, with rear and sides pre-cut for cable entry
Capacity (U)	42
Depth (mm)	1000
Height (mm)	2020
Width (mm)	800
Roof	With ventilation holes, rear and sides pre-cut for cable entry
Mounting level	Front and rear
Type of profile rail	L-shaped
Number of doors	1
Type of ventilation	Passive
Width	800 mm
Height	2033 mm
Depth	1000 mm
Modular spacing	482.6 mm (19 inch)
Height (U)	42
Max. load capacity	500 kg
With roof plate	Yes
With earthing	No
With front door	Yes
Material front door	Glass
Front door locking system	One point
With rear door	No
With glazed door	No
With sidewall	Yes
With base	No
With vertical cable management	No
Material	Steel
Surface finishing	Powder coating
Colour	Black
Model	With permanent frame
Demountable	Yes
IP protection	IP20
