A product optimised to meet to the essential.
| Type | Cabling |
|---|---|
| Frame | Steel, mechanically screwed |
| Mounting profiles | Two 19″ mounting profiles adjustable in depth (zinc plated), “U” markings, 9.5 x 9.5 mm perforations |
| Front door | Reversible securit glass door with side profiles, can be opened up to 190°, locked by using swing handle with key lock (N°333) |
| Rear panel | Removable, locked by using 2 latches and key lock |
| Side panels | Removable, locked by using 2 latches and key lock |
| Ground contact | Adjustable feet (over 4 cm) |
| RAL | 9005 |
| Protection (IP) | 20 |
| Load capacity | 500 |
| Earthing kit included | No |
| Base | Full, with rear pre-cut for cable entry |
| Capacity (U) | 26 |
| Depth (mm) | 600 |
| Height (mm) | 1309 |
| Width (mm) | 600 |
| Roof | With ventilation holes and rear pre-cut for cable entry |
| Mounting level | Front and rear |
| Type of profile rail | L-shaped |
| Number of doors | 1 |
| Type of ventilation | Passive |
| Width | 600 mm |
| Height | 1322 mm |
| Depth | 600 mm |
| Modular spacing | 482.6 mm (19 inch) |
| Height (U) | 26 |
| Max. load capacity | 500 kg |
| With roof plate | Yes |
| With earthing | No |
| With front door | Yes |
| Material front door | Glass |
| Front door locking system | One point |
| With rear door | No |
| With glazed door | No |
| With sidewall | Yes |
| With base | No |
| With vertical cable management | No |
| Material | Steel |
| Surface finishing | Powder coating |
| Colour | Black |
| Model | With permanent frame |
| Demountable | Yes |
| IP protection | IP20 |
Product information
Over 7000
part numbers
Exclusively distributed
by Rexel
Over 100 employees
worldwide
30 years of expertise
at your service
Tailor-made services
for your projects
GGM IR2666N

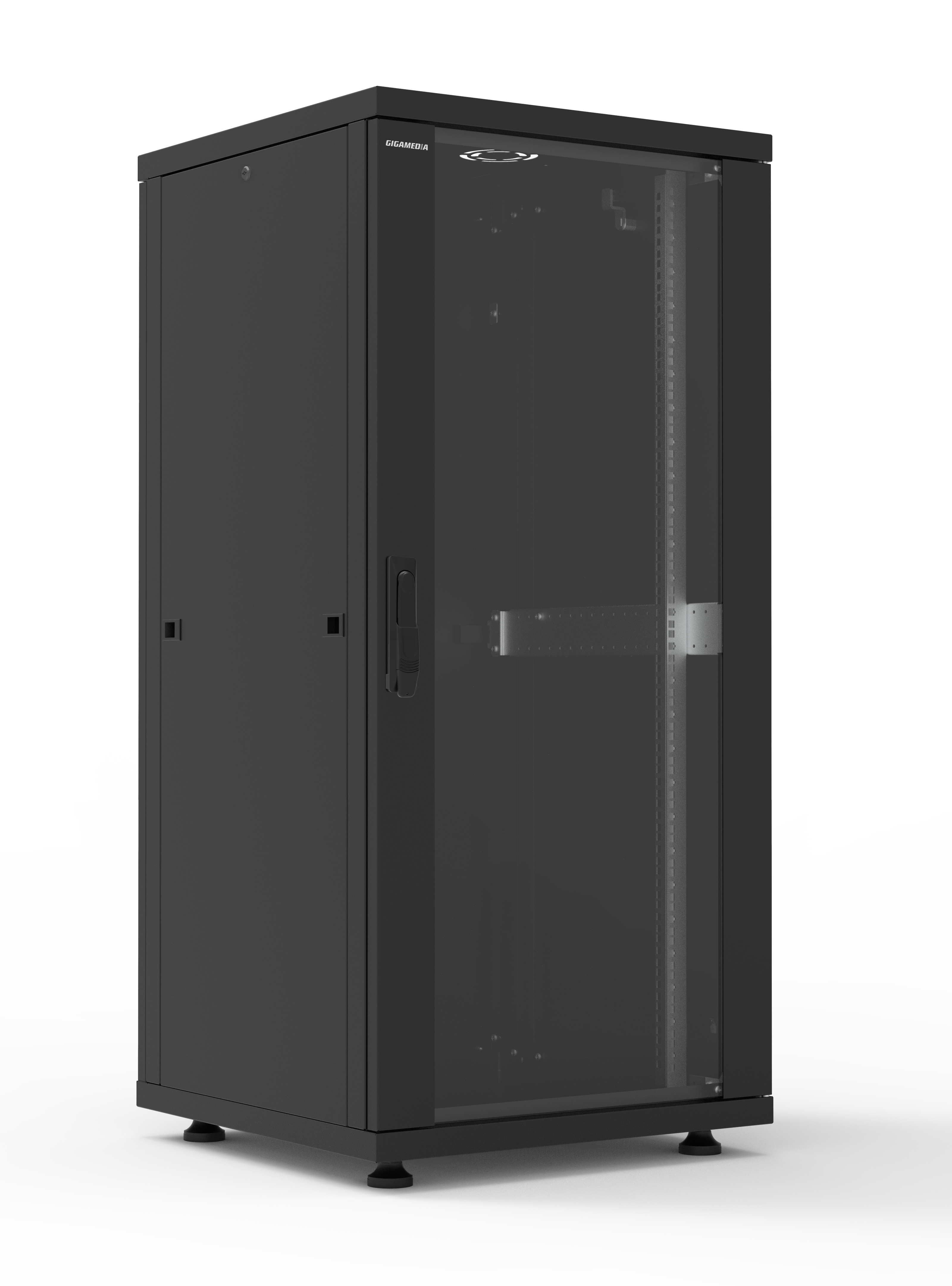

RACK INIRACK 26U 600X600 black
