GGM IPCLD2F28

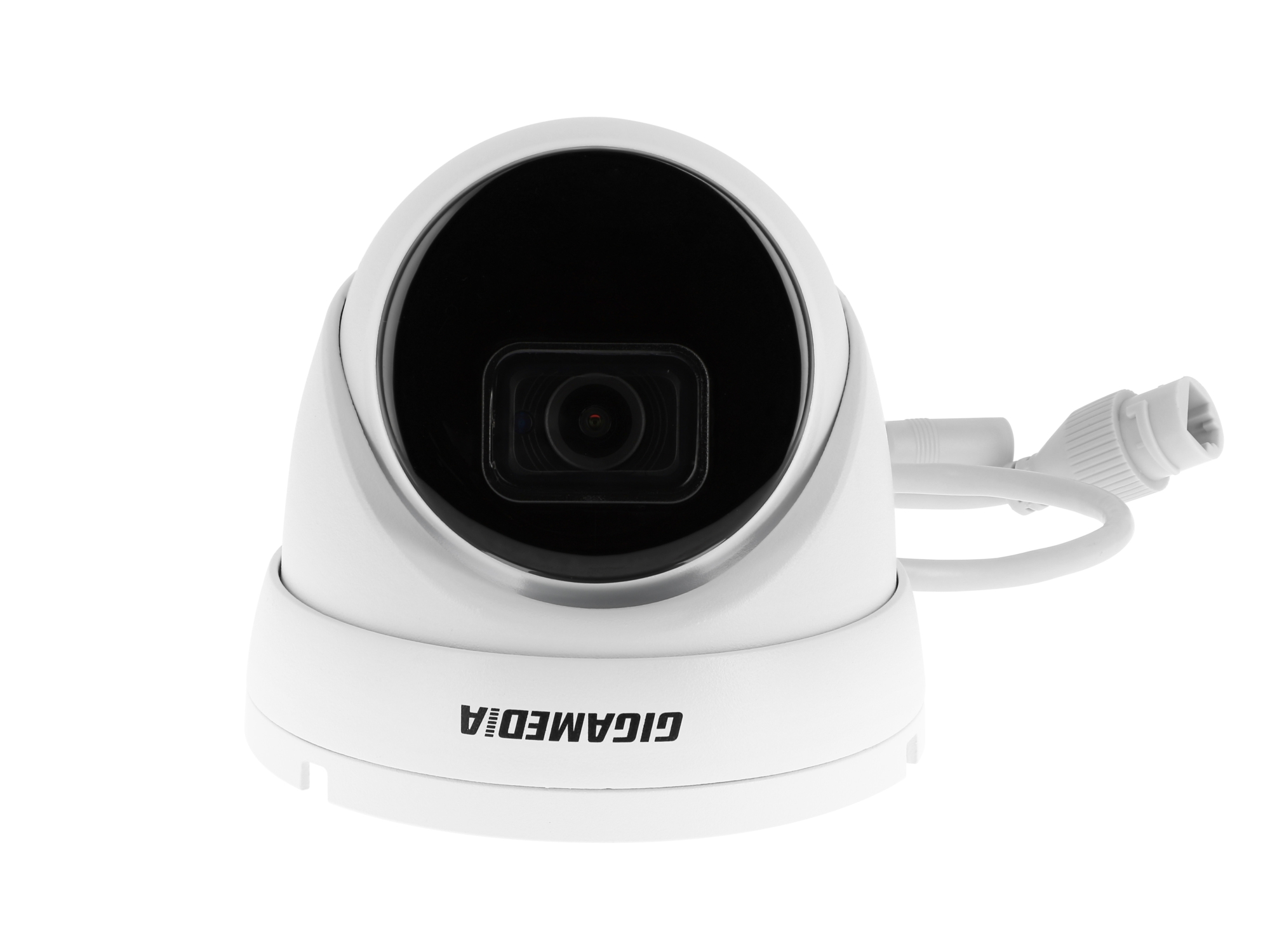

CAMERA IP INITIO 2MP DOME FF 2.8

The GIGAMEDIA cameras give an excellent price/performance ratio for video surveillance installations. The IPCLD2F28 is a discrete camera offering a wide angle of view. It has IR lighting up to 20 m. The quality of the night vision is ensured by using SMD LED This camera can be installed indoors as well as out and will provide a quality image in daytime or at night. It has embedded intelligent functions which improve the performance of your installation. This camera is ideal for shops, restaurants, schools ...

Camera type	Dome eyeball
CPU	SSC30KQ
Flash memory	128MB NAND
RAM	256 MB
Sensor	IMX307, 1/2.8" CMOS Progressive
Sensor max. resolution	1920 x 1080
Lens type	Fixed lens
Focal lenght (mm)	2.8 mm
Focal length	2.8mm
Detect 5%	34
Observe 10%	17
Recognize 20%	9
Identify 40%	4
Aperture	F1.6
Auto iris	Fixed Iris
Horizontal viewing angle (°)	105
Vertical viewing angle (°)	55
Diagonal viewing angle (°)	126°
Micro SD card slot	Yes
Digital input	No
Number of Digital input	0
Digital output	No
Number of Digital output	0
Audio in	No
Number of audio in	0
Audio out	No
Number of audio out	0
Built in microphone	Yes
Built-in speaker	No
Reset Button	Yes
POE	802.3 af
Shutter speed	1/5 - 1/20000s
Wdr (wide dynamic range)	120 dB
Day/Night	Yes
Day / night switch	Automatic, manual, schedule
Min. illumination	Color 0.002lux @ F1.6(AGC ON), B/W: 0 lux @ IR ON
IR Range	20 m
Embedded storage	Micro SD card slot max 256 GB
Video compression	H.265+, H.265, H.264+, H.264 and MJPEG
Resolution and framerate	1920 x 1080@60 fps
Stream	3 simultaneous streams
SNR	40
Day/ Night mode	Yes
IR management	Yes
Picture flip/ mirror	Yes
Corridor mode	Yes
BLC	Yes
HLC	Yes
3D noise reduction	Yes
Image setting	Brightness, Sharpness, Saturation, Contrast, Hue, White balance
WDR management	Yes
Privacy mask	4 zones
Defog	No
ROI	Yes
Simultaneous connection on web	9
Supported protocols	IPv4/IPv6, TCP/IP, SNMP, HTTPS, FTP, PPPoE, HTTP, DDNS, DHCP, DNS, UPnP, RTP/RTSP, SMTP, NTP, UDP
Interface	RJ-45 10/100 Mbps
Onvif version	ONVIF (Profile S/G/T)
PAN (°)	0
Tilt	0
VPAN (°/s)	0
VTILT (°/s)	0
Number of preset	0
Number of patrols	0
3D Positioning	No
Smart tracking	No
Face detection	Yes
Human and vehicle detection	Yes
Perimeter Detection Intrusion	Yes
Crossing Line Detection	Yes
Stationnary Object Detection	Yes
Cross Counting	Yes
Heat Map	Yes
Crowd Density Detection	Yes
Queue length detection	Yes
Licence plate Detection	Yes
Rare Sound Detection	Yes
Motion Detection	Yes
Manual triggering	Yes
Periodical Trigger	Yes
System boot	Yes
Recording notification	Yes
Camera tamper detection	Yes
Alarm action	Yes
Flash Alarm	No
Event notification using HTTP, SMTP, FTP, NAS server	Yes
File upload via HTTP, SMTP, FTP, NAS server and MicroSD card	Yes
Connector	RJ-45, 12VDC
Led indicator	0
Power supply	PoE (802.3af) or 12 VDC
Power Consumption
Diameter (mm)	100
Depth (mm)
Width (mm)
Height (mm)	90
Weight (kg)	0.415
Material
IP Protection	IP67
Operating temperature range	From -35 to 60°C
Storage Temperature (°C)	De -35 à 60°C
Operating Humidity (% - non condensing)	95%
Warranty period	24
OS	Microsoft Windows, MAC
Web browser	IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above
Mounting method	Wall/ceiling
Scope of application	Universal
Picture system	PAL
Property picture system	Colour
Colour	White
Wireless	No
Type of interface	Other
With IR lamp	Yes
Max. infrared reach	20 m
Vandal proof	No
Supply voltage	11 - 13
Voltage type	DC
