GGM IPCF12

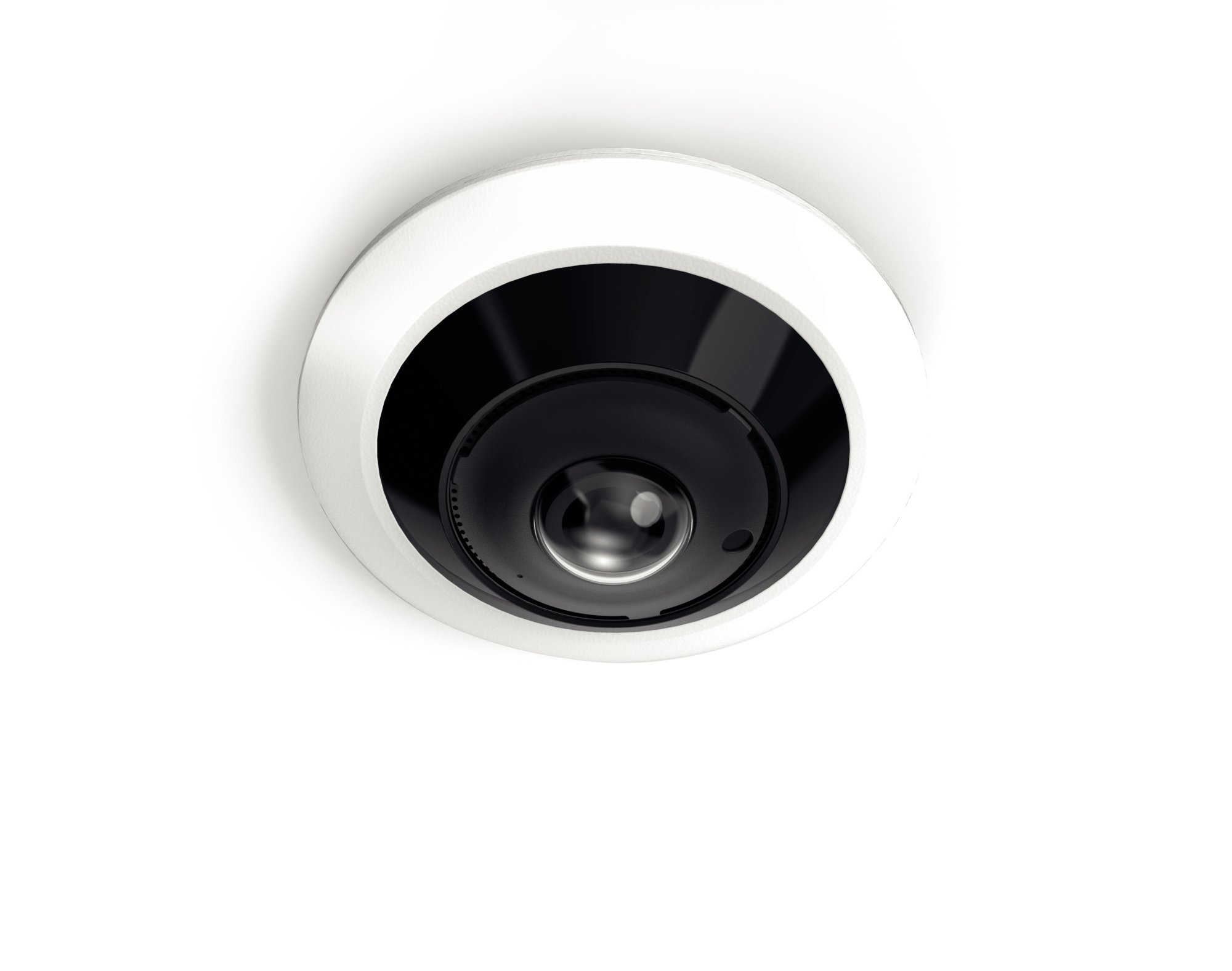

IP PoE Fisheye camera 12MP IR 10m Lens 1.1 mm

The fisheye camera provides a 360° angle of view. The 12 MP resolution will allow zooming in easily in the picture while maintaining a high level of detail. The Infrared can light up to 10m. Built-in microphone can help you with remote check in case of problem. This device is IP66 rated and also IK10 for installation in harsh environment. Many analytics functions ( AI) are supported by the camera: Face detection Human & vehicle detection Perimeter intrusion Crossing line detection Object detection Cross counting Heatmap Crowd density detection Queue lenght detection License plate detection Rare sound detection Picture can…

Face detection
Human & vehicle detection
Perimeter intrusion
Crossing line detection
Object detection
Cross counting
Heatmap
Crowd density detection
Queue lenght detection
License plate detection
Rare sound detection

Picture can be dewarped through the web interface of the NVR and also the mobile app GGM VIEW.
This discrete camera can be used in open spaces where you need to have 360° surveillance

Camera type	Fisheye
CPU	SSC339G
Flash memory	128MB NAND
RAM	256MB*2
Sensor	OV12895-J94A, 1/2.3"CMOS Progressive
Sensor max. resolution	4000(H)×3000(V)
Lens type	Fixed lens
Focal lenght (mm)	1.1 mm
Aperture
Auto iris	Fixed Iris
Horizontal viewing angle (°)	180°
Vertical viewing angle (°)	360°
Diagonal viewing angle (°)	180°
Micro SD card slot	Yes
Digital input	Yes
Number of Digital input	1
Digital output	Yes
Number of Digital output	1
Audio in	No
Number of audio in	0
Audio out	No
Number of audio out	0
Built in microphone	Yes
Built-in speaker	No
Reset Button	Yes
POE	802.3 af
Shutter speed	1/5 - 1/20000s
Wdr (wide dynamic range)	DWDR
Day/Night	Yes
Day / night switch	Automatic, manual, schedule
Min. illumination	Color 0.01lux @ F1.6(AGC ON) , B/W: 0 lux @ IR ON
IR Range	10 m
Embedded storage	Micro SD card slot max 256 GB
Video compression	H.265+, H.265, H.264+, H.264 and MJPEG
Resolution and framerate	4000x3000@15fps, 3000x3000@25fps
Stream	3 simultaneous streams
SNR
Day/ Night mode	Yes
IR management	Yes
Picture flip/ mirror	Yes
Corridor mode	Yes
BLC	Yes
HLC	Yes
3D noise reduction	Yes
Image setting	Brightness, Hue, White balance, Contrast, Saturation, Sharpness
WDR management	No
Privacy mask	4 zones
Defog	No
ROI	Yes
Simultaneous connection on web	9
Supported protocols	DHCP, DNS, TCP/IP, FTP, DDNS, RTP/RTSP, UDP, NTP, IPv4/IPv6, SMTP, SNMP, PPPoE, HTTPS, HTTP, UPnP
Interface	RJ-45 10/100 Mbps
Onvif version	ONVIF (Profile S/G/T)
PAN (°)	0
Tilt	0
VPAN (°/s)	0
VTILT (°/s)	0
Number of preset	0
Number of patrols	0
3D Positioning	No
Smart tracking	No
Face detection	Yes
Human and vehicle detection	Yes
Perimeter Detection Intrusion	Yes
Crossing Line Detection	No
Stationnary Object Detection	Yes
Cross Counting	Yes
Heat Map	Yes
Crowd Density Detection	Yes
Queue length detection	Yes
Licence plate Detection	Yes
Rare Sound Detection	Yes
Motion Detection	Yes
Manual triggering	Yes
Periodical Trigger	Yes
System boot	Yes
Recording notification	Yes
Camera tamper detection	Yes
Alarm action	Yes
Flash Alarm	No
Event notification using HTTP, SMTP, FTP, NAS server	Yes
File upload via HTTP, SMTP, FTP, NAS server and MicroSD card	Yes
Connector	RJ-45, 12VDC
Led indicator
Power supply	PoE (802.3af) or 12 VDC
Power Consumption	9,6W
Diameter (mm)	120
Depth (mm)	0
Width (mm)	0
Height (mm)	55
Weight (kg)	0.4
Material	Metal
IP Protection	IP66
Operating temperature range	From -35 to 60°C
Storage Temperature (°C)	De -35 à 60°C
Operating Humidity (% - non condensing)	95%
Warranty period	24
OS	Microsoft Windows, MAC
Web browser	IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above
Model	Other
Mounting method	Wall/ceiling
Scope of application	Universal
Power over Ethernet (PoE)	802.3 af (PoE)
Picture system	PAL
Property picture system	Colour
Focal size	1,6 - 1,6
Colour	White
Wireless	No
Type of interface	None
Number of pixels (Megapixel)	12
Memory capacity	256 Go
With lens	Yes
With IR lamp	Yes
Max. infrared reach	5 m
Vandal proof	No
With video motion detector	Yes
IP protection	IP66
Horizontal field of view	360 - 360
Vertical field of view	360 - 360
Power consumption	7 W
Supply voltage	12 - 12
Diameter	120 mm
Height	55 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
