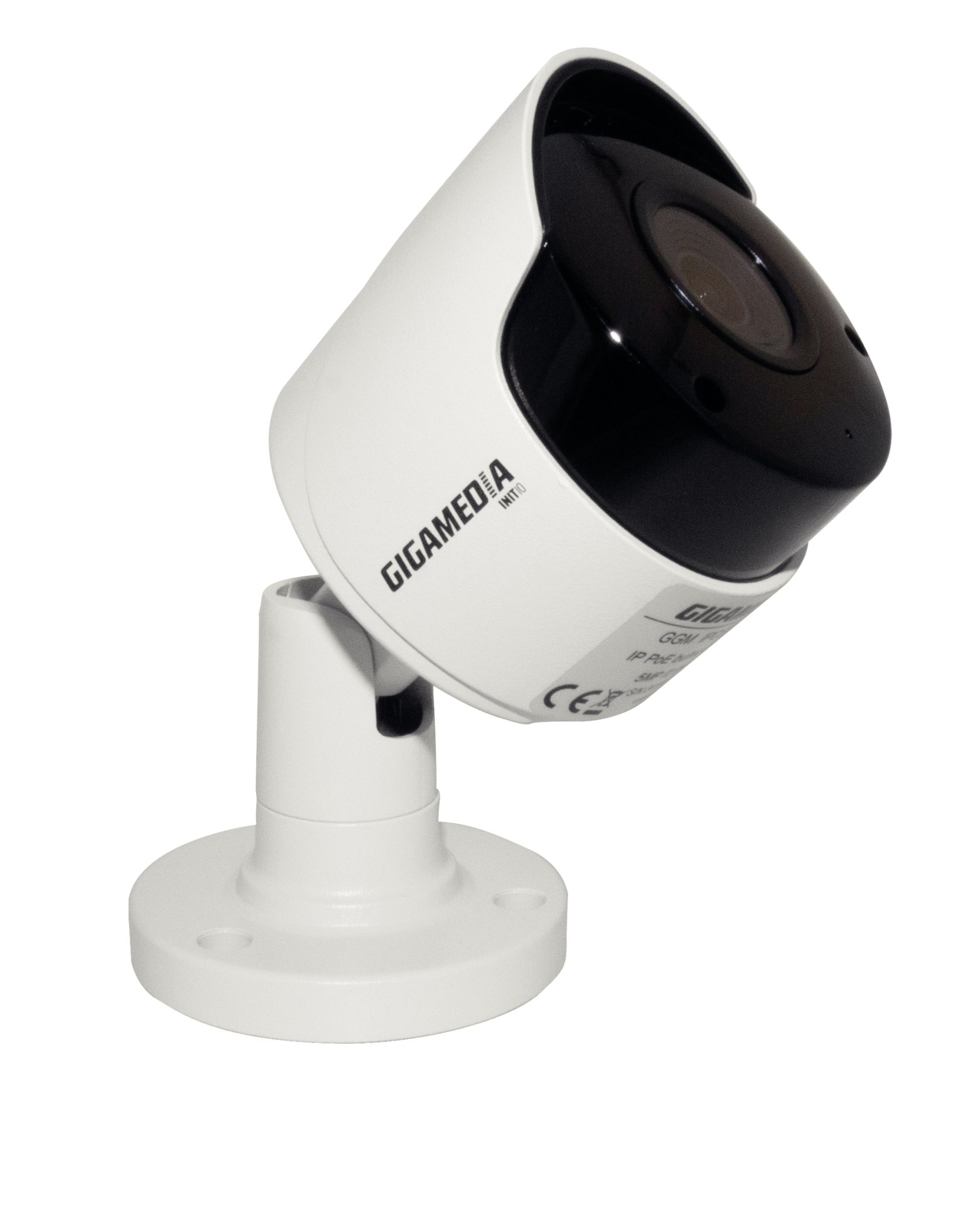

GGM IPCEB2F28

IP POE bullet camera 2MP f2.8mm

The GIGAMEDIA INITIO cameras give an excellent price/performance ratio for video surveillance installations. The IPCEB2F28 is a discrete camera offering a wide angle of view. It has IR lighting up to 20 m. The quality of the night vision is ensured by using SMD LED. This camera can be installed indoors as well as out and will provide a quality image in daytime or at night. It has embedded intelligent functions which improve the performance of your installation. This camera is ideal for shops, restaurants, schools ...

Number of Digital input	0
Number of Digital output	0
Analog video output	No
Audio in	No
Auto iris	Fixed Iris
Ce certification	Yes
Cross Counting	No
CPU	313E
Emc certification	Yes
Face detection	No
Factory default reset button	No
Fcc certification	Yes
Flash memory (mb)	16
Stream	Main stream/sub stream
Focal length	2,8 mm
Infrared lighting distance (m)	20
Line crossing detection	No
SD Card file loading via HTTP	Yes
Manual triggering	Yes
Maximum humidity (%)	90
Min. illumination	Color 0.1lux @ f1.2(agc on); b/w 0 lux @ ir on
Storage Temperature (°C)
Motion Detection	Yes
Number of frames/sec.	30
Number of web connections	5
Aperture	F1.85
Operating temperature range	From -30 to 55°C
Periodical Trigger	Yes
RAM
Rohs certification	Yes
Camera tamper detection	Yes
Sd card slot	No
Sensitivity	0.1 lx
Sensor	Sc2235h 1/2.7" progressive cmos
Shutter speed	1/5 - 1/20000s
Audio out	No
Stationnary Object Detection	No
Power supply	Poe (802.3af) or 12 vdc
Type of focal length	Fixed
Type of sensor	1/2.7" sc2235h progressive cmos
File uploading via FTP	Yes
NAS file uploading via HTTP	Yes
File uploading via mail	Yes
Video compression	H.265 and H.264
Wdr (wide dynamic range)	Digital
Sensor max. resolution
Lens type
Horizontal viewing angle (°)
Vertical viewing angle (°)
Diagonal viewing angle (°)
Full function(SD storage,Alarm Trigger,Audio,Video Output,Reset Button)
POE 802.3AF compatible	No
POE 802.3AT compatible	No
POE 802.3BT compatible	No
Day/Night	No
IR Range	20 m
Embedded storage
Resolution and framerate
SNR
Face Recognition
Human and Vehicle Detection
Perimeter Detection Intrusion	No
Crossing Counting
Heat Map	No
Crowd Density Detection
Queue Length Detection
Licence plate Detection
Alarm triggering
Connector
Power Consumption
Diameter (mm)
Depth (mm)
Width (mm)
Height (mm)
Weight (kg)	0.3
IP Protection
Certification
Operating Humidity (% - non condensing)
Warranty period	24
Wireless	No
Number of pixels (Megapixel)	2
With lens	Yes
With IR lamp	Yes
Vandal proof	No
With video motion detector	Yes
Power consumption	6 W
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
