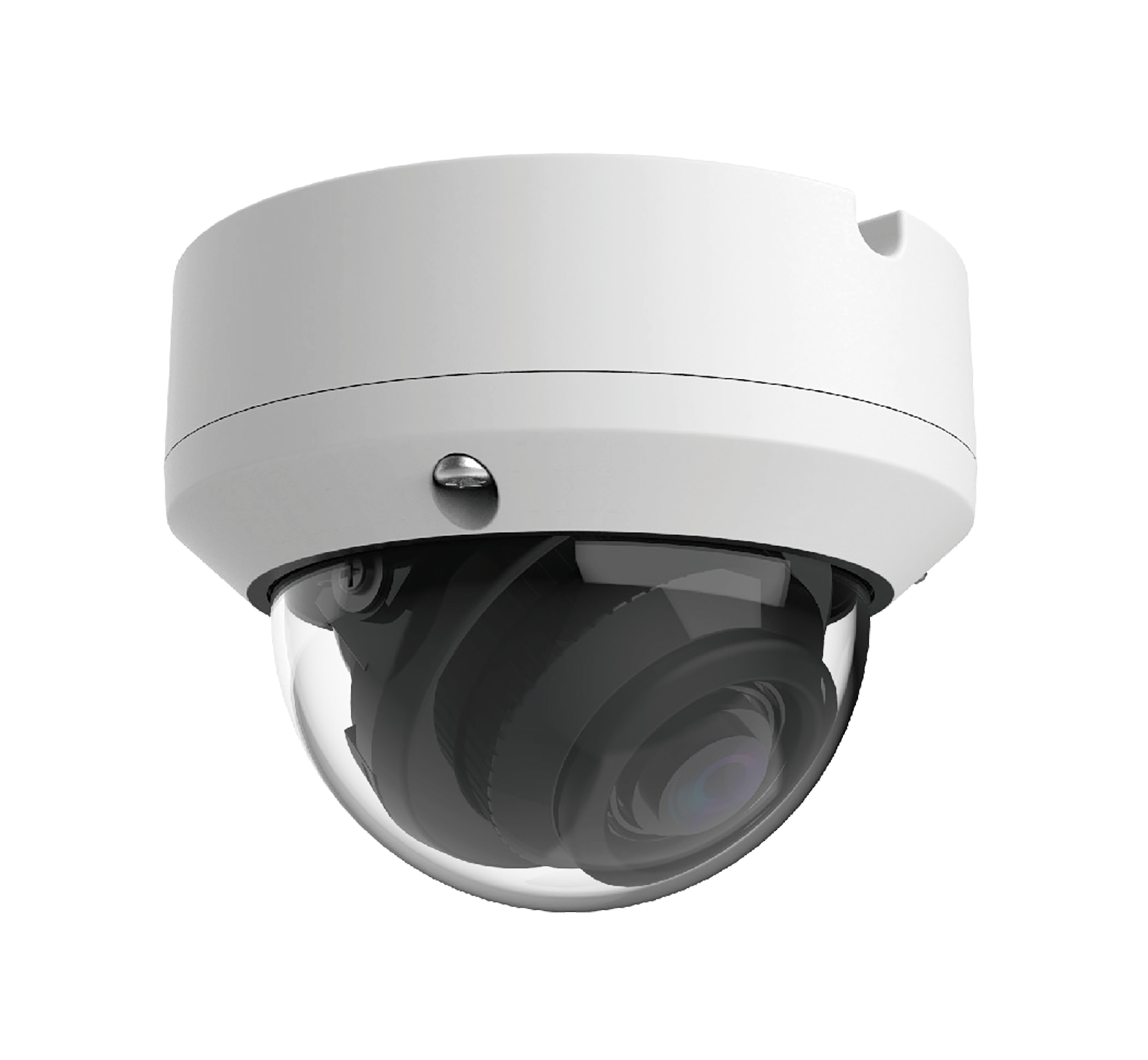

IP PoE Dome camera 5MP IR 20 m, Fixed lens 2.8 mm, built-in mic. - NDAA

Camera type	Dome
CPU	SSC30KQ
Flash memory	128MB NAND
RAM	256 MB
Sensor	SC500AI 1/2.7"CMOS Progressive
Sensor max. resolution	2880 x 1620
Lens type	Fixed lens
Focal lenght (mm)	2.8 mm
Aperture	F1.6
Auto iris	Fixed Iris
Horizontal viewing angle (°)	110°
Vertical viewing angle (°)	58°
Diagonal viewing angle (°)	133°
Micro SD card slot	Yes
Digital input	No
Number of Digital input	0
Digital output	No
Number of Digital output	0
Audio in	No
Number of audio in	0
Audio out	No
Number of audio out	0
Built in microphone	Yes
Built-in speaker	No
Reset Button	Yes
POE	802.3 af
Shutter speed	1/5 - 1/20000s
Wdr (wide dynamic range)	120 dB
Day/Night	Yes
Day / night switch	Automatic, manual, schedule
Min. illumination	Color 0.004lux @ F1.6(AGC ON), B/W: 0 lux @ IR ACTIF
IR Range	20 m
Embedded storage	Micro SD card slot max 256 GB
Video compression	H.265+, H.265, H.264+, H.264 and MJPEG
Resolution and framerate	2880 x 1620 @30 fps
Stream	3 simultaneous streams
SNR
Day/ Night mode	Yes
IR management	Yes
Picture flip/ mirror	Yes
Corridor mode	Yes
BLC	Yes
HLC	Yes
3D noise reduction	Yes
Image setting	Contrast, Saturation, Hue, Sharpness, White balance, Brightness
WDR management	Yes
Privacy mask	4 zones
Defog	No
ROI	Yes
Simultaneous connection on web	5
Supported protocols	RTP/RTSP, DDNS, FTP, TCP/IP, IPv4/IPv6, HTTP, PPPoE, SMTP, UPnP, UDP, NTP, SNMP, DNS, HTTPS, DHCP
Interface	RJ-45 10/100 Mbps
Onvif version	ONVIF (Profile S/G/T)
PAN (°)	0
Tilt
VPAN (°/s)
VTILT (°/s)
Number of preset
Number of patrols
3D Positioning	No
Smart tracking	No
Face detection	Yes
Human and vehicle detection	Yes
Perimeter Detection Intrusion	Yes
Crossing Line Detection	No
Stationnary Object Detection	Yes
Cross Counting	Yes
Heat Map	Yes
Crowd Density Detection	Yes
Queue length detection	Yes
Licence plate Detection	Yes
Rare Sound Detection	Yes
Motion Detection	Yes
Manual triggering	Yes
Periodical Trigger	Yes
System boot	Yes
Recording notification	Yes
Camera tamper detection	Yes
Alarm action	Yes
Flash Alarm	No
Event notification using HTTP, SMTP, FTP, NAS server	Yes
File upload via HTTP, SMTP, FTP, NAS server and MicroSD card	Yes
Connector	RJ-45, 12VDC
Led indicator
Power supply	PoE (802.3af) or 12 VDC
Power Consumption	5.1 W
Diameter (mm)	115
Depth (mm)
Width (mm)
Height (mm)
Weight (kg)	0.556
Material	Metal
IP Protection	IP66
Operating temperature range	From -35 to 60°C
Storage Temperature (°C)	-35°~+ 60°C
Operating Humidity (% - non condensing)	95%
Warranty period	24
OS	Microsoft Windows, MAC
Web browser	IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above
Model	Standard (Fixed)
Mounting method	Wall/ceiling
Scope of application	Universal
Power over Ethernet (PoE)	802.3 af (PoE)
Picture system	PAL
Property picture system	Colour
Focal size	2,8 - 2,8
Colour	White
Wireless	No
Type of interface	None
Number of pixels (Megapixel)	5
Memory capacity	256 Go
With lens	Yes
With IR lamp	Yes
Max. infrared reach	20 m
Vandal proof	No
Impact strength	None
With video motion detector	Yes
IP protection	IP66
Horizontal field of view	110 - 110
Vertical field of view	58 - 58
Power consumption	8 W
Supply voltage	12 - 12
Voltage type	DC
Diameter	115.3 mm
Height	64.3 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
