GGM IPCD5F28

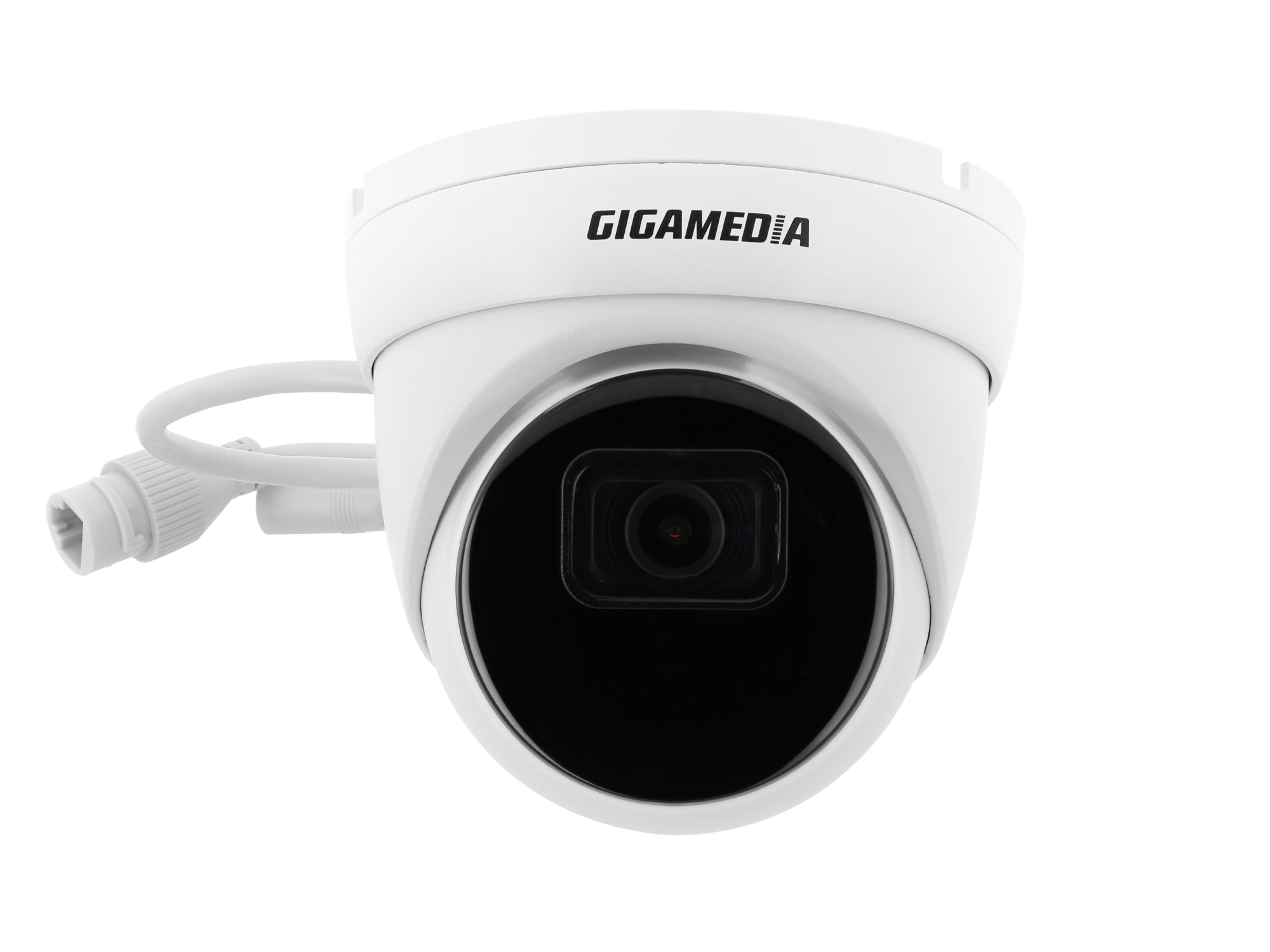

IP PoE Turret Dome camera 5MP IR 30 m, Fixed lens 2.8 mm, built-in mic. – NDAA

GIGAMEDIA provides an excellent value for money ratio for your CCTV projects The IPCD5F28 is a discrete eyeball dome camera that offers wide angle of view and a resolution of 5MP. The infrared is assured by SMD LED and can light up to 30 m. This camera can be used in all conditions (indoor or outdoor) and always provides the best picture quality. Built-in microphone allows you to capture the sound in case of doubt. SD card slot can support Micro SD card up to 256 Gb to store videos and pictures in case of alarm. It also embbeds AI…

GIGAMEDIA provides an excellent value for money ratio for your CCTV projects
The IPCD5F28 is a discrete eyeball dome camera that offers wide angle of view and a resolution of 5MP. The infrared is assured by SMD LED and can light up to 30 m. This camera can be used in all conditions (indoor or outdoor) and always provides the best picture quality.
Built-in microphone allows you to capture the sound in case of doubt. SD card slot can support Micro SD card up to 256 Gb to store videos and pictures in case of alarm.
It also embbeds AI analytics functions to avoid false alarm and offer better analysys of the situation.
AI analytics are the following:

Face detection
Human and vehicle detection
Perimeter intrusion detection
Line crossing detection
Stationnary object detection
Cross counting
Heatmap
Crowd density detection
Queue length detection
Licence plate detection
Rare sound detection
Cross counting

This camera is suitable for home use, small shops, restaurants, schools...

Camera type	dome eyeball
CPU	SSC338G
Flash memory	128MB NAND
RAM	256MB*2
Sensor	OS05A20, 1/2.7"CMOS Progressive
Sensor max. resolution	2880 x 1620
Lens type	Fixed lens
Focal lenght (mm)	2.8 mm
Aperture	F1.6
Auto iris	Fixed Iris
Horizontal viewing angle (°)	110°
Vertical viewing angle (°)	58°
Diagonal viewing angle (°)	133°
Micro SD card slot	Yes
Digital input	No
Number of Digital input	1
Digital output	No
Number of Digital output	1
Audio in	No
Number of audio in	0
Audio out	No
Number of audio out	0
Built in microphone	Yes
Built-in speaker	No
Reset Button	Yes
POE	802.3 af
Shutter speed	1/5 - 1/20000s
Wdr (wide dynamic range)	120 dB
Day/Night	Yes
Day / night switch	Automatic, manual, schedule
Min. illumination	Color 0.003lux @ F1.6(AGC ON), B/W: 0 lux @ IR ON
IR Range	30 m
Embedded storage	Micro SD card slot max 256 GB
Video compression	H.265+, H.265, H.264+, H.264 and MJPEG
Resolution and framerate	2880 x 1620 @30 fps
Stream	3 simultaneous streams
SNR	0
Day/ Night mode	Yes
IR management	Yes
Picture flip/ mirror	Yes
Corridor mode	Yes
BLC	Yes
HLC	Yes
3D noise reduction	Yes
Image setting	Saturation, Hue, Sharpness, Contrast, Brightness, White balance
WDR management	Yes
Privacy mask	4 zones
Defog	No
ROI	Yes
Simultaneous connection on web	3
Supported protocols	SNMP, FTP, DNS, NTP, IPv4/IPv6, DHCP, HTTP, HTTPS, SMTP, UDP, PPPoE, UPnP, RTP/RTSP, TCP/IP, DDNS
Interface	RJ-45 10/100 Mbps
Onvif version	ONVIF (Profile S/G/T)
PAN (°)	0
Tilt	0
VPAN (°/s)	0
VTILT (°/s)	0
Number of preset	0
Number of patrols	0
3D Positioning	No
Smart tracking	No
Face detection	Yes
Human and vehicle detection	Yes
Perimeter Detection Intrusion	Yes
Crossing Line Detection	No
Stationnary Object Detection	Yes
Cross Counting	Yes
Heat Map	Yes
Crowd Density Detection	Yes
Queue length detection	Yes
Licence plate Detection	Yes
Rare Sound Detection	Yes
Motion Detection	Yes
Manual triggering	Yes
Periodical Trigger	Yes
System boot	Yes
Recording notification	Yes
Camera tamper detection	Yes
Alarm action	Yes
Flash Alarm	No
Event notification using HTTP, SMTP, FTP, NAS server	Yes
File upload via HTTP, SMTP, FTP, NAS server and MicroSD card	Yes
Connector	RJ-45, 12VDC
Led indicator
Power supply	PoE (802.3af) or 12 VDC
Power Consumption	6W
Diameter (mm)	100
Depth (mm)	0
Width (mm)	0
Height (mm)	90
Weight (kg)	0.415
Material
IP Protection	IP67
Operating temperature range	From -35 to 60°C
Storage Temperature (°C)	De -35 à 60°C
Operating Humidity (% - non condensing)	95%
Warranty period	24
OS	Microsoft Windows, MAC
Web browser	IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above
Model	Standard (Fixed)
Mounting method	Wall/ceiling
Scope of application	Universal
Power over Ethernet (PoE)	802.3 af (PoE)
Picture system	PAL
Property picture system	Colour
Focal size	2,8 - 2,8
Colour	White
Wireless	No
Type of interface	None
Number of pixels (Megapixel)	5
With lens	Yes
With IR lamp	Yes
Max. infrared reach	30 m
Vandal proof	No
Impact strength	None
With video motion detector	Yes
IP protection	IP67
Horizontal field of view	97 - 97
Vertical field of view	70 - 70
Power consumption	6 W
Supply voltage	12 - 12
Voltage type	DC
Diameter	100 mm
Height	90 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
