GGM IPCD4KV12

IP CAMERA 4K M DOME VF 2.8 12MM

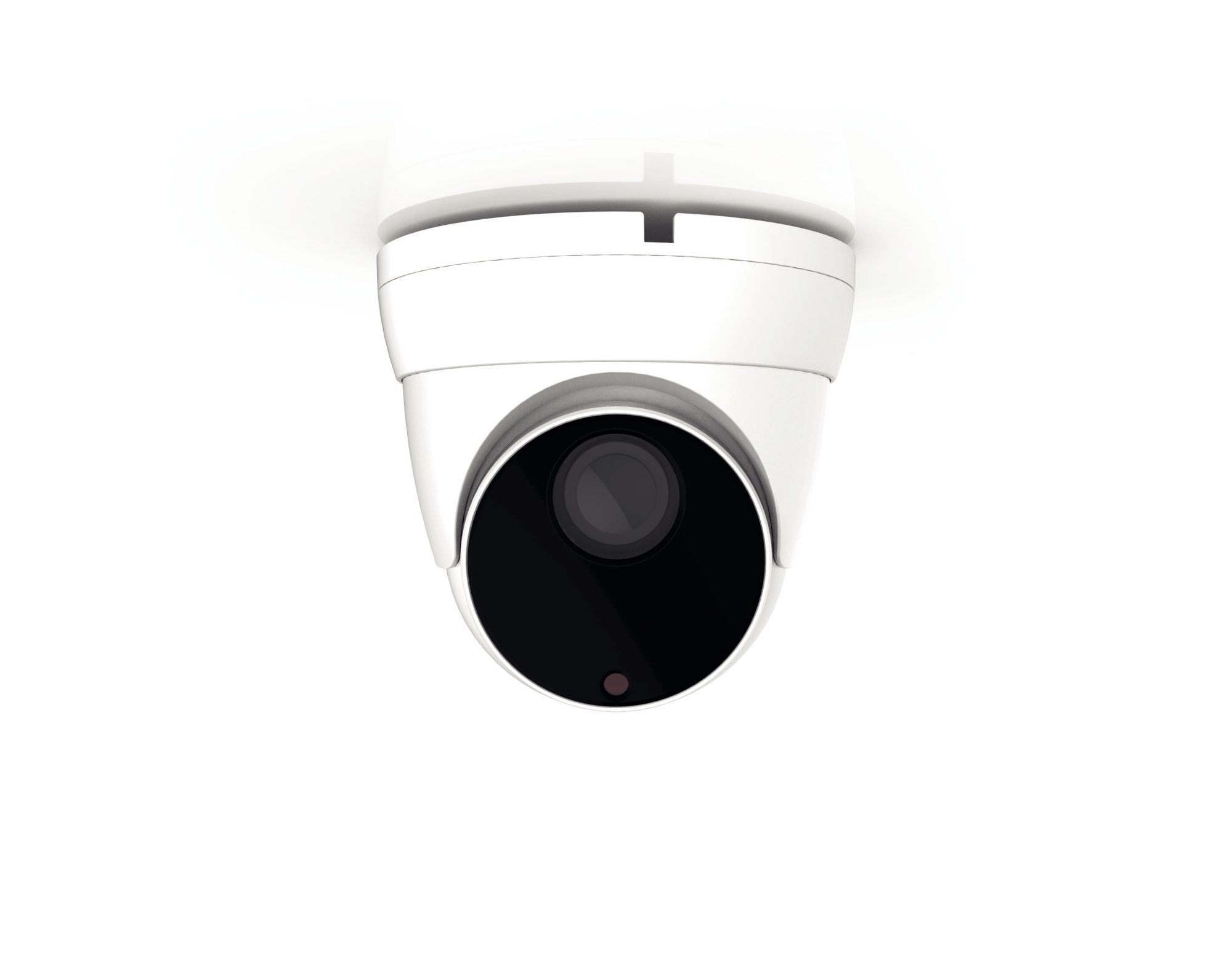

The GIGAMEDIA cameras give an excellent price/performance ratio for video surveillance installations. The IPCD4KV12 is a dome camera with 4K resolution giving an image of exceptional quality. It is equipped with LED IR capable of illuminating up to 40 m. The motorised varifocal lens 2.8-12 mm can adapt to a wide range of situations. This camera is a real asset for building surveillance, security of industrial sites or even parking lots.

Camera type	Dome eyeball
CPU	NT98528
Flash memory	128MB NAND
RAM	256MB*2
Sensor	SC8238, 1/2.7" CMOS Progressive
Sensor max. resolution	3840 x 2160
Lens type	Motorized lens
Focal lenght (mm)	2.7-13.5 mm
Aperture	F No. 1.8(W) ~ 3.3(T)
Auto iris	Motorized
Horizontal viewing angle (°)	116 - 34 °
Vertical viewing angle (°)	59 -19°
Diagonal viewing angle (°)	142 - 39°
Micro SD card slot	Yes
Digital input	No
Number of Digital input	1
Digital output	No
Number of Digital output	1
Audio in	Yes
Number of audio in	1
Audio out	No
Number of audio out	1
Built in microphone	No
Built-in speaker	No
Reset Button	Yes
POE	802.3 af
Shutter speed	1/5 - 1/20000s
Wdr (wide dynamic range)	DWDR
Day/Night	Yes
Day / night switch	Automatic, manual, schedule
Min. illumination	Color 0.009lux @ F1.6(AGC ON), B/W: 0 lux @ IR ON
IR Range	45 m
Embedded storage	Micro SD card slot max 256 GB
Video compression	H.265+, H.265, H.264+, H.264 and MJPEG
Resolution and framerate	25 fps @ 3840x2160
Stream	3 simultaneous streams
SNR	0
Day/ Night mode	Yes
IR management	Yes
Picture flip/ mirror	Yes
Corridor mode	No
BLC	Yes
HLC	Yes
3D noise reduction	Yes
Image setting	Saturation, Hue, Brightness, Sharpness, Contrast, White balance
WDR management	No
Privacy mask	4 zones
Defog	No
ROI	No
Simultaneous connection on web	9
Supported protocols	FTP, DDNS, SNMP, UPnP, NTP, UDP, PPPoE, HTTPS, TCP/IP, DHCP, RTP/RTSP, SMTP, HTTP, IPv4/IPv6, DNS
Interface	RJ-45 10/100 Mbps
Onvif version	ONVIF (Profile S/G/T)
PAN (°)	0
Tilt	0
VPAN (°/s)	0
VTILT (°/s)	0
Number of preset	0
Number of patrols	0
3D Positioning	No
Smart tracking	No
Face detection	Yes
Human and vehicle detection	Yes
Perimeter Detection Intrusion	Yes
Crossing Line Detection	Yes
Stationnary Object Detection	Yes
Cross Counting	Yes
Heat Map	Yes
Crowd Density Detection	Yes
Queue length detection	Yes
Licence plate Detection	Yes
Rare Sound Detection	Yes
Motion Detection	Yes
Manual triggering	Yes
Periodical Trigger	Yes
System boot	Yes
Recording notification	Yes
Camera tamper detection	Yes
Alarm action	Yes
Flash Alarm	Yes
Event notification using HTTP, SMTP, FTP, NAS server	Yes
File upload via HTTP, SMTP, FTP, NAS server and MicroSD card	Yes
Connector	RJ-45, 12VDC, Alarm I/O Audio I/O
Led indicator
Power supply	PoE (802.3af) or 12 VDC
Power Consumption	9.1W
Diameter (mm)	135
Depth (mm)
Width (mm)
Height (mm)	127
Weight (kg)	0.846
Material
IP Protection	IP67
Operating temperature range	From -35 to 60°C
Storage Temperature (°C)	De -35 à 60°C
Operating Humidity (% - non condensing)	95%
Warranty period	24
OS	Microsoft Windows, MAC
Web browser	IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above
Mounting method	Wall/ceiling
Scope of application	Universal
Picture system	PAL
Property picture system	Colour
Colour	White
Wireless	No
Type of interface	Other
With IR lamp	Yes
Max. infrared reach	40 m
Vandal proof	No
Supply voltage	11 - 13
Voltage type	DC
