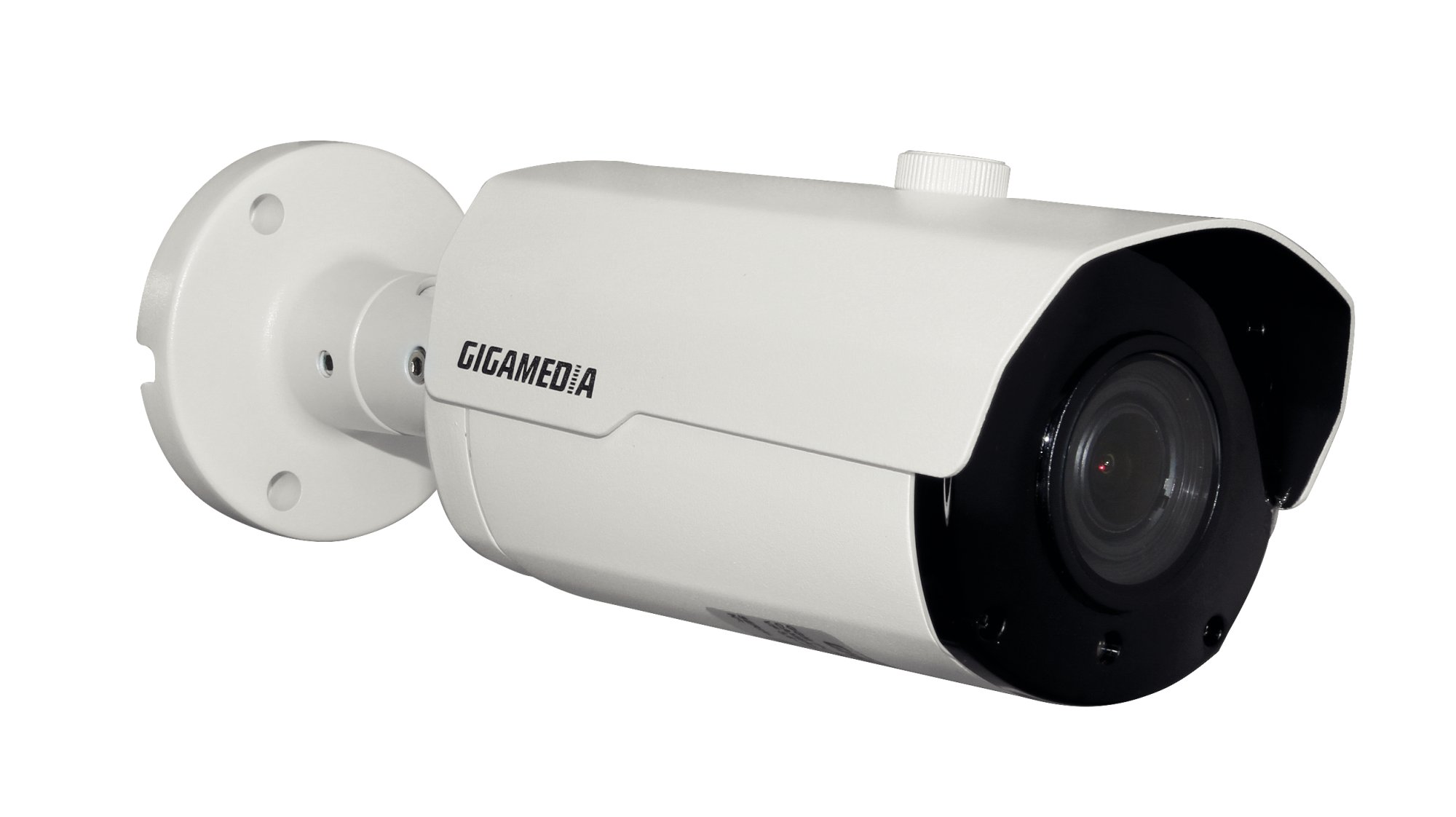

GGM IPCB2MV12
CAMERA IP TUBE 2.8 -12MM MOTORISED STARLIGHT IR 30M
The GIGAMEDIA cameras give an excellent price/performance ratio for video surveillance installations. The IPCB2MV12 is a tube camera with 1080p resolution which gives exceptional image quality. It has an LED IR capable of lighting up to 40 m. The varifocal motorised lens, 2.8 - 12 mm means it is suitable for a wide variety of situations. The Starlight technology also provides low light colour rendition. This camera is a real asset for building surveillance, security of industrial sites or even parking lots.
Read more
The GIGAMEDIA cameras give an excellent price/performance ratio for video surveillance installations.
The IPCB2MV12 is a tube camera with 1080p resolution which gives exceptional image quality. It has an LED IR capable of lighting up to 40 m. The varifocal motorised lens, 2.8 - 12 mm means it is suitable for a wide variety of situations.
The Starlight technology also provides low light colour rendition.
This camera is a real asset for building surveillance, security of industrial sites or even parking lots.
| Camera type | Tube |
|---|---|
| CPU | SSC30KQ |
| Flash memory | 128MB NAND |
| RAM | 256 MB |
| Sensor | IMX307, 1/2.8" CMOS Progressive |
| Sensor max. resolution | 1920 x 1080 |
| Lens type | Motorized lens |
| Focal lenght (mm) | 2.8-12 mm |
| Focal length | 2.8mm |
| Detect 5% | 38 |
| Observe 10% | 19 |
| Recognize 20% | 10 |
| Identify 40% | 5 |
| Aperture | F No. 1.8(W) ~ 3.3(T) |
| Auto iris | Motorized |
| Horizontal viewing angle (°) | 101 ~ 33° |
| Vertical viewing angle (°) | 52 - 18° |
| Diagonal viewing angle (°) | 124 - 37° |
| Micro SD card slot | Yes |
| Digital input | Yes |
| Number of Digital input | 1 |
| Digital output | Yes |
| Number of Digital output | 1 |
| Audio in | Yes |
| Number of audio in | 1 |
| Audio out | Yes |
| Number of audio out | 1 |
| Built in microphone | No |
| Built-in speaker | No |
| Reset Button | Yes |
| POE | 802.3 af |
| Shutter speed | 1/5 - 1/20000s |
| Wdr (wide dynamic range) | 120 dB |
| Day/Night | Yes |
| Day / night switch | Automatic, manual, schedule |
| Min. illumination | Color 0.002lux @ F1.6(AGC ON), B/W: 0 lux @ IR ON |
| IR Range | 45m |
| Embedded storage | Micro SD card slot max 256 GB |
| Video compression | H.265+, H.265, H.264+, H.264 and MJPEG |
| Resolution and framerate | 1920 x 1080@60 fps |
| Stream | 3 simultaneous streams |
| SNR | 0 |
| Day/ Night mode | Yes |
| IR management | Yes |
| Picture flip/ mirror | Yes |
| Corridor mode | Yes |
| BLC | Yes |
| HLC | Yes |
| 3D noise reduction | Yes |
| Image setting | Brightness, Sharpness, Contrast, Hue, White balance, Saturation |
| WDR management | Yes |
| Privacy mask | 4 zones |
| Defog | No |
| ROI | Yes |
| Simultaneous connection on web | 9 |
| Supported protocols | UPnP, UDP, HTTP, DHCP, FTP, DNS, NTP, IPv4/IPv6, PPPoE, SMTP, RTP/RTSP, SNMP, DDNS, HTTPS, TCP/IP |
| Interface | RJ-45 10/100 Mbps |
| Onvif version | ONVIF (Profile S/G/T) |
| PAN (°) | 0 |
| Tilt | 0 |
| VPAN (°/s) | 0 |
| VTILT (°/s) | 0 |
| Number of preset | 0 |
| Number of patrols | 0 |
| 3D Positioning | No |
| Smart tracking | No |
| Face detection | Yes |
| Human and vehicle detection | Yes |
| Perimeter Detection Intrusion | Yes |
| Crossing Line Detection | Yes |
| Stationnary Object Detection | Yes |
| Cross Counting | Yes |
| Heat Map | Yes |
| Crowd Density Detection | Yes |
| Queue length detection | Yes |
| Licence plate Detection | Yes |
| Rare Sound Detection | Yes |
| Motion Detection | Yes |
| Manual triggering | Yes |
| Periodical Trigger | Yes |
| System boot | Yes |
| Recording notification | Yes |
| Camera tamper detection | Yes |
| Alarm action | Yes |
| Flash Alarm | Yes |
| Event notification using HTTP, SMTP, FTP, NAS server | Yes |
| File upload via HTTP, SMTP, FTP, NAS server and MicroSD card | Yes |
| Connector | RJ-45, 12VDC, Alarm I/O Audio I/O |
| Led indicator | 0 |
| Power supply | PoE (802.3af) or 12 VDC |
| Power Consumption | |
| Diameter (mm) | 0 |
| Depth (mm) | 83 |
| Width (mm) | 242 |
| Height (mm) | 87 |
| Weight (kg) | 0.811 |
| Material | Metal |
| IP Protection | IP67 |
| Operating temperature range | From -35 to 60°C |
| Storage Temperature (°C) | De -35 à 60°C |
| Operating Humidity (% - non condensing) | 95% |
| Warranty period | 24 |
| OS | Microsoft Windows, MAC |
| Web browser | IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above |
| Model | Standard (Fixed) |
| Mounting method | Wall/ceiling |
| Scope of application | Universal |
| Power over Ethernet (PoE) | 802.3 af (PoE) |
| Picture system | PAL |
| Property picture system | Colour |
| Colour depth | 16 Bit |
| Focal size | 2,8 - 12 |
| Colour | White |
| Wireless | No |
| Type of interface | Other |
| Number of pixels (Megapixel) | 2 |
| Memory capacity | 128 Go |
| With lens | Yes |
| With IR lamp | Yes |
| Max. infrared reach | 45 m |
| Number of digital inputs | 1 |
| Number of digital outputs | 1 |
| Number of audio inputs | 1 |
| Number of audio outputs | 1 |
| Vandal proof | No |
| Impact strength | None |
| With video motion detector | Yes |
| IP protection | IP67 |
| Horizontal field of view | 33 - 101 |
| Vertical field of view | 18 - 52 |
| Power consumption | 9 W |
| Supply voltage | 12 - 12 |
| Voltage type | DC |
| Diameter | 84 mm |
| Depth | 242 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
