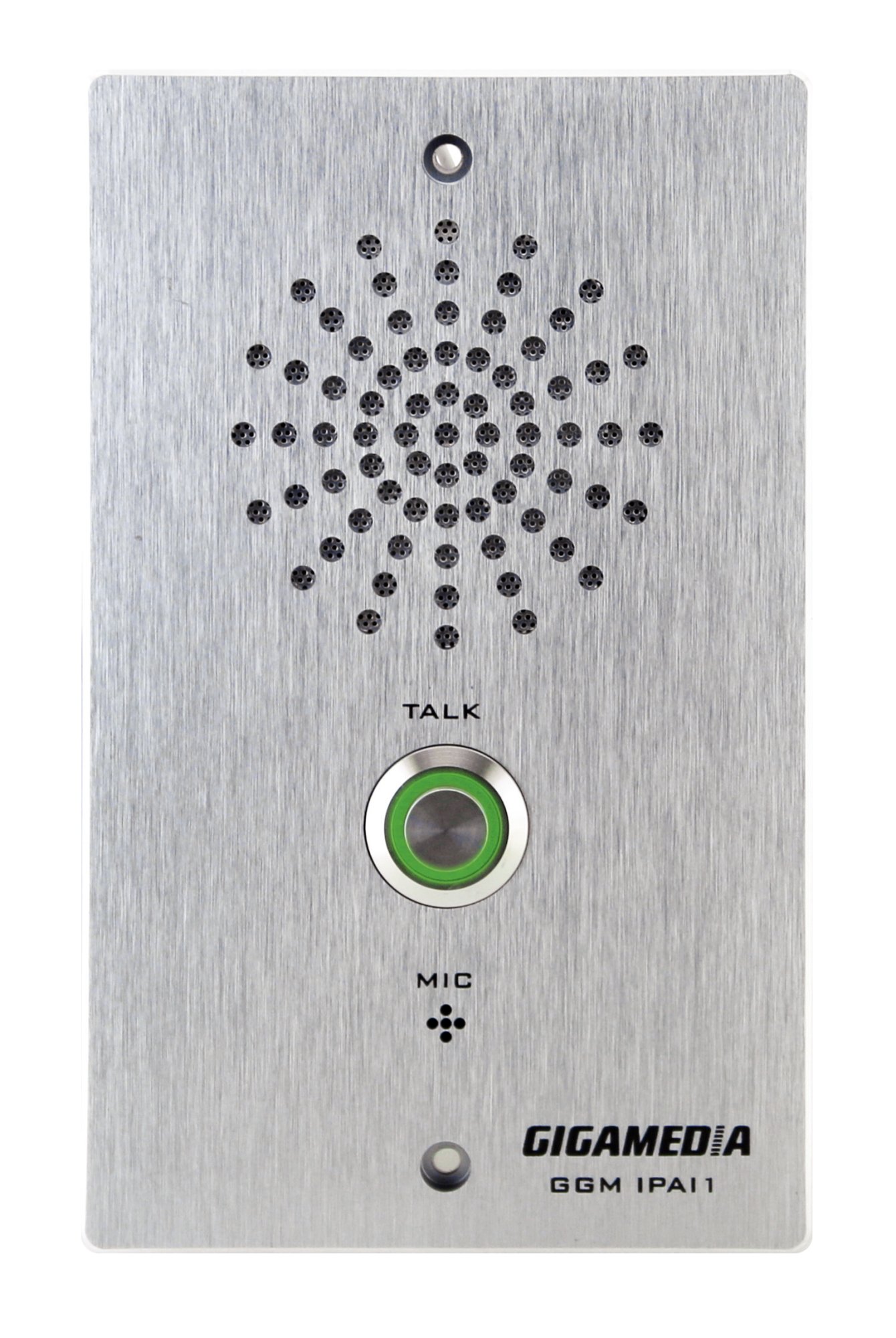

GGM IPAI1
IP VOICE INTERCOM
This intercom allows client to contact someone rapidly in case of problems. This intercom is connected via the IP network and comprises a top quality loudspeaker and integrated microphone for a quality connection. Its brushed aluminium finish and IP55 protection allows it to be used both indoors and out. Thanks to the optional mounting box, it can be flush or surface mounted. It also includes input/output connections for third party connections.
Read more
This intercom allows client to contact someone rapidly in case of problems.
This intercom is connected via the IP network and comprises a top quality loudspeaker and integrated microphone for a quality connection.
Its brushed aluminium finish and IP55 protection allows it to be used both indoors and out. Thanks to the optional mounting box, it can be flush or surface mounted.
It also includes input/output connections for third party connections.
| Audio Format | MP3 |
|---|---|
| Transmission rate | 100mbps |
| Continous recording | 317 Hz~3.4 KHz |
| Power Consumption | 10w |
| Distortion | |
| Microphone input sensitivity (mV) | 10 |
| Operating Humidity (% - non condensing) | |
| Operating temperature range | From -20 to 60°C |
| IP Protection | |
| RSB | > 65 db |
| Sampling | 8k ~ 48Khz |
| Power supply | 24 vdc / 1a |
| Type of communication | Full-duplex |
| Type of system | Central |
| Number of channels | 1 |
| Single call function | Yes |
| Group call function | Yes |
| General call function | Yes |
| Call transfer function | No |
| Mounting method | Flush-mounted |
| IP protection | IP55 |
| Operating temperature | -20 - 60 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
