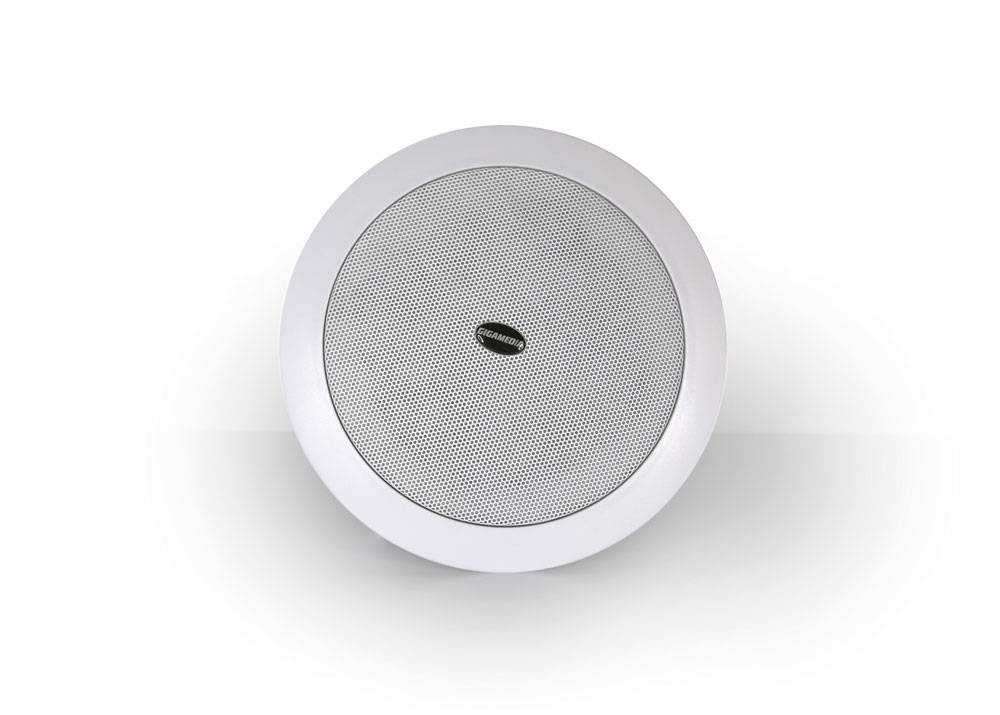

GGM IPABC8POE

POE 8W CEILING BOX

Ceiling mount speakers are easy to install and use. They integrate an audio decoding module and provide high quality sound. They connect to the IT network of the building thanks to type Cat6 digital cable They are powered in PoE up to maximum of 10 W. An external power supply is necessary to operate at a higher power. They are managed via the IP sound system software.

Transmission rate	10/100mbps
Bitrate	8k - 512kbps
Distortion
Network interface	RJ 45 100Mbps input
Protocols	Tcp/ip, udp, igmp
Sampling	8khz-48khz
Audio format	Mp3
Audio mode	16 bit cd quality
Continous recording	30 Hz ~ 16 KHz
Ceiling cutout (mm)	160
Power Consumption	12w
Speaker characteristic	8 ohm 6 W Bass type
Max power	8w
Operating Humidity (% - non condensing)
Operating temperature range	From 5 to 40°C
RSB	> 68 db
Spl sensitivity (dB)	92
Power supply	Poe 802.3af /24vdc 2a
Weight (kg)	0.8
Colour	White
Stand loudspeaker	No
Suitable for ceiling mounting	No
Suitable for built-in mounting	Yes
Suitable for wall mounting	No
Portable	No
Horn speaker	No
Sound bar	No
Sound projector	No
Frequency	30 - 16000
Impedance	8 - 8
Music capacity	8 W
Nominal capacity	12 W
Active system	No
Number of drivers	1
Bass reflex system	No
Loudness control	No
Bluetooth	No
Ethernet	Yes
Mobile High-Definition Link (MHL)	No
USB connection	No
Wi-Fi	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
IP protection	IP20
Depth	98 mm
Diameter	180 mm
