GGM IP54FTTXBOX

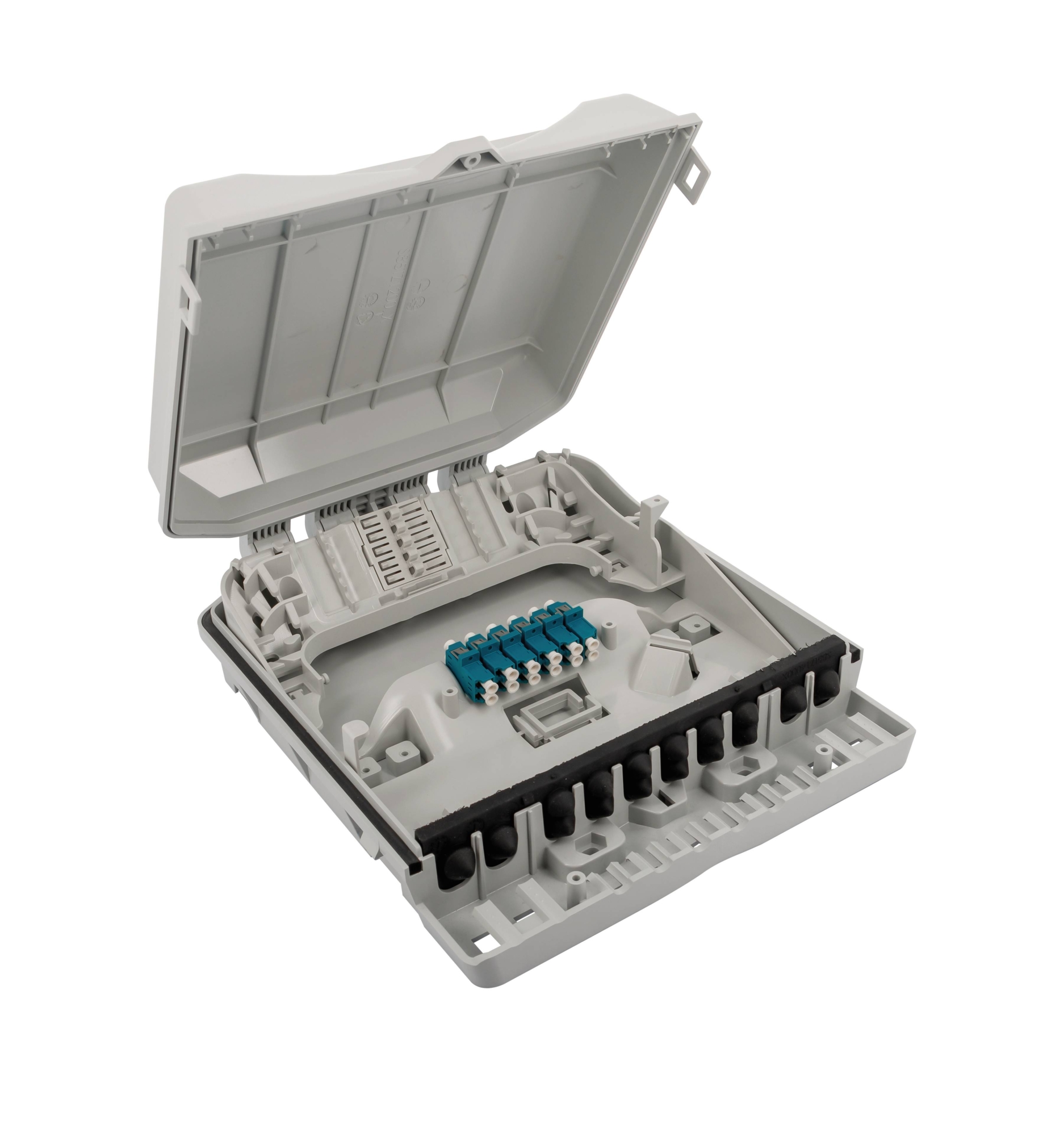

IP54 FTTx empty ABS plastic box, up to 60 fibers or 6 LC duplex adapters

This IP54 enclosure has been specially designed for easy connection of optical fibers, via fusion splicing (60 optical fibers) or pre-terminated drop cables (up to 12 optical fibers - 6 duplex LC connections). It can therefore be used for FTTH or FTTA (5G antennas) deployments. Pole or wall mounting.

This IP54 enclosure has been specially designed for easy connection of optical fibers, via fusion splicing (60 optical fibers) or pre-terminated drop cables (up to 12 optical fibers - 6 duplex LC connections).
It can therefore be used for FTTH or FTTA (5G antennas) deployments.
Pole or wall mounting.

Produit	IP54 box
Material	ABS plastic
Fiber count	60
Max. amount of splice trays	5
IP Protection	IP54
Impact protection	IK08
Locking mechanism	With clips
Adapter	LC duplex
Fiber type	Singlemode OS2/G652D or G657
Cables Inputs/Outputs	4x 1.6–14 mm ; 12x 1.6–10 mm
Operating temperature (°C)	-35 °C to +65 °C
Color	Grey
Weight (kg)	1
Dimensions	(mm) : 297.5 x 239 x 73
Option	12-fibre splice cassette GGM 12CLIPTRAY
Pole bracket	Included
Fibre count	60
Connection method	Fusion splice
Separated compartments	No
Lockable	Yes
IP protection	IP54
