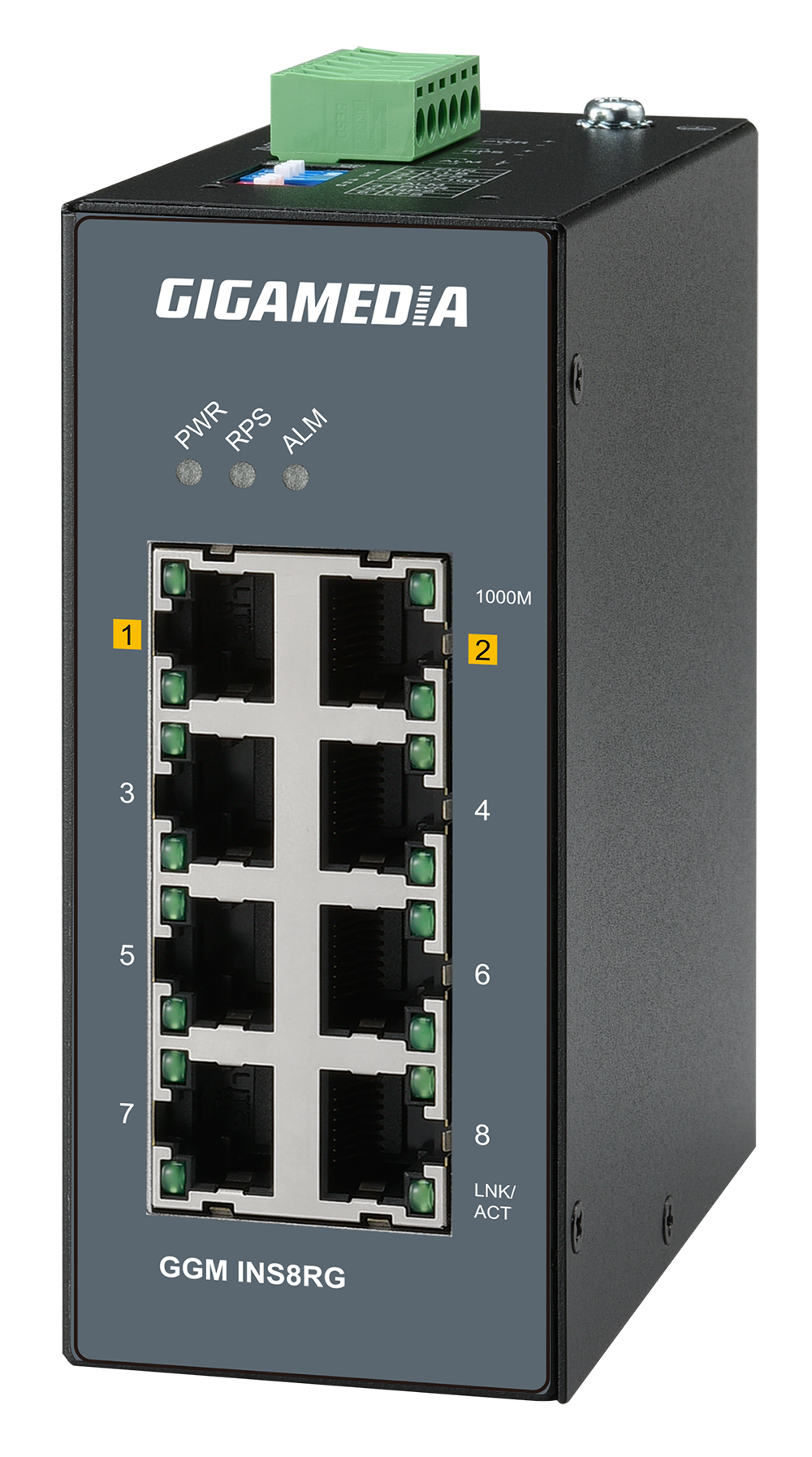

GGM INS8RG

8-Port Gigabit DIN RAIL Unmanaged Industrial Switch

The GGM INS8RG is a non-manageable Industrial switch with 8 Gigabit RJ45 ports for communication between controllers and devices in automation environments. This high port density switch is used with robots and their peripherals, such as PLCs and HMIs. In addition, it offers auto-negotiation on all its ports to easily aggregate devices in industrial Ethernet applications. The GGM INS8RG offers various built-in traffic optimisation features to prioritise important industrial data packets, prevent data loss during communication and ensure stable transmission. The GGM INS8RG is built with industrial-grade components to protect it from hazards such as vibration, shock, freefall, interference and…

The GGM INS8RG is a non-manageable Industrial switch with 8 Gigabit RJ45 ports for communication between controllers and devices in automation environments.
This high port density switch is used with robots and their peripherals, such as PLCs and HMIs.
In addition, it offers auto-negotiation on all its ports to easily aggregate devices in industrial Ethernet applications.
The GGM INS8RG offers various built-in traffic optimisation features to prioritise important industrial data packets, prevent data loss during communication and ensure stable transmission.
The GGM INS8RG is built with industrial-grade components to protect it from hazards such as vibration, shock, freefall, interference and dust, making it resistant to harsh industrial environments.

Robust components designed for harsh industrial environments
Quick and convenient installation with auto-negotiation
Industrial-grade EMC design
Quality of service

Produit	Unmanaged Switch
CPU	N/A
DRAM (G)	0
Flash memory (mb)	0
Housing	Aluminum
Mounting type	DIN RAIL
IP rating	IP30
MTBF (H)	1196328
IEEE 802.3 10BASE-T Ethernet	Yes
IEEE 802.3u 100BASE-TX Fast Ethernet	Yes
IEEE 802.3ab 1000BASE-T Gigabit Ethernet	Yes
IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic	No
IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic	No
IEEE 802.3ae 10 Gigabit Ethernet	No
IEEE 802.3bz 2.5 & 5 Gigabit Ethernet	No
IEEE 802.3 NWay auto-negotiation	Yes
IEEE 802.3x Flow Control	Yes
IEEE 802.3az Energy-Efficient Ethernet (EEE)	No
10M/100M RJ45 Port	0
10M/100M/1G RJ45 Port	8
100M/1G/2.5G RJ45 Port	0
100M/1G/10G RJ45 Port	0
100M/1G/2.5G/5G/10G RJ45 Port	0
100M/1G SFP Port	0
1G RJ45/SFP Combo Port	0
1G/2.5G SFP Port	0
1G/10G SFP+ Port	0
40G QSFP+ Port	0
M12 Port	0
Physical Stack	No
Physical Stack - Port Count	0
Physical Stack - Stacking Bandwith (Gb/s)	0
Console Port Type	None
IEEE802.3at (PoE+ 30W)	No
IEEE802.3af (PoE 15.4W)	No
UPoE(60W)	No
IEEE802.3bt (PoE+ 90W)	No
Long Range PoE (250m)	No
Total PoE Port	0
Available PoE Power (PoE Budget) (W)	0
Transmission Mode	Store and Forward
Switching Bandwidth (Gbps)	16
Forwarding Performance (Mpps)	11.9
MAC Address (K)	4
Jumbo Frames (Bytes)	9216
Acoustics (dB)	0
Operating Temperature (°C)	-40 - 75
Operating Humidity (% - non condensing)	5 - 95
Storage Temperature (°C)	-40 - 85
Storage Humidity (% - non condensing)	5 - 95
Heat Dissipation - Idle (BTU/H)	17.05
Heat Dissipation - Max (Full Load) (BTU/H)	17.05
Green Feature (802.3az) - Power saving by link status	No
Green Feature (802.3az) - Power saving by cable length	No
Green Feature (802.3az) - Time-based PoE	No
Green Feature (802.3az) - Power saving by LED shut-off	No
Green Feature (802.3az) - Power saving by port shut-off	No
Green Feature (802.3az) - Power saving by system hibernation	No
Product Dimensions - w/o packaging - Width (mm)	50
Product Dimensions - w/o packaging - Height (mm)	119.2
Product Dimensions - w/o packaging - Depth (mm)	99.9
Product Weight - without packaging (g)	480
FAN - Fan less	Yes
FAN - Fan count	0
Built-in Power Supply	No
AC Input (V)	0 - 0
DC Input (V)	9 - 57
Dual Input - Redundant power supply	Yes
Power Consumption - Idle (W)	5
Power Consumption - Max (Full Load) (W)	5
Reverse Polarity Protection	Yes
Over Load Protection	Yes
EMI - FCC Part 15	Yes
EMI - EN 55011	Yes
EMI - EN 55032	Yes
EMI - EN 61000-6-4	Yes
EMS - EN 55024	Yes
EMS - EN 61000-6-2	Yes
EMS - EN 61000-4-2 (ESD)	Yes
EMS - EN 61000-4-3 (RS)	Yes
EMS - EN 61000-4-4 (Burst)	Yes
EMS - EN 61000-4-5 (for RJ45 Port, Surge 6KV)	Yes
EMS - EN 61000-4-6 (CS)	Yes
EMS - EN 61000-4-8 (PFMF)	Yes
Shock - IEC 60068-2-27	Yes
Freefall - IEC 60068-2-32	Yes
Vibration - IEC 60068-2-6	Yes
Rail Traffic - EN 50155	No
Rail Traffic - EN 50121-4	No
Power Substation - IEEE1613	No
Power Substation - IEC61850-3	No
Marine - DNV-CS-0339	2016 : No
Marine - DNV-RU-SHIP-Pt4Ch9	2018 : No
Marine - IEC-60945, IACS E10 (Rev.6 2014)	No
Marine - LR certify environmental category ENV1, ENV2 and ENV3	No
LLDP Filter	No
VLAN Passthru	No
Port Priority (P1)	No
802,1p/Tag QoS	No
EIP QoS (via TCP/UDP)	No
PROFINET QoS (via VLAN 10)	No
GOOSE QoS (via Ether-type)	No
Ethernet	Yes
Number of ports 10/100/1000 Mbps RJ45	8
Power over Ethernet (PoE)	None
Max. power consumption	5 W
Redundant power supply	Yes
Mounting method	DIN rail (top hat rail)
Layer 2	No
Layer 3	No
Manageable	No
IP protection	IP30
Height	116 mm
Width	46 mm
Depth	100 mm
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No
