GGM INS5R

DIN RAIL Switch 5-port 10/100

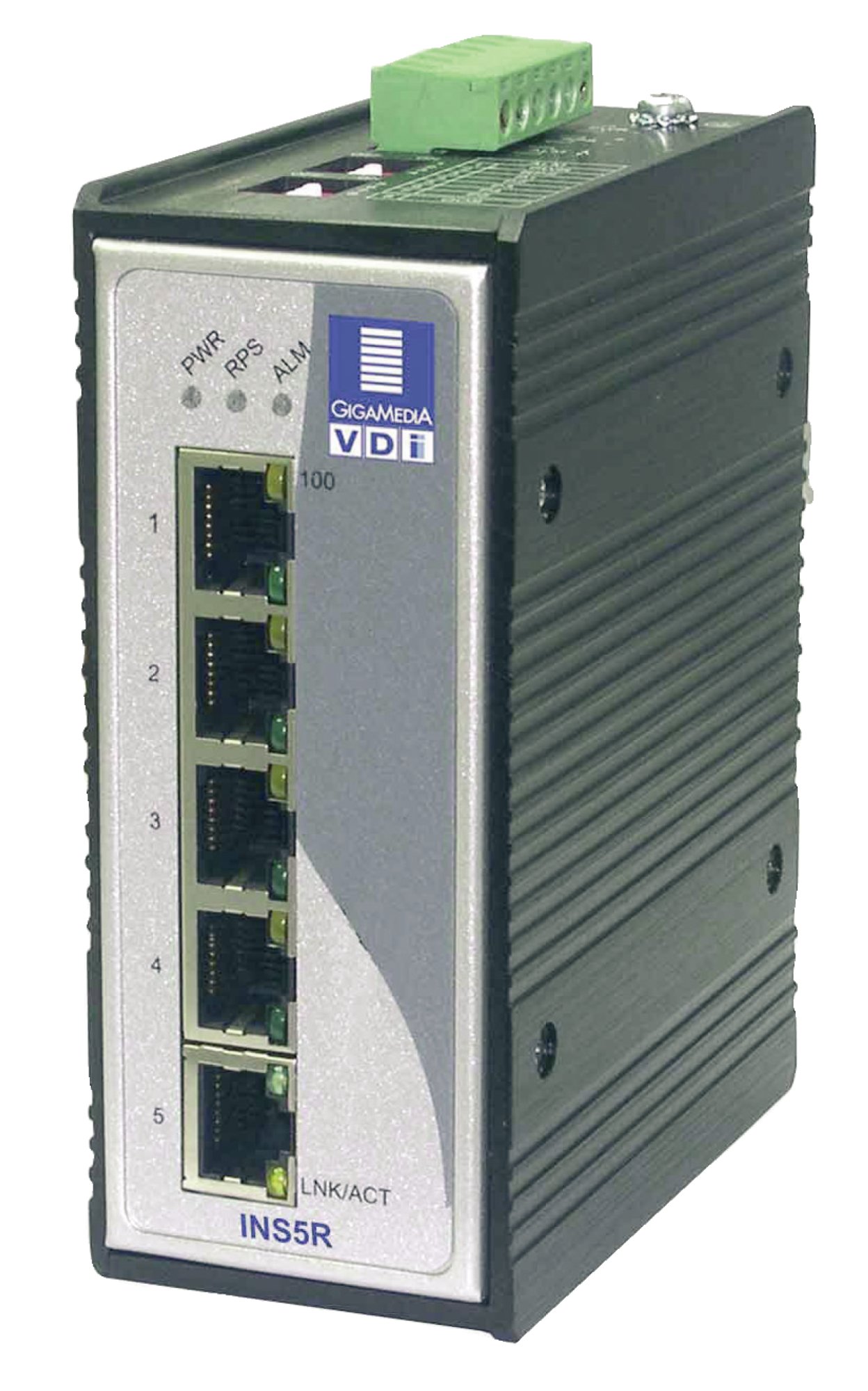

The GGM INS5R is a non-manageable Industrial switch with 5 Fast Ethernet RJ45 ports for communication between controllers and devices in automation environments. This high port density switch is used with robots and their peripherals, such as PLCs and HMIs. In addition, it offers auto-negotiation on all its ports to easily aggregate devices in industrial Ethernet applications. The GGM INS5Roffers various built-in traffic optimisation features to prioritise important industrial data packets, prevent data loss during communication and ensure stable transmission. The GGM INS5R is built with industrial-grade components to protect it from hazards such as vibration, shock, freefall, interference and…

The GGM INS5R is a non-manageable Industrial switch with 5 Fast Ethernet RJ45 ports for communication between controllers and devices in automation environments.
This high port density switch is used with robots and their peripherals, such as PLCs and HMIs.
In addition, it offers auto-negotiation on all its ports to easily aggregate devices in industrial Ethernet applications.
The GGM INS5Roffers various built-in traffic optimisation features to prioritise important industrial data packets, prevent data loss during communication and ensure stable transmission.
The GGM INS5R is built with industrial-grade components to protect it from hazards such as vibration, shock, freefall, interference and dust, making it resistant to harsh industrial environments.

Robust components designed for harsh industrial environments
Quick and convenient installation with auto-negotiation
Industrial-grade EMC design
Quality of service

Produit	Unmanaged Switch
CPU
DRAM (G)
Flash memory (mb)
Housing
Mounting type
IP rating
MTBF (H)
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
IEEE 802.3ae 10 Gigabit Ethernet
IEEE 802.3bz 2.5 & 5 Gigabit Ethernet
IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.3az Energy-Efficient Ethernet (EEE)
10M/100M RJ45 Port
10M/100M/1G RJ45 Port
100M/1G/2.5G RJ45 Port
100M/1G/10G RJ45 Port
100M/1G/2.5G/5G/10G RJ45 Port
100M/1G SFP Port
1G RJ45/SFP Combo Port
1G/2.5G SFP Port
1G/10G SFP+ Port
40G QSFP+ Port
M12 Port
Physical Stack
Physical Stack - Port Count
Physical Stack - Stacking Bandwith (Gb/s)
Console Port Type
IEEE802.3at (PoE+ 30W)
IEEE802.3af (PoE 15.4W)
UPoE(60W)
IEEE802.3bt (PoE+ 90W)
Long Range PoE (250m)
Total PoE Port
Available PoE Power (PoE Budget) (W)
Transmission Mode
Switching Bandwidth (Gbps)
Forwarding Performance (Mpps)
MAC Address (K)
Jumbo Frames (Bytes)
Acoustics (dB)
Operating Temperature (°C)
Operating Humidity (% - non condensing)
Storage Temperature (°C)
Storage Humidity (% - non condensing)
Heat Dissipation - Idle (BTU/H)
Heat Dissipation - Max (Full Load) (BTU/H)
Green Feature (802.3az) - Power saving by link status
Green Feature (802.3az) - Power saving by cable length
Green Feature (802.3az) - Time-based PoE
Green Feature (802.3az) - Power saving by LED shut-off
Green Feature (802.3az) - Power saving by port shut-off
Green Feature (802.3az) - Power saving by system hibernation
Product Dimensions - w/o packaging - Width (mm)
Product Dimensions - w/o packaging - Height (mm)
Product Dimensions - w/o packaging - Depth (mm)
Product Weight - without packaging (g)
FAN - Fan less
FAN - Fan count
Built-in Power Supply
AC Input (V)
DC Input (V)
Dual Input - Redundant power supply
Power Consumption - Idle (W)
Power Consumption - Max (Full Load) (W)
Reverse Polarity Protection
Over Load Protection
EMI - FCC Part 15
EMI - EN 55011
EMI - EN 55032
EMI - EN 61000-6-4
EMS - EN 55024
EMS - EN 61000-6-2
EMS - EN 61000-4-2 (ESD)
EMS - EN 61000-4-3 (RS)
EMS - EN 61000-4-4 (Burst)
EMS - EN 61000-4-5 (for RJ45 Port, Surge 6KV)
EMS - EN 61000-4-6 (CS)
EMS - EN 61000-4-8 (PFMF)
Shock - IEC 60068-2-27
Freefall - IEC 60068-2-32
Vibration - IEC 60068-2-6
Rail Traffic - EN 50155
Rail Traffic - EN 50121-4
Power Substation - IEEE1613
Power Substation - IEC61850-3
Marine - DNV-CS-0339	2016 :
Marine - DNV-RU-SHIP-Pt4Ch9	2018 :
Marine - IEC-60945, IACS E10 (Rev.6 2014)
Marine - LR certify environmental category ENV1, ENV2 and ENV3
LLDP Filter
VLAN Passthru
Port Priority (P1)
802,1p/Tag QoS
EIP QoS (via TCP/UDP)
PROFINET QoS (via VLAN 10)
GOOSE QoS (via Ether-type)
Ethernet	Yes
Number of ports 10/100 Mbps RJ45	5
Power over Ethernet (PoE)	Other
Max. power consumption	2.05 W
Redundant power supply	Yes
Mounting method	DIN rail (top hat rail)
Layer 2	No
Layer 3	No
Manageable	No
IP protection	IP30
Height	109.2 mm
Width	23.4 mm
Depth	73.8 mm
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No
