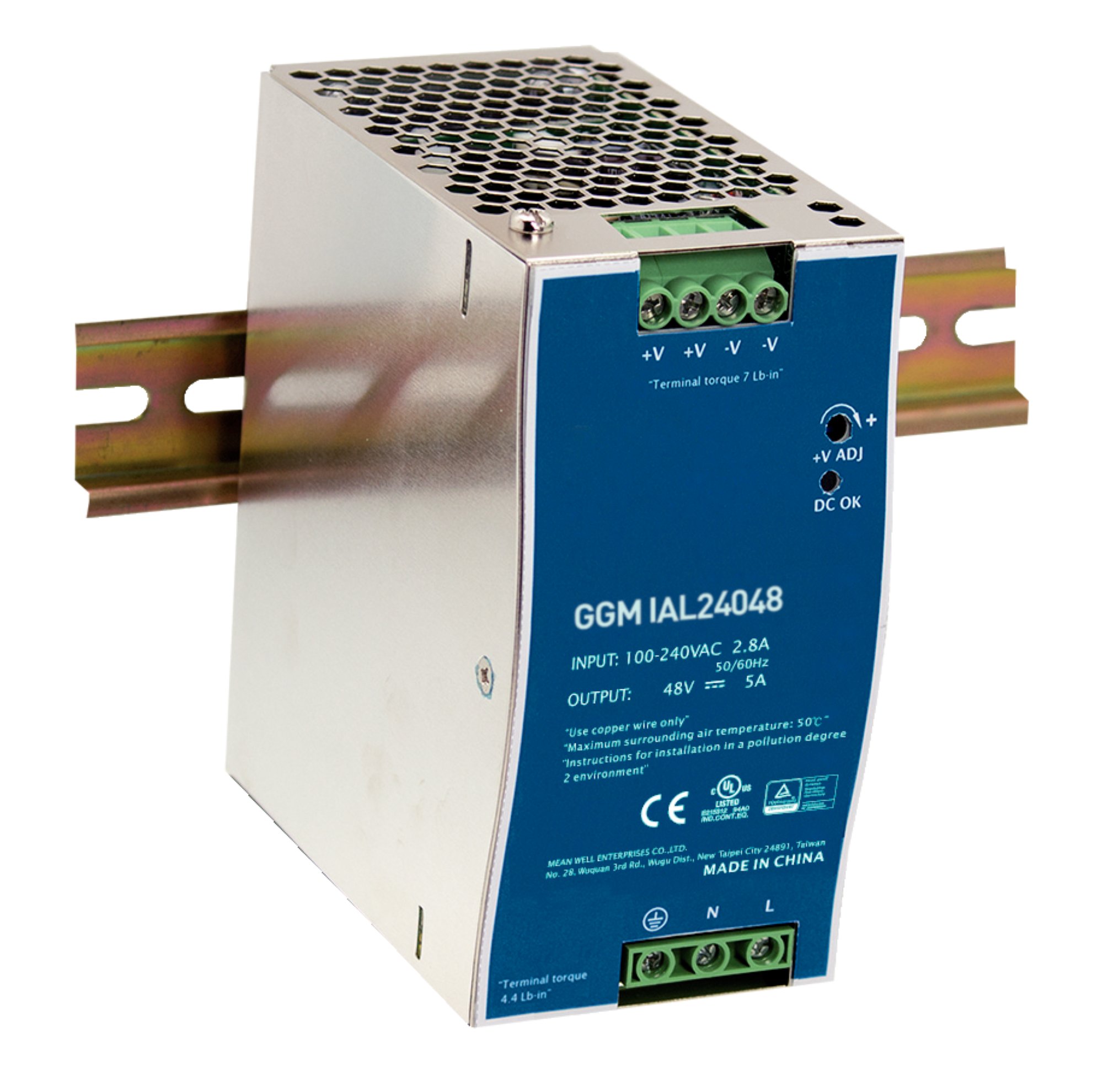

DIN RAIL Industrial Power Supply 240W - 48V

48 V supply on DIN Rail, compatible with “industrial” switches and converters from the GIGAMEDIA range and active industrial products from other brands. 220 V AC power supply and output on screw terminals in DC

Produit	DIN RAIL Power Supply
Long description	DIN RAIL Industrial Power Supply 240W - 48V
Voltage type (supply voltage)	DC
1st secondary output voltage	48 - 48
Max. output current 1	5 A
Secondary voltage adjustable	Yes
Nominal value output voltage 1	48 V
Nominal value output current 1	5 A
Short-circuit-proof	Yes
Rated supply voltage AC 50 Hz	90 - 264
Rated supply voltage AC 60 Hz	90 - 264
Output voltage stabilized	Yes
Stabilized	Yes
Type of electric connection	Screw connection
Rail mounting possible	No
Wall mounting possible	No
Modular version	Yes
Width	53 mm
Height	125.2 mm
Depth	113.5 mm
Suitable for safety functions	Yes
SIL according to IEC 61508	None
Performance level according to EN ISO 13849-1	None
IP protection	IP30
Degree of protection (NEMA)	Other
