GGM HDEXT2K50M
KIT EXTENDER HDMI 1080P 50M

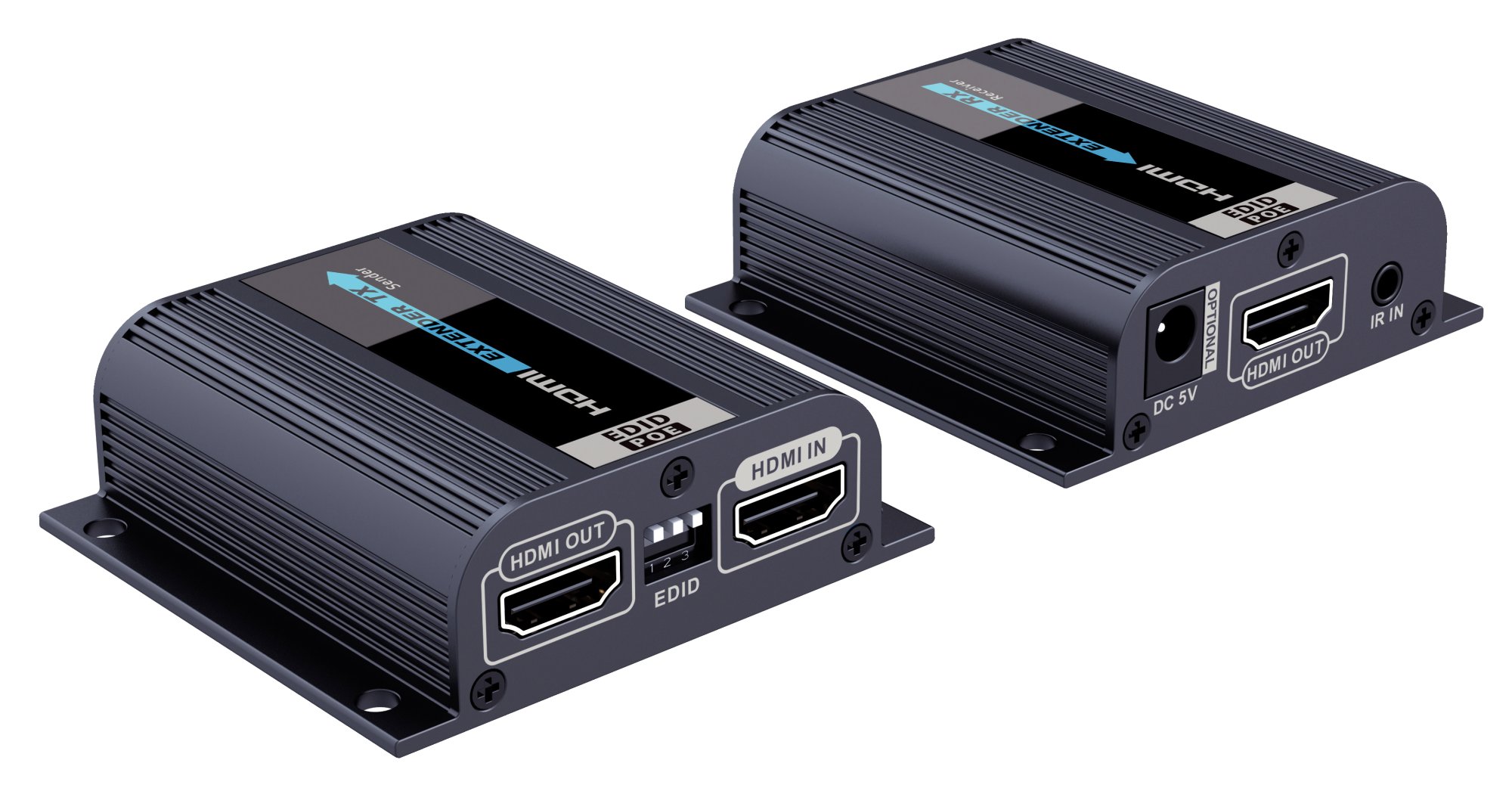

The GGM HDEXT2K50M is a kit comprising an emitter which converts a signal coming from an HDMI source into a network RJ45 cable, as well as a receiver which converts the signal from the network cable into HDMI in order for it to go towards a display, monitor or screen. The receiver is powered via the PoE network cable and has therefore no need of a bulky power supply. These are Plug and Play products requiring no installation configuration. Furthermore, in the rare case where pairing is difficult, the EDID configuration simplifies the procedure. The emitter has a “loop out”…
Read more
The GGM HDEXT2K50M is a kit comprising an emitter which converts a signal coming from an HDMI source into a network RJ45 cable, as well as a receiver which converts the signal from the network cable into HDMI in order for it to go towards a display, monitor or screen.
The receiver is powered via the PoE network cable and has therefore no need of a bulky power supply. These are Plug and Play products requiring no installation configuration. Furthermore, in the rare case where pairing is difficult, the EDID configuration simplifies the procedure.
The emitter has a “loop out” HDMI output in order to display the source contents on a local screen.
| Produit | Without kvm |
|---|---|
| HDMI type | 1.4 |
| Hdcp type | HDCP 1.2 |
| Supported resolutions | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 3D:1080p@60Hz |
| Cable type | Cat5e min |
| Transmission distance | Up to 50M in CAT6 |
| Remote control and ir | Support remote control with IR frequency 20~60kHz |
| EDID | Yes |
| Audio Format | PCM, AC3, DTS |
| Operating Temperature (°C) | 0-60°C |
| Power supply | 5V 2A |
| Power Consumption | TX |
| Dimensions | (mm) : 71.6 (L) x 66.9 (l) x 22.6 (H) mm x 2pcs |
| Weight (g) | 70 |
| Transmission | Copper |
| Supply voltage required | Yes |
| Number of outputs | 2 |
| Output | HDMI |
| Number of inputs | 1 |
| Input | HDMI |
| Supports H.264 codec | No |
| Supports H.265 codec | No |
| Supports Motion JPEG codec | No |
| Supports MPEG-4 codec | No |
