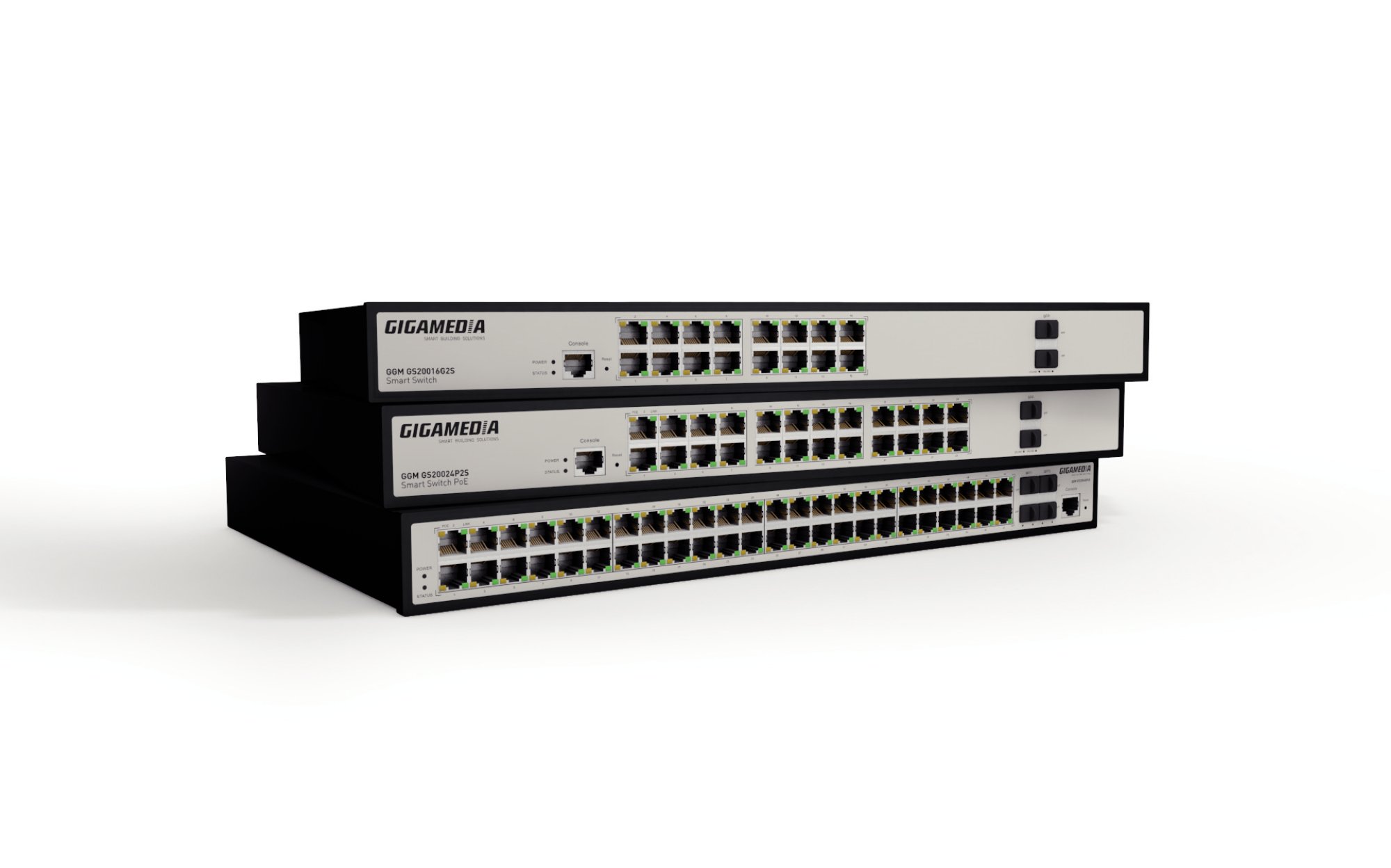

GGM GS20048P4S

Smart Switch PoE+ 48-port Gigabit (370W) + 4xSFP+

The Web Managed Smart Switches from the GGM GS200 series are specially designed for modern use of convergent IP networks. Thanks to the wide variety of configurations of ports and powerful Level 2 functionalities, they support, simultaneously, Multimedia streaming, Multicast flow, security and all other bandwidth- greedy applications. The GGM GS200 Smart Switches offer Gigabit non-blocking bandwidth at an affordable price. Advanced level 2 functionalities Thanks to their Level 2 functionalities, the GGM GS200 Smart Switches integrate perfectly into modern IP networks: Complete management of VLAN network segmentation Integration of QoS functions for optimal flow priority High breakdown resistance thanks to Spanning Tree technology Detection and quarantining of loops Diagnostic system for the cables for a network that is always efficient Network security The GGM GS200 Smart Switches have the latest technologies guaranteeing high network security: RADIUS 802.1x authentication gives strong authentication to the network users ACL management improves security and network management ARP packet inspection to avoid usurpation and attacks on the network DHCP snooping functionality avoids recourse to DHCP pirates

L2 - PoE Auto Checking	Yes
L2 - PoE Scheduling	Yes
Console Port	Yes - rj45 port
CPU	Microsemi (speed)
EN61000-4-5 (6KV Surge Protection)	Yes
L2 - Access Filtering SNMP	Yes
L2 - Access Filtering SSH	Yes
L2 - Access Filtering Telnet	Yes
L2 - Access Filtering Web UI	Yes
L2 - Cable Diagnostics	Yes
L2 - Carrier ERPS (G.8032)	Yes
L2 - Device Management	WEB GUI, SNMP, CLI
L2 - GARP/GVRP	Yes
L2 - IGMP Snooping	Yes
L2 - Configuration Import/Export	Yes
L2 - LLDP (802.1AB)	Yes
L2 - MSTP (802.1S)	Yes
L2 - QoS CoS 802.1p	Yes
L2 - QoS CoS TCP/UDP Port	Yes
L2 - QoS Queues	8
L2 - RSTP (802.1W)	Yes
L2 - Security ACLs L2/L3/L4	Yes
L2 - Security Port (MAC-Based)	Yes
L2 - Security RADIUS (802.1x)	Yes
L2 - Security TACACS+	Yes
L2 - SNMP	v1, v2c, v3
L2 - STP (802.1D)	Yes
L2 - VLAN Entries	4
L2 - VLAN IP-Subnet-Based	Yes
L2 - VLAN MAC-Based	Yes
L2 - VLAN Port-Based	Yes
L2 - VLAN Protocol (802.1v)	Yes
L2 - VLAN Q-in-Q	Yes
L2 - VLAN (802.1Q)	Yes
Operating humidity	10% - 90%
Operating temperature	0°C - 45°C
Storage humidity	10% - 90%
Storage temperature	-20°C - 70°C
DRAM (G)	2
Fanless	No
Flash memory (mb)	128
Forwarding Performance (Mpps)	130.944
Heat Dissipation w/o PoE (Btu/h)	310.77
Heat Dissipation Full Load PoE (Btu/h)	1574.32
Jumbo Frames (Bytes)	9216
MAC Address count (K)	32
Max power consumption (W)	461
MTBF (H)	50000
POE buget (W)	370
POE 802.3AF compatible	Yes
POE 802.3AT compatible	Yes
POE 802.3BT compatible	No
Switching Bandwidth (Gbps)	176
UPOE compatible (60w)	No
Ethernet	Yes
Number of ports 10/100/1000 Mbps RJ45	48
Number of ports 10 Gbps Mini GBIC	4
Number of other ports	1
Power over Ethernet (PoE)	802.3 at (PoE+)
Number of ports PoE	48
Max. PoE power	370 W
Max. power consumption	461 W
Redundant power supply	No
Mounting method	482.6 mm (19 inch) mounting
Layer 2	Yes
Layer 3	No
Manageable	Yes
IP protection	IP30
Height	44 mm
Width	440 mm
Depth	290 mm
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No
