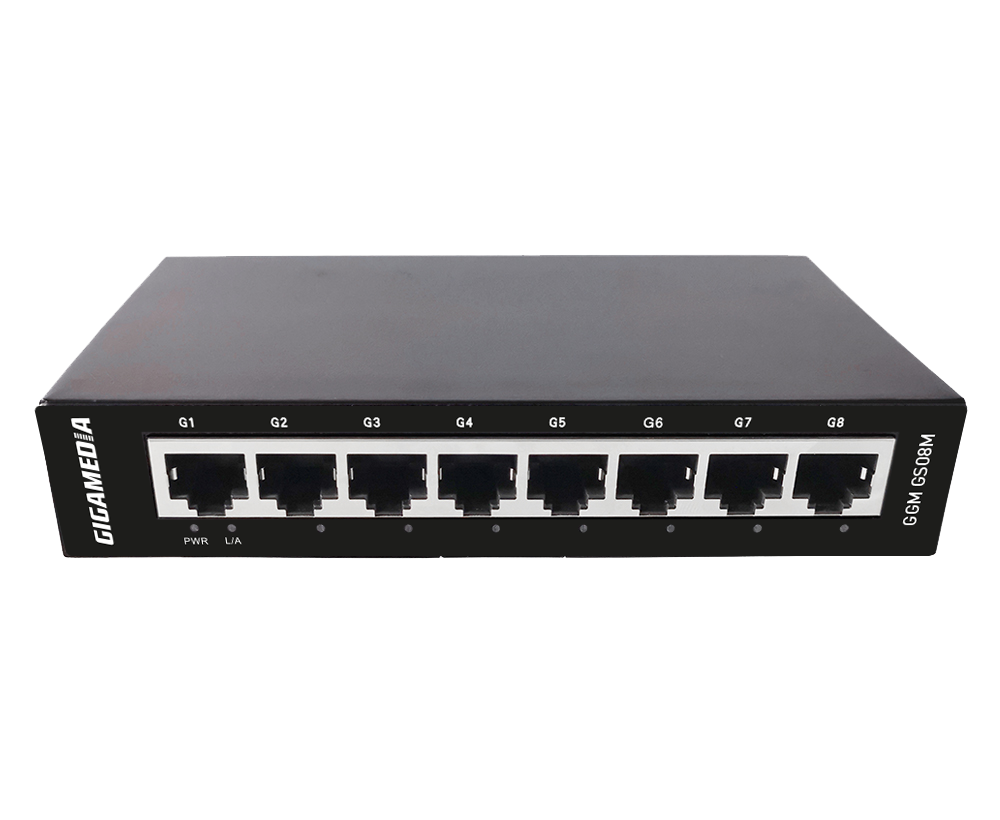

GGM GS08M

Unmanaged 8-port Gigabit switch – Metal – external Power Supply

Designed for small and medium-sized businesses, the GGM GS05M and GGM GS08M Gigabit Ethernet switches make it easy to set up a network quickly and cost-effectively. Plug&Play: They enable computers, wireless access points, IP cameras, network printers and other Ethernet devices to be connected efficiently without complex configuration. Plug-and-Play operation 8-port Gigabit Ethernet Non-blocking architecture : simultaneous full load on each port Fanless, suitable for any environment Robust design with metal casing

Plug-and-Play operation
8-port Gigabit Ethernet
Non-blocking architecture : simultaneous full load on each port
Fanless, suitable for any environment
Robust design with metal casing

Mdi/mdix auto-negotiation	Yes
Non blocking	Yes
Transfer method	Store and Forward
Protocols	CSMA/CD
Fanless	Yes
Mac address table	2
Extended POE mode	No
POE surge protection	0
Power supply type	External
Max power consumption (W)	7
Heat Dissipation (Btu/h)	1
MTBF (H)	80000
Operating temperature range	0 °C ~ +40° C
Storage Temperature (°C)	-20 °C ~ +65° C
Operating Humidity (% - non condensing)	10% ~ 90%
Storage Humidity (% - non condensing)	5% ~ 95%
Ethernet	Yes
Number of ports 10/100/1000 Mbps RJ45	8
Power over Ethernet (PoE)	None
Max. PoE power	7 W
Mounting method	Desk type
Layer 2	No
Layer 3	No
Manageable	No
IP protection	IP30
Height	26 mm
Width	144 mm
Depth	77.5 mm
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No
