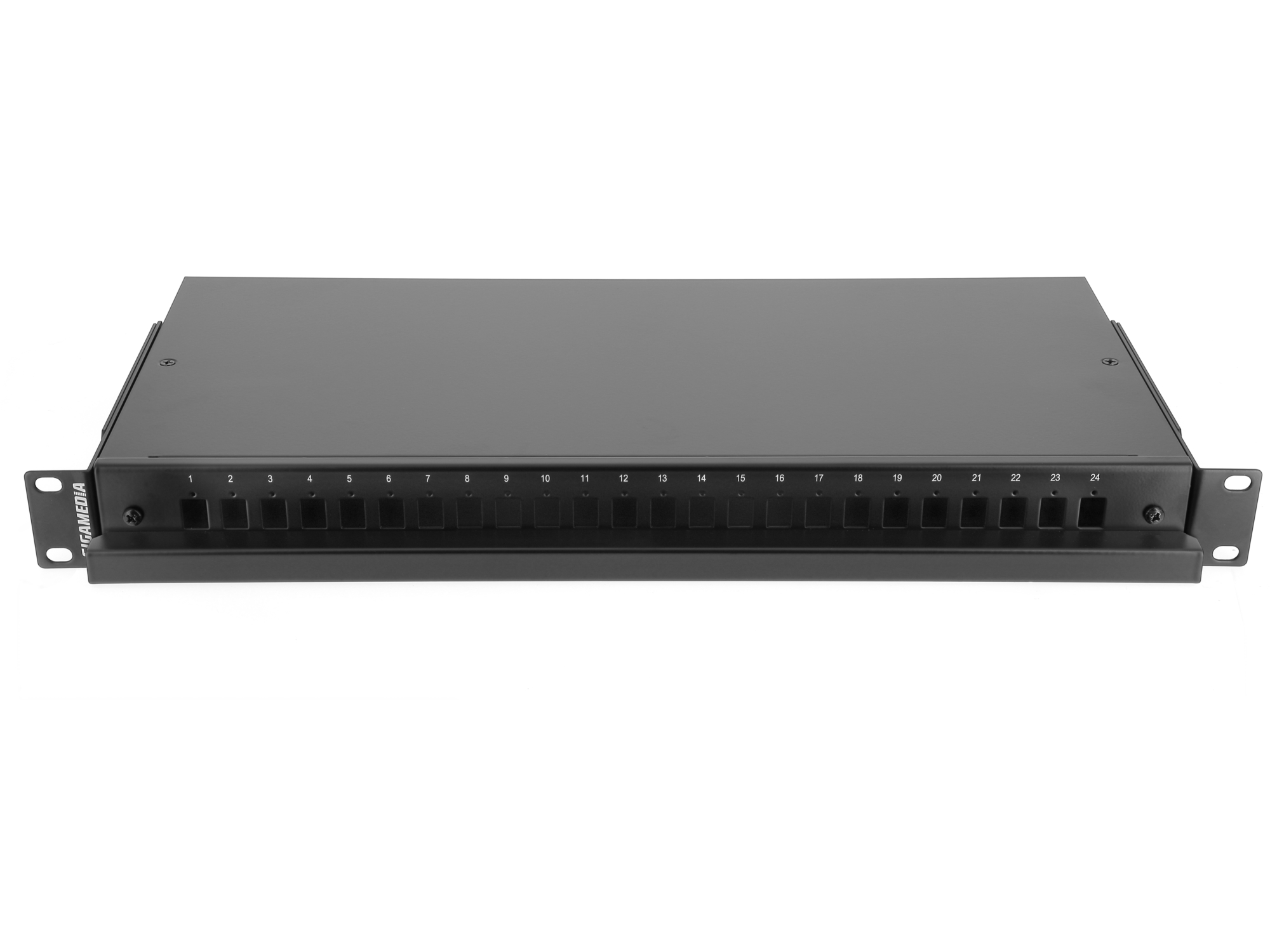

24 SC SIMPLEX/ LC DUPLEX empty patchpanel + Patchcord management bar

This fixed patch panel is an economical solution for installation up to 24 SC connections (48 in LC duplex) in 1U.
It is provided with a retractable bar for a smooth patchcord management organization at the front.

Capacity	12 to 48 fibers
Port identification	Front numbering
Number of cable entries	6 x cable entries at the rear (2x 24 mm ; 2x 22 mm ; 2x 20 mm)
Opening of the tray	45°
Fixing brackets	Adjustable depth
Width (mm)	483
Depth (mm)	225
Height (mm)	44
Weight (kg)	2.3
Colour	Black
Supplied accessories	2 PG 13.5 cable glands, 6 coiling clips, 6 cable ties
Optional accessory	SC simplex blanking plug (GGM OBTUSCSPLEX)
Port density	24
Number of connections	24
Number of slots	24
With front plate	Yes
With housing	Yes
With pigtails	No
Fibre optic category	Singlemode and Multimode 50/125
APC	No
Outer connector	LC-Duplex
Inner connector	LC-Duplex
RAL	9005
Mounting method	482.6 mm (19 inch) mounting
Height (U)	1
Height	44 mm
Width	483 mm
Depth	224 mm
