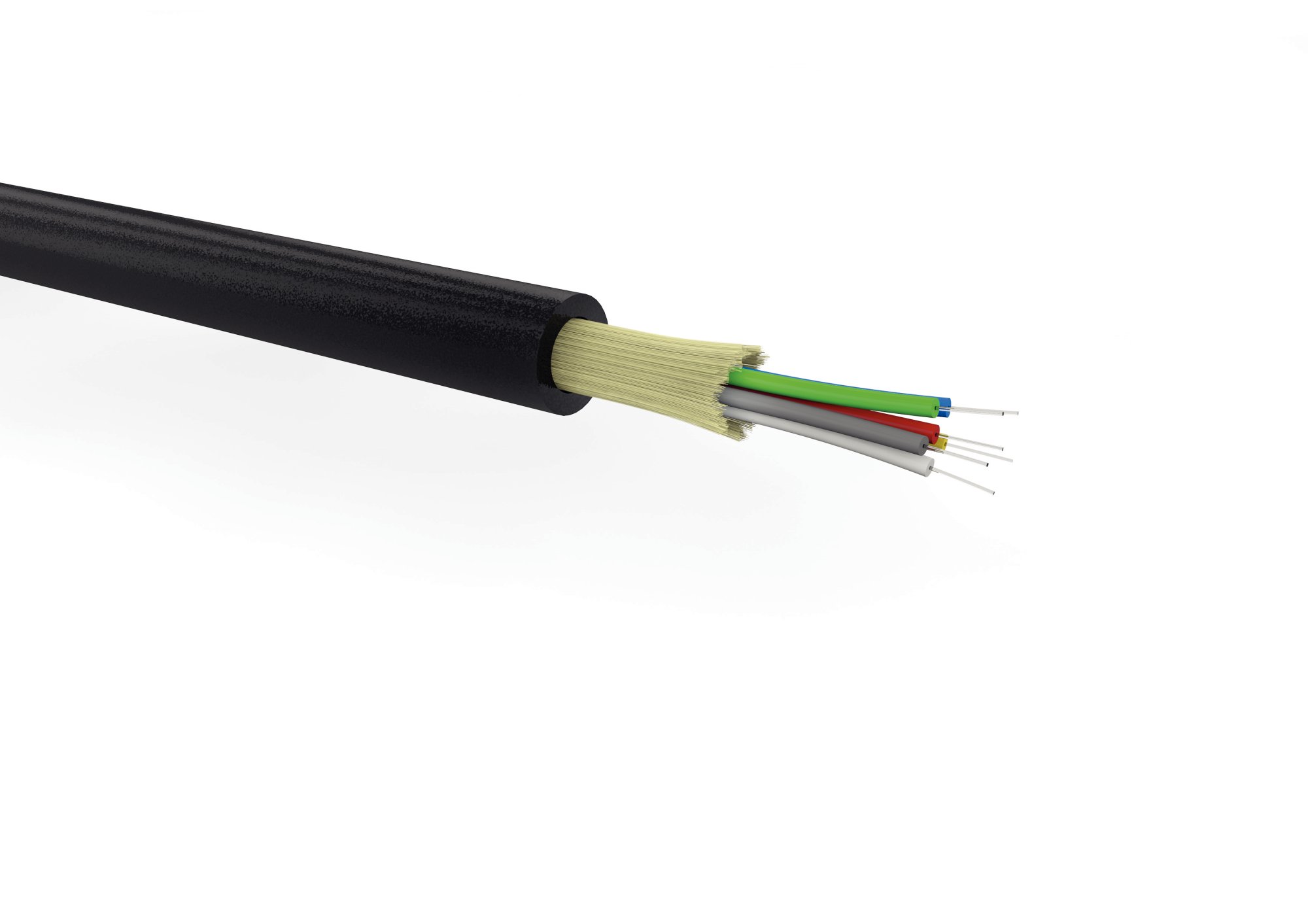

GGM FO4B3PUST
4 FO OM3 50/125µm indoor/outdoor tight buffer cable + aramid yarns, PUR jacket
Optical cable with a tight structure, for indoor/outdoor use, with a black polyurethane (PUR) sheath, anti-UV. Its PUR sheath gives it high mechanical stability (elasticity) as well as excellent resistance to oils, petroleum and acids.
Read more
Optical cable with a tight structure, for indoor/outdoor use, with a black polyurethane (PUR) sheath, anti-UV.
Its PUR sheath gives it high mechanical stability (elasticity) as well as excellent resistance to oils, petroleum and acids.
Its PUR sheath gives it high mechanical stability (elasticity) as well as excellent resistance to oils, petroleum and acids.
| Installation | indoor/outdoor |
|---|---|
| Fiber amount | 12 |
| Cable type | 900 µm Tight buffer |
| Reinforcement | Aramid yarns |
| Watertightness | Longitudinal |
| Outer sheath | PUR |
| Fire behavior | IEC 60754-1 (halogen free jacket) |
| Operating temperature | From -40°C to +85°C |
| Operating environment | Indoor / Outdoor |
| Strength member | : Aramid yarns |
| Diameter (mm) | 6 |
| Bending radius - min. static (mm) | 10 |
| Bending radius - min. dynamic (mm) | 15 |
| Crush resistance (N) | 6000 |
| Outer jacket colour | Black |
| Cable weight (kg/km) | 32 |
| Packaging | On cut |
| Marking | GGM FO4B3PUST4FO 50/125 OM3 TB PUR |
| Bandwidth @1300 nm | OM3 ≥ 500 MHz/km |
| Bandwidth @850 nm | OM3 ≥ 2000 MHz/km |
| Bandwidth at 1310/1550 nm | N/A |
| Attenuation | At 850nm: om3 ≤ 2.0db/km |
| Fibre count | 4 |
| Structure | Tight |
| Fibre optic category | Multi mode 50/125 |
| Category | OM3 |
| Strain relief | No |
| Rodent protected | No |
| Armouring/reinforcement | Other |
| Material armouring | Other |
| Jacket type | Polyurethane (PUR) |
| Jacket colour | Black |
| Longitudinal water blocking cable | Yes |
| Radial water blocking cable | No |
| Metal free cable | Yes |
| Cable geometry | Round |
| Flame retardant according to IEC 60332-1-2 | Yes |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) | No |
| Flame retardant according to IEC 60332-3-22 (Cat A) | No |
| Flame retardant according to IEC 60332-3-23 (Cat B) | No |
| Flame retardant according to IEC 60332-3-24 (Cat C) | No |
| Flame retardant according to IEC 60332-3-25 (Cat D) | No |
| Low smoke according to EN IEC 61034-2 | Yes |
| Reaction-to-fire according to EN 13501-6 | Class : None |
| Oil resistant | Yes |
| Resistant to chemicals | Yes |
| UV resistant | Yes |
| Cable OD | 6 mm |
| Min. permitted bending radius, stationary application/permanent installation | 60 mm |
| Max. tensile strength during installation | 25 kN |
| Suitable for underground installation | No |
| Blowed cable | Yes |
| Weight | 32 kg/km |
