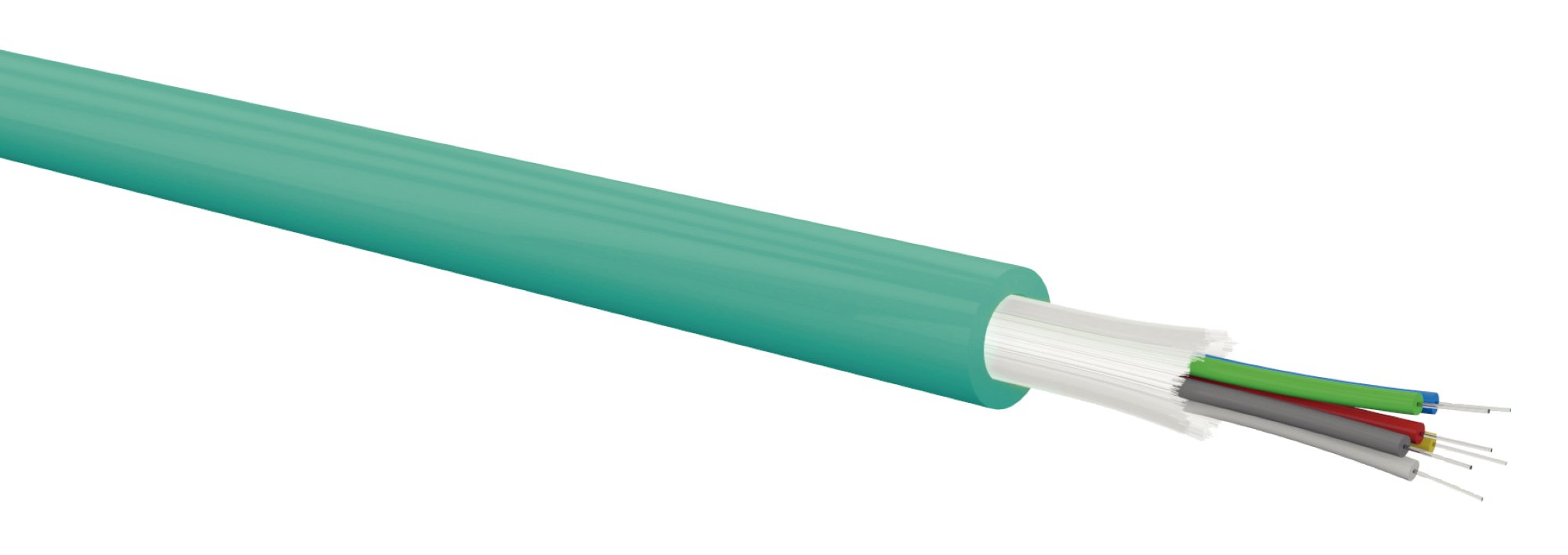

GGM FO4B3FRST
4FO OM3 indoor/outdoor tight buffer cable with glass yarns LSZH Cca outer jacket
Fibres with tight structure 900 µm (allows direct on-site connections, without spreaders), LSZH sheath with Cca fire behaviour.
Read more
Fibres with tight structure 900 µm (allows direct on-site connections, without spreaders), LSZH sheath with Cca fire behaviour.
| Cable type | 900 µm Tight buffer |
|---|---|
| Installation | indoor/outdoor |
| Reinforcement | Reinforced glass yarns |
| Watertightness | Dry & longitudinal |
| Jacket | LSOH |
| Euroclass | Cca-s1a, d1, a1 |
| Fiber color code | IEC 60304 |
| Bandwidth @1300 nm | OM3 ≥ 500 MHz/km |
| Bandwidth at 1310/1550 nm | N/A |
| Bandwidth @850 nm | OM3 ≥ 2000 MHz/km |
| Bandwidth at 850 nm emb | OM3 ≥ 2000 MHz/km |
| Bending radius - minimum static (mm) | 60 |
| Bending radius - minimum dynamic (mm) | 90 |
| Cable weight (kg/km) | 73 |
| Packaging | On cut |
| Crush resistance (N) | 3000 |
| Diameter (mm) | 9 |
| Fire behaviour | EN 13501-6 : Cca, s1a, d1, a1 ; EN 50575, EN 50399, EN 60332-1-2 |
| Marking | Métrique (xxxx m) GIGAMEDIA 4FO OM3 50/125 TBW LSZH Cca s1a d1 a1 TB FO CABLE TBC004A SEMAINE/ANNEE N°LOT |
| Attenuation | At 850 nm: om3 ≤ 2.7 db/km |
| Fiber amount | 4 |
| Strength member | : Glass yarns protection against rodent |
| Operating temperature | From -30°C to +70°C |
| Fibre count | 4 |
| Structure | Tight |
| Fibre optic category | Multi mode 50/125 |
| Category | OM3 |
| Strain relief | Yes |
| Rodent protected | Yes |
| Armouring/reinforcement | Other |
| Material armouring | Other |
| Jacket type | Other |
| Specification material outer sheath | Other |
| Jacket colour | Turquoise |
| Longitudinal water blocking cable | Yes |
| Radial water blocking cable | Yes |
| Metal free cable | Yes |
| Cable geometry | Round |
| Flame retardant according to IEC 60332-1-2 | Yes |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) | Yes |
| Flame retardant according to IEC 60332-3-24 (Cat C) | Yes |
| Low smoke according to EN IEC 61034-2 | Yes |
| Halogen free according to EN IEC 60754-1 | Yes |
| Halogen free according to EN IEC 60754-2 | Yes |
| Reaction-to-fire according to EN 13501-6 | Class : Cca |
| Oil resistant | No |
| Resistant to chemicals | No |
| UV resistant | Yes |
| Cable OD | 9 mm |
| Min. permitted bending radius, stationary application/permanent installation | 60 mm |
| Max. tensile strength during installation | 1500 kN |
| Suitable for underground installation | No |
| Blowed cable | No |
| Weight | 73 kg/km |
